FRONT FORK REFER TO FIG.33A(G-10) FOR DR350SHN/SHP/SHR

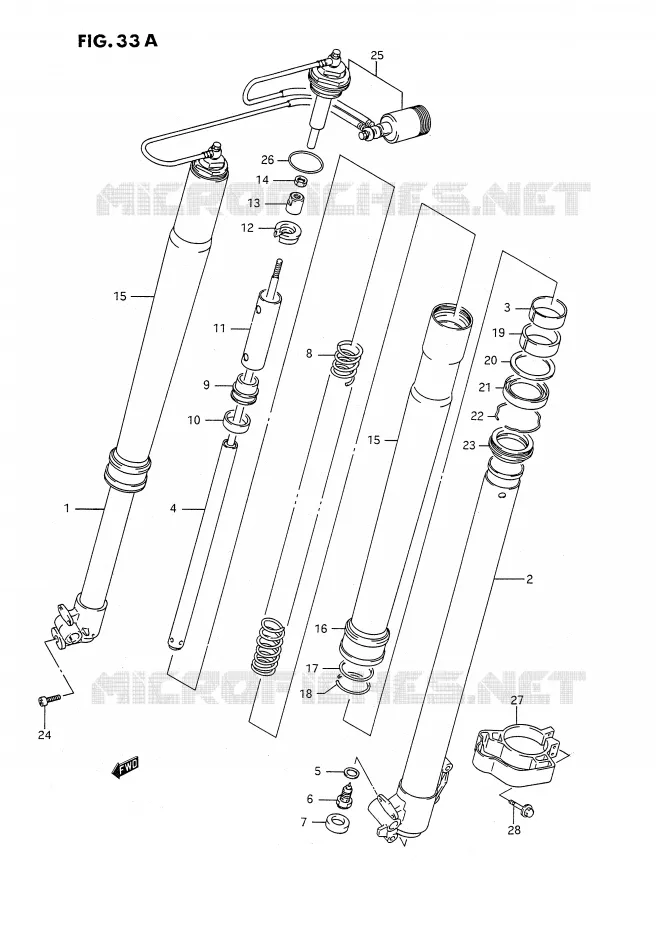

FRONT FORK (DR350SHN / SHP / SHR) FOR SUZUKI DR 350 1994

FRONT FORK (DR350SR E22,E24) COLOR:C3K=30H(WHITE),0NF(BLUE)

TUBE, INNER RH

51110-15D50-000 5111015D50000

Not available

TUBE, INNER LH

51120-15D50-000 5112015D50000

Not available

51121-44H00
BUSH, SLIDE

51121-48B31-000 5112148B31000

Not available

DAMPER

51190-14E00-000 5119014E00000

Not available

GASKET

51148-08D00-000 5114808D00000

$12,97

Unit Price

BOLT, CTR
CENTER BOLT

51170-08D00-000 5117008D00000

$143,97

Unit Price

DISCONTINUE
CAP

51189-08D00-000 5118908D00000

Not available

SPRING, MAIN

51171-14E00-000 5117114E00000

Not available

GUIDE, SPRING

51175-15D70-000 5117515D70000

Not available

BUSH, SLIDE

51197-08D00-000 5119708D00000

Not available

SPACER, SPRING

51176-15D70-000 5117615D70000

Not available

SEAT, SPRING STOPPER

51186-15D70-000 5118615D70000

Not available

NUT, LOWER

51185-15D50-000 5118515D50000

Not available

NUT, UPPER

51129-15D50-000 5112915D50000

Not available

TUBE, OUTER

51131-15D50-000 5113115D50000

Not available

TUBE, OUTER

51131-15D60-000 5113115D60000

Not available

CASE, OIL SEAL

51135-08D00-000 5113508D00000

Not available

DISCONTINUE
O RING

51117-08D00-000 5111708D00000

Not available

DISCONTINUE
RING, SNAP

51156-08D00-000 5115608D00000

Not available

BUSH, GUIDE

51152-08D00-000 5115208D00000

$33,97

Unit Price

SPACER, SEAL

51168-38B00-000 5116838B00000

$8,97

Unit Price

SEAL, OIL

51153-08D00-000 5115308D00000

$20,97

Unit Price

CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000 5155638B00000

$10,97

Unit Price

DUST SEAL

51173-15D00-000 5117315D00000

$28,97

Unit Price

BOLT, AXLE HOLDER

51138-08D00-000 5113808D00000

Not available

JACK ASSY

51180-15D50-000 5118015D50000

Not available

O RING, JACK

51187-15D50-000 5118715D50000

$7,97

Unit Price

GUIDE, FRONT FORK PROTECTOR

51210-08D00-000 5121008D00000

Not available

BOLT
BOLT (L:27)

09103-05012-000 0910305012000

$3,97

Unit Price

99x

DAMPER ASSY, RH

51103-14E00-000 5110314E00000

Not available

99x

DAMPER ASSY, LH

51104-14E00-000 5110414E00000

Not available

99x

DAMPER ASSY, RH

51103-14E10-000 5110314E10000

Not available

99x

DAMPER ASSY, LH

51104-14E10-000 5110414E10000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (DR350SHN/SHP/SHR) of your Suzuki of DR. Let us know if you have any questions.
