Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TIMING

CARBURETOR (MODELE R / S / T) FOR SUZUKI DR 350 1995

AIR FILTER (MODELE R / S / T)

Item numbers

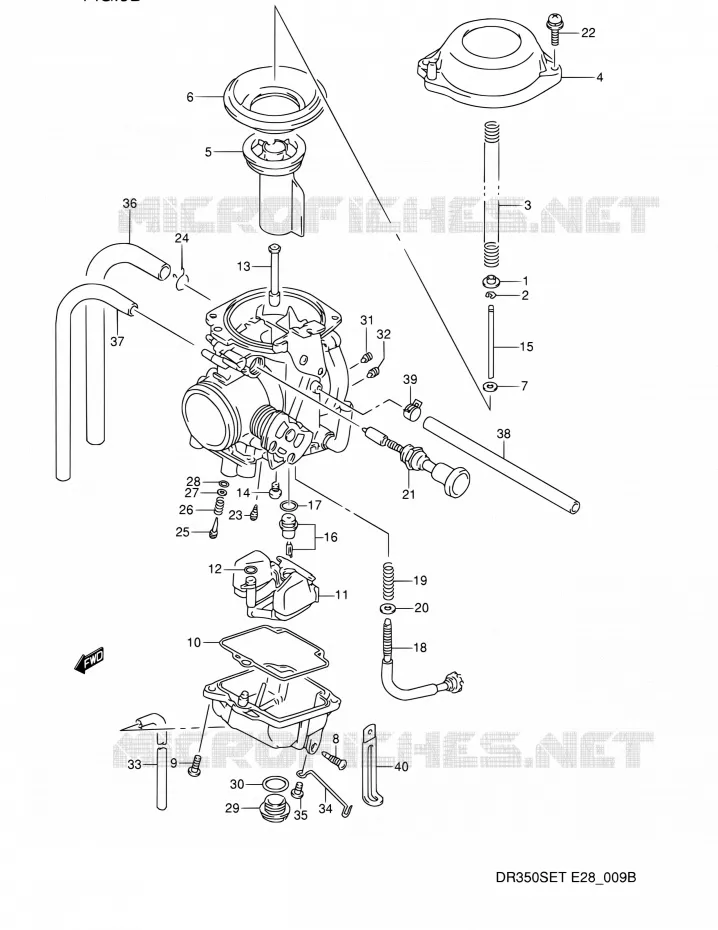

CARBURETOR (MODELE R/S/T) Suzuki MOTO 350 DR 1995 DR350SE S (E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
.RING
.RING

13382-42A00-000   1338242A00000

1338242A00000

Unit Price

2
E RING

13394-01D00-000  

13394-40D20-000
 1339401D00000

Unit Price

3
.SPRING

13417-44B00-000   1341744B00000

1341744B00000

Unit Price

4
.COVER, DIAPHRAGM

13502-01D00-000   1350201D00000

1350201D00000

Unit Price

5
.VALVE, PISTON

13551-44B10-000   1355144B10000

1355144B10000

Unit Price

6
DIAPHRAGM

13507-44B00-000  

13507-44B01-000
 1350744B00000

Unit Price

7
.RING
.RING

13387-47010-000   1338747010000

1338747010000

Unit Price

8
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

9
.SCREW
.SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

10
GASKET,FLOAT CAHMBER<br />.GASKET, FLOAT CHAMBER
GASKET, FLOAT CAHMBER
.GASKET, FLOAT CHAMBER

13258-44B00-000   1325844B00000

1325844B00000

Unit Price

11
.FLOAT ASSY

13240-17E10-000   1324017E10000

1324017E10000

Unit Price

12
.O RING
.O RING

13374-46710-000   1337446710000

1337446710000

Unit Price

13
JET, NEEDLE
.JET, NEEDLE (O-5)

09494-00673-000   0949400673000

0949400673000

Unit Price

14
JET, MAIN
.JET, MAIN (127.5)

09491-25011-000   0949125011000

0949125011000

Unit Price

15
DISCONTINUE
.NEEDLE, JET (5CD56-4)

13383-14D10-000   1338314D10000

1338314D10000
Not available
16
VALVE ASSY, NEEDLE

13370-44B00-000  

13370-02D01-000
 1337044B00000

Unit Price

17
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

18
.ADJUSTER

13267-15E00-000   1326715E00000

1326715E00000

Unit Price

19
SPRING,THROTTLE SCREW<br />.SPRING
SPRING, THROTTLE SCREW
.SPRING

13268-31210-000   1326831210000

1326831210000

Unit Price

20
WASHER, STARTER SHAFT
.WASHER

13615-43010-000   1361543010000

1361543010000

Unit Price

21
PLUNGER ASSY

13411-14E00-000  

13411-14E10-000
 1341114E00000

Unit Price

22
SCREW

02112-75163-000  

02112-7516A-000
 0211275163000

Unit Price

23
JET,PILOT<br />.JET, PILOT (37.5)
JET, PILOT
.JET, PILOT (37.5)

09492-35010-000   0949235010000

0949235010000

Unit Price

24
.CLIP

09401-10410-000   0940110410000

0940110410000

Unit Price

25
SCREW,PILOT<br />.SCREW, PILOT (1.3/4)
SCREW, PILOT
.SCREW, PILOT (1.3/4)

13279-47070-000   1327947070000

1327947070000

Unit Price

26
.SPRING
.SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

27
.WASHER
.WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

28
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

29
.CAP, DRAIN

13247-32210-000   1324732210000

1324732210000

Unit Price

30
O RING, DRAIN PLUG
.O RING

13249-41310-000   1324941310000

1324941310000

Unit Price

31
JET, AIR
.JET, AIR (1.2)

09493-24007-000   0949324007000

0949324007000

Unit Price

32
.JET, AIR (0.6)
.JET, AIR (0.6)

09493-60004-000   0949360004000

0949360004000

Unit Price

33
HOSE
HOSE

09352-30503-600  

09352-30504-600
 0935230503600

Unit Price

34
CLIP
.CLAMP

13671-15D60-000   1367115D60000

1367115D60000

Unit Price

35
SCREW

02112-05087-000  

02112-0508A-000
 0211205087000

Unit Price

36
HOSE(7X11X600)
HOSE(7X11X600)

09354-70113-600  

09355-70132-600
 0935470113600

Unit Price

37
HOSE, 4.5X8.5X600

09354-45853-600  

09355-45001-600
 0935445853600

Unit Price

38
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

39
.CLIP

13671-14E00-000   1367114E00000

1367114E00000

Unit Price

40
CLAMP(L:65)

09404-06402-000  

09404-06039-000
 0940406402000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (MODELE R/S/T) of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 350 DR 1995

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 350 DR 1995

Select your Suzuki 1995 model

350 DR 1995 DR350SE S (E03,E28,E33)

Suzuki DR

Displacement: 350 cc
Year: 1995
Model code DR350SE S (E03,E28,E33)
