Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

MUFFLER

OIL PUMP FOR SUZUKI DR 350 1995

OIL HOSE

Item numbers

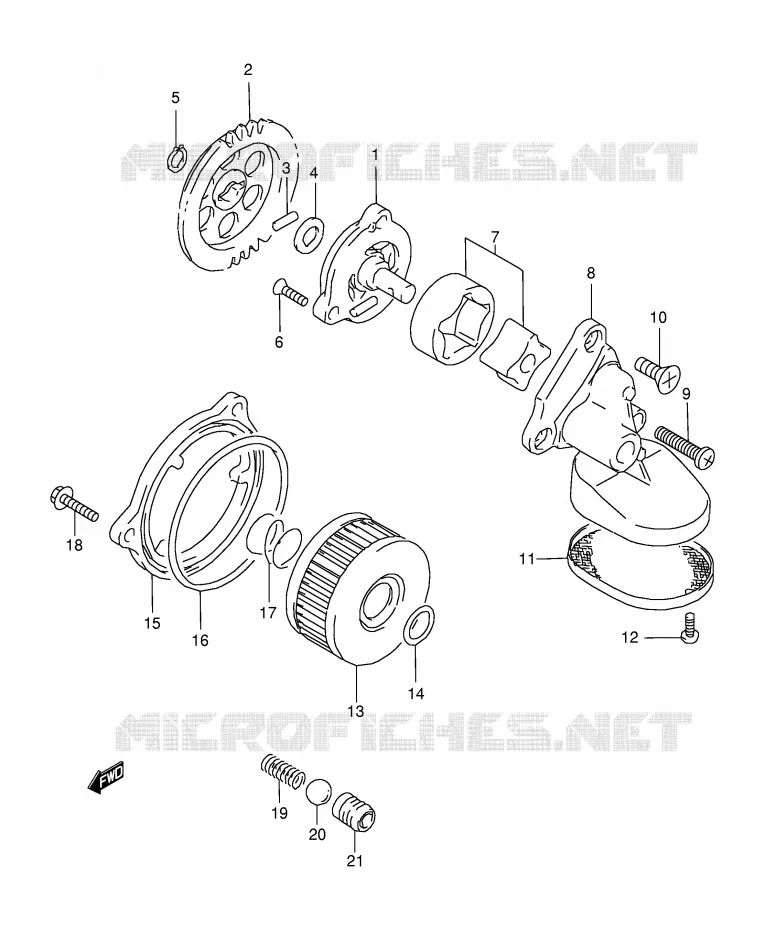

OIL PUMP Suzuki MOTO 350 DR 1995 DR350SES(E2)
1
2
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
PUMP ASSY, ENGINE OIL NO.1

16400-14D01-000   1640014D01000

1640014D01000

Unit Price

2
GEAR, OIL PUMP DRIVEN(NT:35)

16331-14D01-000  

16331-14D02-000
 1633114D01000

Unit Price

2
GEAR, DRIVEN (NT:35)

16331-47D00-000   1633147D00000

1633147D00000
Not available
3
GR SHIFT CAM DR PIN<br />PIN
GR SHIFT CAM DR PIN
PIN

09261-04009-000   0926104009000

0926104009000

Unit Price

4
SHIM
WASHER

08221-10185-000   0822110185000

0822110185000

Unit Price

4
SHIM,10X18X0.5<br />WASHER
SHIM, 10X18X0.5
WASHER

09181-10158-000   0918110158000

0918110158000

Unit Price

5
CIRCLIP

08331-31106-000  

08331-31109-000
 0833131106000

Unit Price

6
SCREW

02122-06163-000  

02122-0616B-000
 0212206163000

Unit Price

7
ROTOR SET, OIL PUMP, NO.2
ROTOR SET, OIL PUMP

16410-14D00-000   1641014D00000

1641014D00000

Unit Price

8
COVER, OIL PUMP NO.2

16431-14D01-000   1643114D01000

1643114D01000

Unit Price

9
SCREW

02112-06303-000  

02112-0630A-000
 0211206303000

Unit Price

10
SCREW

02122-06163-000  

02122-0616B-000
 0212206163000

Unit Price

11
STRAINER, OIL PUMP NO.2
STRAINER, ENGINE OIL

16520-14D00-000   1652014D00000

1652014D00000

Unit Price

12
SCREW

02112-05103-000  

02112-0510B-000
 0211205103000

Unit Price

13
FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-38240-000   1651038240000

1651038240000
Not available
14
O RING (D:2.4,ID:15.8)
O RING (D:2.4, ID:15.8)

09280-15007-000   0928015007000

0928015007000
Not available
15
CAP, OIL FILTER

16512-14D00-000   1651214D00000

1651214D00000

Unit Price

16
O RING OIL FLT CAP
O RING (D:2.4, ID:73)

09280-72001-000   0928072001000

0928072001000
Not available
17
SPRING

09440-21006-000   0944021006000

0944021006000

Unit Price

18
BOLT

01547-06203-000  

01547-0620B-000
 0154706203000

Unit Price

19
SPRING

09440-07073-000   0944007073000

0944007073000

Unit Price

20
BALL

06111-12004-000   0611112004000

0611112004000

Unit Price

21
SEAT, OIL CHECK VALVE

16442-14D00-000   1644214D00000

1644214D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 350 DR 1995

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 350 DR 1995

Select your Suzuki 1995 model

350 DR 1995 DR350SES(E2)

Suzuki DR

Displacement: 350 cc
Year: 1995
Model code DR350SES(E2)
