REAR FENDER (MODEL R / S / T / V / W) REFER TO FIG.42A(H-4) FOR MODEL X

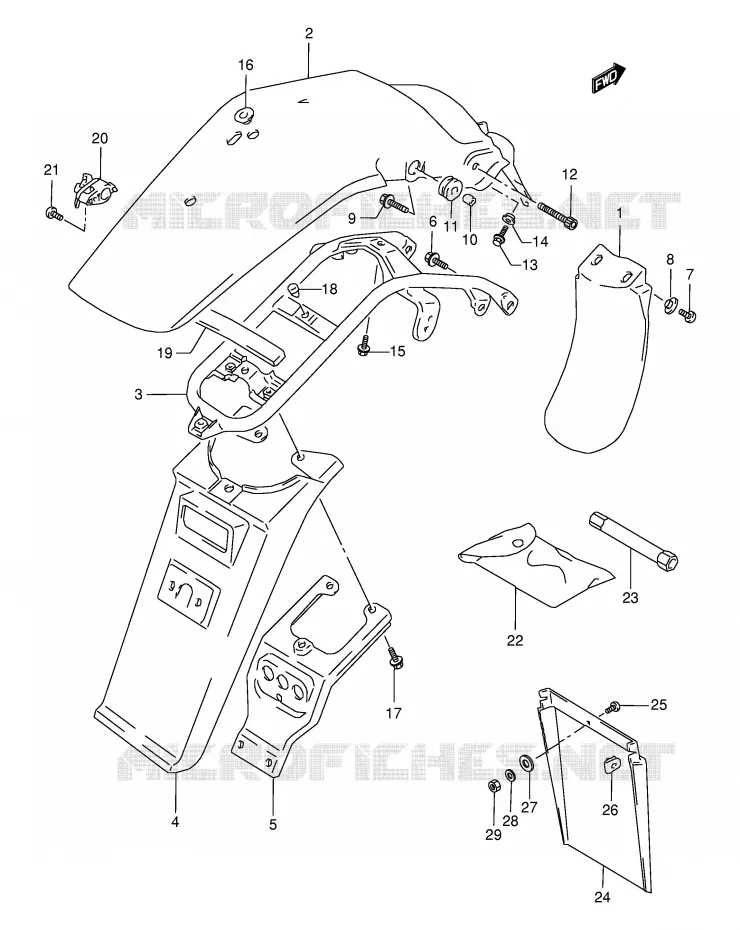

REAR FENDER (MODEL X) FOR SUZUKI DR 350 1997

LABEL (MODEL R / S) REFER TO FIG.43A(H-7) FOR MODEL T/V/W/X

Item numbers

DISCONTINUE
BODY, REAR FENDER, FRONT

63112-14D00-000 6311214D00000

Not available

BODY, FENDER, REAR (BLACK)

63113-14D03-019 6311314D03019

Not available

DISCONTINUE
BODY, FENDER, REAR (WHITE)

63113-14D03-30H 6311314D0330H

Not available

BODY, FENDER, REAR (BLACK)

63113-14D33-019 6311314D33019

Not available

BODY, FENDER, REAR (WHITE)

63113-14D33-30H 6311314D3330H

Not available

DISCONTINUE
REINFORCEMENT, REAR FENDER

63120-14D11-000 6312014D11000

Not available

REINFORCEMENT, REAR FENDER

63120-14D30-000 6312014D30000

Not available

DISCONTINUE
EXTENSION, REAR FENDER

63311-03D01-000 6331103D01000

Not available

EXTENSION, REAR FENDER

63311-03D11-000 6331103D11000

Not available

EXTENSION, REAR FENDER

63311-03D30-000 6331103D30000

Not available

DISCONTINUE
REINFORCEMENT, EXTENSION

63320-03D03-000 6332003D03000

Not available

BOLT(8X12)

09103-08275-000

09103-08382-000

$5,97

Unit Price

SCREW

02142-06123-000

02142-0612B-000

$2,97

Unit Price

WASHER

09169-06045-000 0916906045000

$2,97

Unit Price

BOLT, CENTER

09103-08292-000 0910308292000

Not available

SPACER, 8.5X12X7
SPACER

09180-08187-000 0918008187000

$4,97

Unit Price

CUSHION(11.8X25X7.5)

09320-12011-000

09320-12090-000

$2,97

Unit Price

BOLT
BOLT, REAR FRONT

09106-08105-000 0910608105000

$5,97

Unit Price

01550-0616A
BOLT, REAR

01550-06163-000

Not available

DISCONTINUE
WASHER

09169-06038-000 0916906038000

Not available

BOLT

01580-08163-000

01580-0816A-000

$3,97

Unit Price

WASHER

09160-14059-000 0916014059000

Not available

BOLT

01580-06163-000

01580-0616A-000

$3,97

Unit Price

CUSHION, LICENCE PLAT

09321-06013-000

09321-06036-000

$3,97

Unit Price

DISCONTINUE
CUSHION, REAR FENDER

63191-44A00-000 6319144A00000

Not available

LOCK SET, HELMET

95700-03810-000

Not available

SCREW

02112-05123-000

02112-0512A-000

$2,97

Unit Price

09800-21084
TOOL ASSY

09800-21034-000

Not available

SPANNER, BOX 16

09816-00100-000 0981600100000

$14,97

Unit Price

MUD GUARD, REAR FENDER

63331-03D00-000 6333103D00000

Not available

MUD GUARD, REAR FENDER

63331-03D30-000 6333103D30000

Not available

SCREW

02142-05123-000

02142-0512A-000

$2,97

Unit Price

NUT INST CENTER

09148-05021-000

09148-05013-000

$2,97

Unit Price

WASHER(5.5X16X1.2)
WASHER

09160-05037-000 0916005037000

$2,97

Unit Price

WASHER, LOCK

08321-01053-000

08321-0105A-000

$2,97

Unit Price

NUT

09140-05006-000 0914005006000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER (MODEL X) of your Suzuki of DR. Let us know if you have any questions.
