WIRING HARNESS REFER TO FIG.26A(E-13) FOR MODEL W/X E24

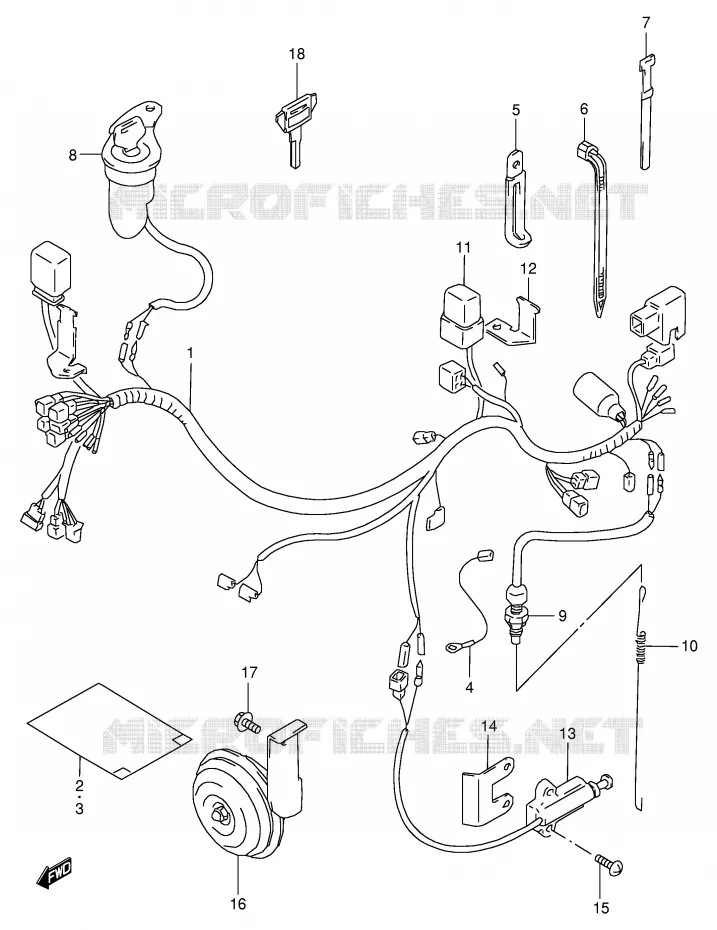

WIRING HARNESS (MODEL W / X,E24) FOR SUZUKI DR 350 1997

SWITCHES (MODEL W / X,E24)

Item numbers

HARNESS, WIRING

36610-15DB0-000 3661015DB0000

Not available

DISCONTINUE
COVER, WIRE HARNESS

36619-15D11-000 3661915D11000

Not available

COVER, WIRING HARNESS

36618-15D20-000

36618-15D21-000

$17,97

Unit Price

WIRE, REGULATOR EARTH LEAD
LEAD WIRE, IGNITION

36851-05D00-000 3685105D00000

$8,97

Unit Price

CLAMP(L:65)

09404-06432-000

09404-06039-000

$3,97

Unit Price

CLAMP
CLAMP (L:33)

09407-03401-000 0940703401000

$5,97

Unit Price

BAND, WIRING HARNESS
CLAMP

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP, WIRING HARNESS

09407-18403-000

09407-18402-000

$3,97

Unit Price

CLAMP
CLAMP (L:235)

09407-25401-000 0940725401000

$8,97

Unit Price

FUEL HOSE CLAMP
CLAMP

09407-12402-000 0940712402000

$5,97

Unit Price

LOCK ASSY, STEERING

37110-15D00-000 3711015D00000

Not available

SWITCH ASSY, STOP LAMP
SWITCH ASSY, STOP

37740-31D00-000 3774031D00000

$32,97

Unit Price

SPRING

09443-06080-000 0944306080000

$10,97

Unit Price

RELAY ASSY
RELAY, SIDE STAND

38740-24X50-000 3874024X50000

$43,97

Unit Price

DISCONTINUE
BRACKET, RELAY

36744-14D01-000 3674414D01000

Not available

37840-12X52

37840-12X50-000

Not available

PROTECTOR, SIDE STAND SWITCH
PROTECTOR

37841-14D00-000 3784114D00000

$12,97

Unit Price

SCREW

02142-06203-000

02142-0620B-000

$2,97

Unit Price

HORN ASSY

38500-15D10-000 3850015D10000

Not available

01550-0616A
BOLT

01550-06163-000

Not available

KEY, BLANK(TYPE:C)
KEY, BLANK (TYPE C)

37146-03A00-000 3714603A00000

$14,97

Unit Price

KEY, BLANK(TYPE:D)
KEY, BLANK (TYPE D)

37146-03A10-000 3714603A10000

$15,97

Unit Price

KEY, BLANK(TYPE:E)
KEY, BLANK (TYPE E)

37146-03A20-000 3714603A20000

$14,97

Unit Price

KEY, BLANK(TYPE:F)
KEY, BLANK (TYPE F)

37146-03A30-000 3714603A30000

$15,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (MODEL W/X,E24) of your Suzuki of DR. Let us know if you have any questions.
