CARBURETOR (E3,E28) FOR SUZUKI DR 350 1997

CARBURETOR (E33)

CARBURETOR (E3,E28) Suzuki MOTO 350 DR 1997 DR350V(E3/E28)
1
CAP, TOP

13261-27A00-000   1326127A00000

1326127A00000
Not available
2
GASKET,CARBURETOR TOP<br />GASKET
GASKET, CARBURETOR TOP
GASKET

13266-27A00-000   1326627A00000

1326627A00000

Unit Price

3
WASHER, LOCK

08321-01053-000  

08321-0105A-000
 0832101053000

Unit Price

4
BOLT

01500-05163-000  

01500-0516B-000
 0150005163000

Unit Price

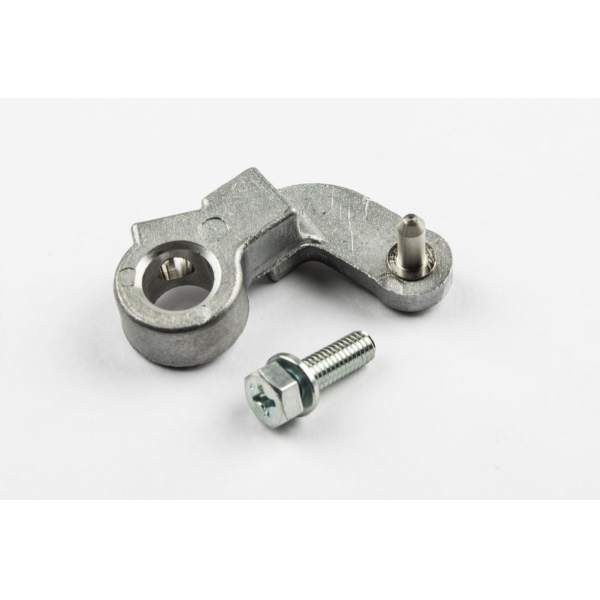

5
LEVER SET,THROTTLE<br />LEVER, THROTTLE
LEVER SET, THROTTLE
LEVER, THROTTLE

13541-13E00-000   1354113E00000

1354113E00000

Unit Price

6
WASHER

13574-38200-000  

13575-38200-000
 1357438200000

Unit Price

7
PLATE
PLATE

13447-14A00-000   1344714A00000

1344714A00000

Unit Price

8
SCREW

02112-34103-000  

02112-3410A-000
 0211234103000

Unit Price

9
DISCONTINUE<br />SPRING
DISCONTINUE
SPRING

13446-14A00-000   1344614A00000

1344614A00000
Not available
10
CONNECTOR

13398-27A02-000   1339827A02000

1339827A02000

Unit Price

11
SCREW

02112-03123-000  

02112-0312B-000
 0211203123000

Unit Price

12
GASKET<br />WASHER
GASKET
WASHER

13445-14A00-000   1344514A00000

1344514A00000

Unit Price

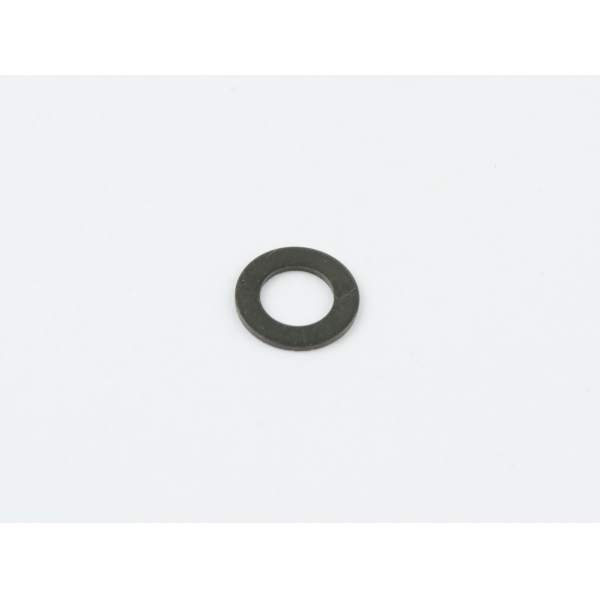

13
WASHER
WASHER

09160-04024-000   0916004024000

0916004024000

Unit Price

13
DISCONTINUED

09160-04021-000   0916004021000

0916004021000
Not available
14
E RING
E RING

13415-38300-000   1341538300000

1341538300000

Unit Price

15
DISCONTINUE
VALVE, PISTON (CA:1.5)

13551-14D00-000   1355114D00000

1355114D00000
Not available
16
WASHER, JET NEEDLE
WASHER

13382-47010-000   1338247010000

1338247010000

Unit Price

17
CLIP<br />E RING
CLIP
E RING

13394-10010-000   1339410010000

1339410010000

Unit Price

18
DISCONTINUE
NEEDLE, JET (5FP96-3)

13383-14D00-000   1338314D00000

1338314D00000
Not available
19
DISCONTINUE
JET, NEEDLE (P-8)

09494-00681-000   0949400681000

0949400681000
Not available
20
SPRING

13494-14D00-000   1349414D00000

1349414D00000

Unit Price

21
DISCONTINUE
PLUNGER ASSY

13411-14D00-000   1341114D00000

1341114D00000
Not available
22
O RING
O RING

13374-46710-000   1337446710000

1337446710000

Unit Price

23
SCREW,PILOT<br />SCREW, PILOT (1 1/8)
SCREW, PILOT
SCREW, PILOT (1 1/8)

13279-47070-000   1327947070000

1327947070000

Unit Price

24
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

25
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

26
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

27
DISCONTINUE
JET, PILOT (37.5)

09492-35017-000   0949235017000

0949235017000
Not available
28
RING,MAIN JET FIXING<br />RING
RING, MAIN JET FIXING
RING

13331-13A00-000   1333113A00000

1333113A00000

Unit Price

29
JET, MAIN
JET, MAIN (127.5)

09491-25011-000   0949125011000

0949125011000

Unit Price

30
VALVE ASSY, NEEDLE

13370-37100-000  

13370-05530-000
 1337037100000

Unit Price

31
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

32
FILTER

13376-84110-000  

13376-19F00-000
 1337684110000

Unit Price

33
SCREW
SCREW

13602-43410-000   1360243410000

1360243410000

Unit Price

34
FLOAT<br />FLOAT ASSY
FLOAT
FLOAT ASSY

13250-28A00-000   1325028A00000

1325028A00000

Unit Price

35
PIN, FLOAT
PIN, FLOAT

13254-92311-000   1325492311000

1325492311000

Unit Price

36
O RING,FLOAT CHAMBER<br />O RING
O RING, FLOAT CHAMBER
O RING

13251-27A00-000   1325127A00000

1325127A00000

Unit Price

37
HOSE
HOSE

09352-30503-600  

09352-30504-600
 0935230503600

Unit Price

38
DISCONTINUE
ADJUSTER

13267-14D00-000   1326714D00000

1326714D00000
Not available
39
RING

13331-13E00-000   1333113E00000

1333113E00000

Unit Price

40
DISCONTINUE
SPRING

13268-14D00-000   1326814D00000

1326814D00000
Not available
41
SCREW

02112-04163-000  

02112-0416A-000
 0211204163000

Unit Price

41
SCREW<br />SCREW (4X14)
SCREW
SCREW (4X14)

13601-04148-000   1360104148000

1360104148000

Unit Price

42
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

43
BOOT<br />CAP
BOOT
CAP

13499-44500-000   1349944500000

1349944500000

Unit Price

44
DISCONTINUE
ROD

13487-14D00-000   1348714D00000

1348714D00000
Not available
45
PLUNGER
PLUNGER

13493-27A00-000   1349327A00000

1349327A00000

Unit Price

46
SPRING
SPRING

13271-09400-000   1327109400000

1327109400000

Unit Price

47
BOLT
BOLT

13613-14A00-000   1361314A00000

1361314A00000

Unit Price

48
LEVER
LEVER

13490-14A00-000   1349014A00000

1349014A00000

Unit Price

49
HOSE(5X9X600)
HOSE(5X9X600)

09352-50903-600  

09352-50006-600
 0935250903600

Unit Price

50
HOSE(5X9X600)
HOSE(5X9X600)

09352-50903-600  

09352-50006-600
 0935250903600

Unit Price

51
DISCONTINUE
CLIP

13692-19C00-000   1369219C00000

1369219C00000
Not available
52
JET, MAIN AIR (0.7)
JET, MAIN AIR (0.7)

09493-70009-000   0949370009000

0949370009000
Not available
53
JET, PILOT AIR (1.1)
JET, PILOT AIR (1.1)

09493-22005-000   0949322005000

0949322005000
Not available
54
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

99x
DISCONTINUE
CARBURETOR ASSY

13200-14D03-000   1320014D03000

1320014D03000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (E3,E28) of your Suzuki of DR. Let us know if you have any questions.
