Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

IGNITION (MODEL W / X, E24)

ELECTRICAL FOR SUZUKI DR 350 1998

SPEEDOMETER (MODEL W / X, E24)

Item numbers

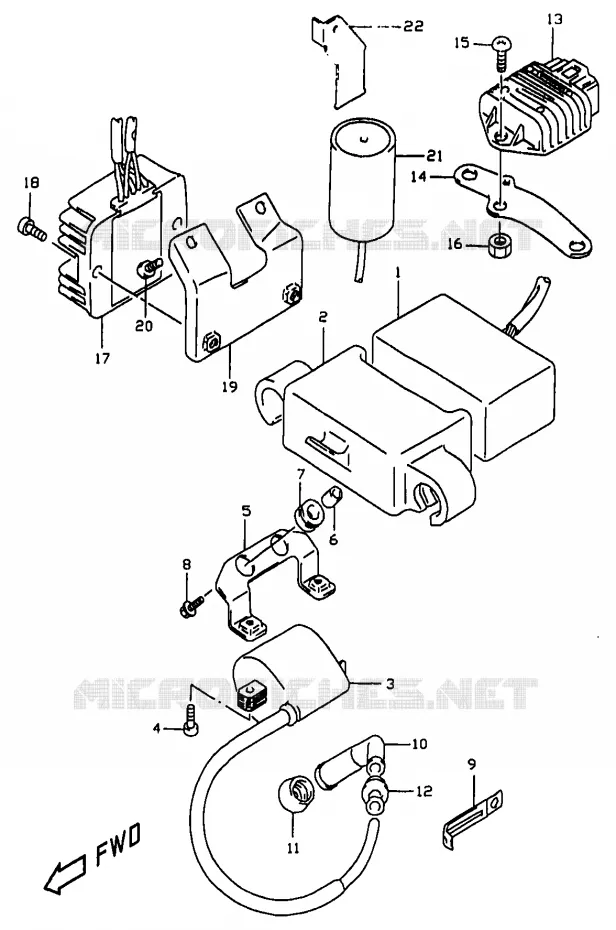

ELECTRICAL Suzuki MOTO 350 DR 1998 DR350W(V/W/X)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
DISCONTINUE
CDI UNIT

32900-14D30-000   3290014D30000

3290014D30000
Not available
1
CDI UNIT

32900-14D70-000   3290014D70000

3290014D70000
Not available
2
DISCONTINUE
CUSHION

32980-14D00-000   3298014D00000

3298014D00000
Not available
3
COIL ASSY, IGNITION

33410-14D00-000  

33410-14D01-000
 3341014D00000

Unit Price

4
SCREW

02112-06203-000  

02112-0620A-000
 0211206203000

Unit Price

5
BRACKET, IGNITION COIL

33416-14D00-000   3341614D00000

3341614D00000

Unit Price

6
SPACER (6.5X9X6.7)
SPACER (6.5X9X6.7)

09180-06258-000   0918006258000

0918006258000

Unit Price

7
CUSHION
CUSHION

09320-09036-000   0932009036000

0932009036000
Not available
8
BOLT

01560-06163-000  

01560-0616A-000
 0156006163000

Unit Price

9
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

10
CAP, SPARK PLUG
CAP, SPARK PLUG

33510-43010-000   3351043010000

3351043010000

Unit Price

11
SEAL, SPARK PLUG
SEAL, SPARK PLUG

33541-47D00-000   3354147D00000

3354147D00000

Unit Price

12
SEAL, HIGH TENSION CORD
SEAL, HIGH TENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

13
DISCONTINUE
REGULATOR

32500-14D00-000   3250014D00000

3250014D00000
Not available
14
DISCONTINUE
BRACKET, REGULATOR

32511-14D00-000   3251114D00000

3251114D00000
Not available
15
SCREW

02142-06123-000  

02142-0612B-000
 0214206123000

Unit Price

16
08310-0006A
NUT

08310-00063-000  

0831000063000
Not available
17
RECTIIFIER ASSY

32800-14D00-000   3280014D00000

3280014D00000
Not available
18
SCREW

02112-06163-000  

02112-0616A-000
 0211206163000

Unit Price

19
DISCONTINUE
BRACKET, RECTIFIER

32831-14D03-000   3283114D03000

3283114D03000
Not available
20
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
21
CONDENSER ASSY

33640-08D00-000   3364008D00000

3364008D00000

Unit Price

22
BRACKET, CONDENSER

33641-44E00-000   3364144E00000

3364144E00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 350 DR 1998
