SWINGARM REFER TO FIG.48A(I-3) FOR E24

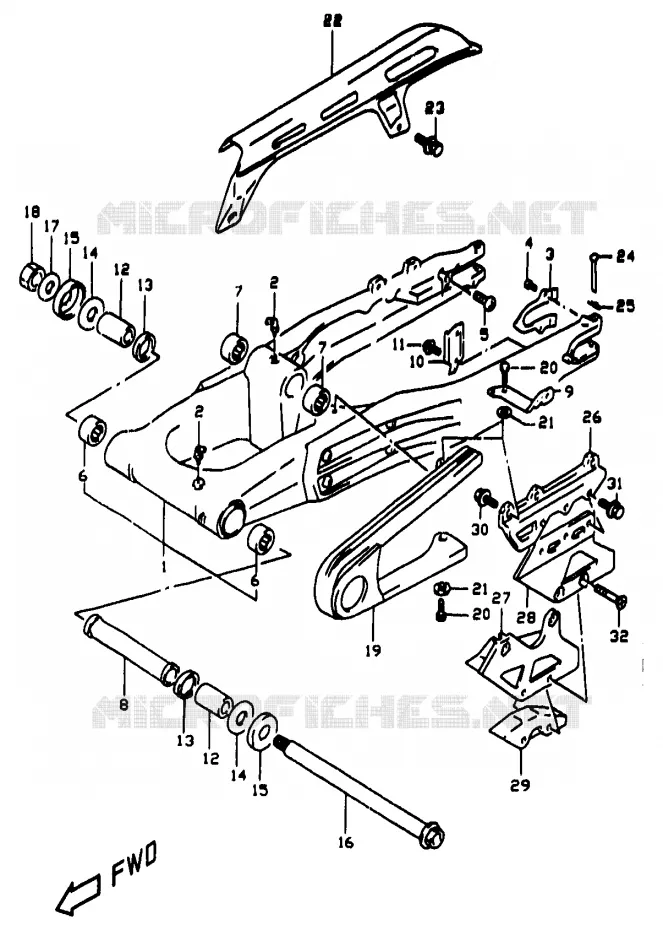

SWINGARM (E24) FOR SUZUKI DR 350 1999

REAR SHOCK ABSORBER

Item numbers

SWINGING ARM ASSY, REAR

61000-14D70-000 6100014D70000

Not available

NIPPLE, GREASE

08351-31008-000

08351-3100A-000

$13,97

Unit Price

DISCONTINUE
PLATE, REAR

61128-14D00-000 6112814D00000

Not available

SCREW, 5X8

09125-05072-000

09125-05072-XC0

$3,97

Unit Price

SCREW (10X21)

09139-10001-000 0913910001000

Not available

R BEARING 22X29X30
BEARING, PIVOT (22X29X30)

09263-22017-000 0926322017000

$30,97

Unit Price

ROLLER BEARING
BEARING, REAR (20X27X23.5)

09263-20071-000 0926320071000

$37,97

Unit Price

SPACER, PIVOT CENTER

61252-14E00-000 6125214E00000

Not available

DISCONTINUE
PLATE, CHAIN CASE FRONT

61142-15D00-000 6114215D00000

Not available

DISCONTINUE
PLATE, CHAIN CASE REAR

61144-15D10-000 6114415D10000

Not available

SCREW, REAR (5X8)

09103-05013-000 0910305013000

Not available

SPACER, SWGARM PIVOT BRG
SPACER, BEARING

61251-14D00-000 6125114D00000

$28,97

Unit Price

SEAL, OIL

09285-22001-000

09285-22006-000

$7,97

Unit Price

THRUST WASHER
WASHER

08211-17341-000 0821117341000

$3,97

Unit Price

COVER, DUST

61262-28C10-000

61262-28C11-000

$14,97

Unit Price

DISCONTINUE
SHAFT, PIVOT

61211-14D00-000 6121114D00000

Not available

WASHER

08322-01163-000

08322-01167-000

$2,97

Unit Price

09159-16007

09159-16007-000

Not available

BUFFER, CHAIN TOUCH DEFENSE

61273-14D00-000

61273-14D01-000

$71,97

Unit Price

BOLT

01500-06163-000

01500-0616A-000

$2,97

Unit Price

WASHER

09169-06057-000 0916906057000

$4,97

Unit Price

DISCONTINUE
GUARD, CHAIN

61310-14A00-000 6131014A00000

Not available

BOLT
BOLT (6X10)

09116-06096-000 0911606096000

$3,97

Unit Price

DISCONTINUE
PIN, REAR AXLE

09200-06065-000 0920006065000

Not available

CLIP
PIN

09385-06012-000 0938506012000

$3,97

Unit Price

DISCONTINUE
BRACKET, CHAIN GUIDE

61154-14D10-000 6115414D10000

Not available

GUIDE, CHAIN

61341-27C20-000 6134127C20000

$71,97

Unit Price

DISCONTINUE
PLATE, CHAIN GUIDE, OUTER

61342-44E00-000 6134244E00000

Not available

DEFENSE, CHAIN GUIDE

61348-27C20-000 6134827C20000

$61,97

Unit Price

01550-0616A
BOLT, BRACKET

01550-06163-000

Not available

BOLT

01547-06203-000

01547-0620B-000

$4,97

Unit Price

SCREW
SCREW, UNDER (6X40)

09126-06013-000 0912606013000

$6,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM (E24) of your Suzuki of DR. Let us know if you have any questions.
