HANDELBAR

SWINGARM FOR SUZUKI BANDIT 400 1991

FRONT FORK

Item numbers

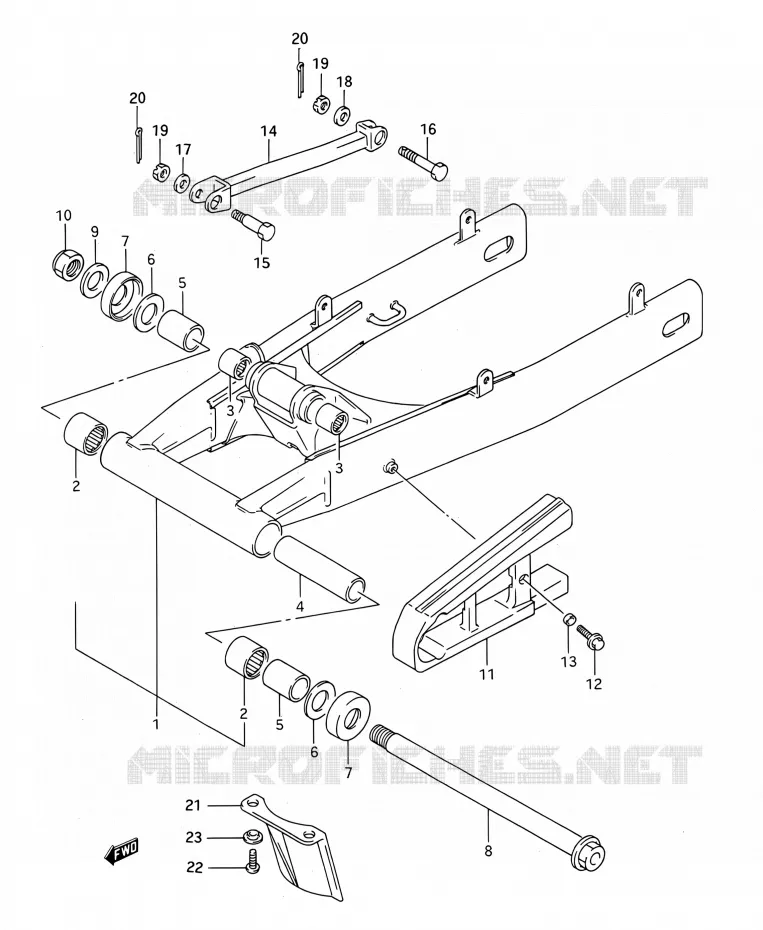

SWINGARM Suzuki MOTO 400 BANDIT 1991 GSF400 M (E03,E28,E33)
1
1
1
2
2
3
3
4
5
5
6
6
7
7
8
9
10
11
12
13
14
14
14
15
16
17
18
19
19
20
20
1
DISCONTINUE

61000-10D01-019  

6100010D01019
Not available
1
DISCONTINUE

61000-10D01-0NH  

6100010D010NH
Not available
2
SWING ARM P BEARING<br />.BEARING (25X33X30)
SWING ARM P BEARING
.BEARING (25X33X30)

09263-25024-000   0926325024000

0926325024000

Unit Price

3
BEARING
BEARING

09263-17037-000  

09263-17053-000
 0926317037000

Unit Price

4
SPACER<br />.SPACER (20.8X27.2X146)
SPACER
.SPACER (20.8X27.2X146)

09180-20108-000   0918020108000

0918020108000

Unit Price

5
SPACER,RR SWGARM PIVOT BEARING<br />SPACER, PIVOT BEARING
SPACER, RR SWGARM PIVOT BEARING
SPACER, PIVOT BEARING

61251-17C00-000   6125117C00000

6125117C00000

Unit Price

6
WASHER<br />THRUST WASHER (T:1)
WASHER
THRUST WASHER (T:1)

08211-20381-000   0821120381000

0821120381000

Unit Price

7
DISCONTINUE
COVER, PIVOT SEAL

61262-10D00-000  

6126210D00000
Not available
8
DISCONTINUE
SHAFT, PIVOT

61211-06C01-000   6121106C01000

6121106C01000
Not available
9
WASHER

08322-11188-000  

08322-0118B-000
 0832211188000

Unit Price

10
NUT 18MM<br />NUT
NUT 18MM
NUT

09159-18007-000   0915918007000

0915918007000

Unit Price

11
DISCONTINUE
BUFFER, CHAIN TOUCH DIFENCE

61273-10D01-000  

6127310D01000
Not available
12
BOLT

09116-06111-000  

09116-06152-000
 0911606111000

Unit Price

13
SPACER(6.5X9X3.8)

09180-06142-000  

09180-06255-000
 0918006142000

Unit Price

14
TORQUELINK,RR<br />TORQUE LINK, REAR (BLACK)
TORQUELINK, RR
TORQUE LINK, REAR (BLACK)

64310-10D00-019   6431010D00019

6431010D00019

Unit Price

15
DISCONTINUE

09111-10011-000  

0911110011000
Not available
16
BOLT(10X35)
BOLT, REAR

09101-10036-000   0910110036000

0910110036000

Unit Price

17
WASHER, 10X20X2.3

09160-10057-000  

09160-10142-000
 0916010057000

Unit Price

18
WASHER, REAR

09160-10069-000   0916010069000

0916010069000
Not available
19
NUT

08314-41108-000  

08314-4010B-000
 0831441108000

Unit Price

20
PIN

04111-20208-000  

04111-2020A-000
 0411120208000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of BANDIT. Let us know if you have any questions.
