Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT CALIPER REFER TO FIG.45A(G-13) FOR E22

FRONT CALIPER (E22) FOR SUZUKI BANDIT 400 1991

FRONT BRAKE HOSE REFER TO FIG.46A(G-15) FOR E22

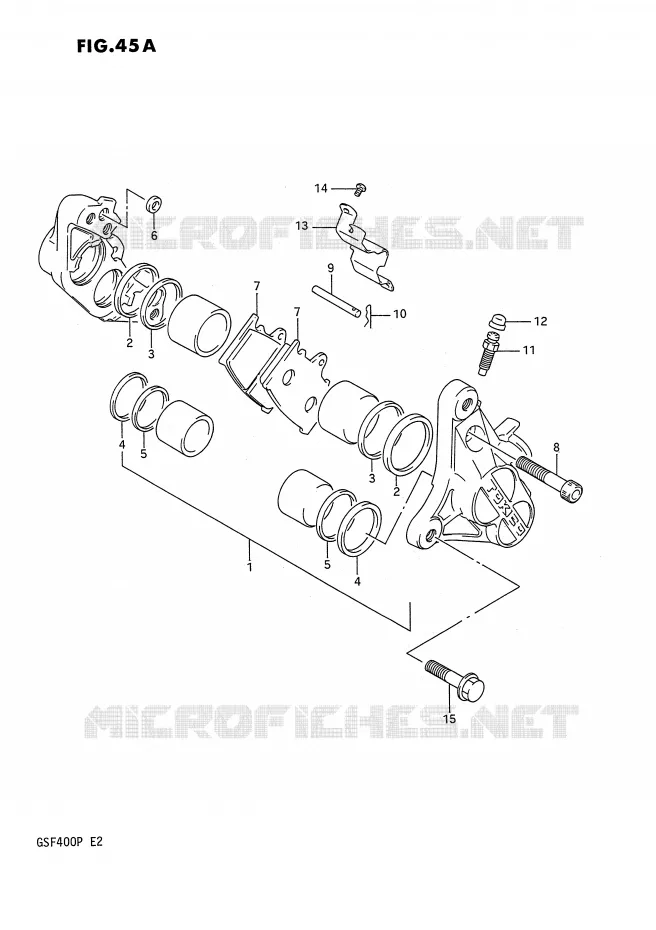

FRONT CALIPER (E22) Suzuki MOTO 400 BANDIT 1991 GSF400M(E2)
1
PISTON SET

59100-32811-000   5910032811000

5910032811000
Not available
2
SEAL, PISTON

59107-39100-000  

59107-35F00-000
 5910739100000

Unit Price

3
SEAL,WIPER<br />BOOT
SEAL, WIPER
BOOT

59108-36A00-000   5910836A00000

5910836A00000

Unit Price

4
SEAL, PISTON

59107-03A00-000  

59307-35F00-000
 5910703A00000

Unit Price

5
SEAL,WIPER<br />SEAL
SEAL, WIPER
SEAL

59108-32C00-000   5910832C00000

5910832C00000

Unit Price

6
SEAL, PISTON<br />SEAL
SEAL, PISTON
SEAL

69107-34200-000   6910734200000

6910734200000

Unit Price

7
PAD

59130-38C00-000   5913038C00000

5913038C00000
Not available
8
BOLT,CALIPER<br />BOLT
BOLT, CALIPER
BOLT

59145-00A00-000   5914500A00000

5914500A00000

Unit Price

9
BRAKE PAD PIN<br />PIN
BRAKE PAD PIN
PIN

69141-45000-000   6914145000000

6914145000000

Unit Price

10
BRAKE PAD PIN CLIP<br />CLIP
BRAKE PAD PIN CLIP
CLIP

69142-45000-000   6914245000000

6914245000000

Unit Price

11
BLEEDER
BLEEDER

59121-18410-000   5912118410000

5912118410000

Unit Price

12
CAP, BLEEDER PLUG

59122-18410-000  

55156-66310-000
 5912218410000

Unit Price

13
COVER, LH

59151-22D00-000   5915122D00000

5915122D00000
Not available
13
COVER, RH

59152-22D00-000   5915222D00000

5915222D00000
Not available
14
SCREW
SCREW

59153-22D00-000   5915322D00000

5915322D00000

Unit Price

15
BOLT

01517-10308-000  

01550-10307-000
 0151710308000

Unit Price

99x
CALIPER ASSY, FRONT RH

59100-06C42-000   5910006C42000

5910006C42000
Not available
99x
CALIPER ASSY, FRONT LH

59300-06C42-000   5930006C42000

5930006C42000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT CALIPER (E22) of your Suzuki of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 400 BANDIT 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 BANDIT 1991

Select your Suzuki 1991 model

400 BANDIT 1991 GSF400M(E2)

Suzuki BANDIT

Displacement: 400 cc
Year: 1991
Model code GSF400M(E2)
