CYLINDER HEAD COVER

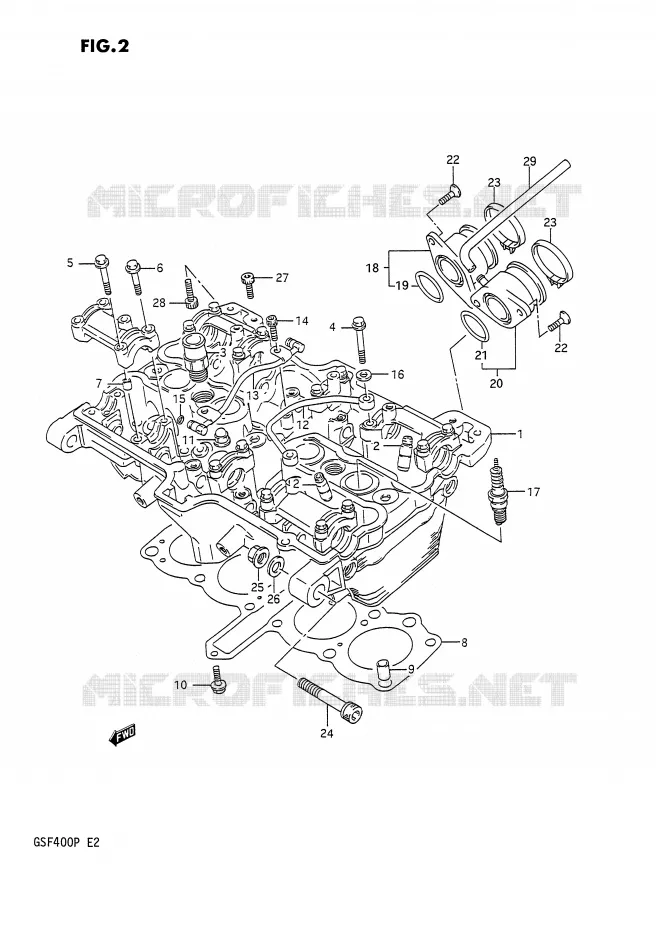

CYLINDER HEAD FOR SUZUKI BANDIT 400 1992

CYLINDER

Item numbers

DISCONTINUE

11100-10D00-000

Not available

GUIDE, VALVE

11115-32C70-000

11115-32C71-000

$39,97

Unit Price

DISCONTINUE

11181-32C03-000

Not available

BOLT(6X45)

09103-06013-000

09103-06165-000

$4,97

Unit Price

CAM SFT HOUSING BOLT
BOLT (6X39)

09103-06026-000 0910306026000

$2,97

Unit Price

BOLT
BOLT (6X35)

09103-06108-000 0910306108000

$3,97

Unit Price

PIN(8X11)
PIN

09206-08001-000 0920608001000

$2,97

Unit Price

GASKET, CYLINDER HEAD

11141-32C01-000

11141-32C10-000

$89,97

Unit Price

DOWEL PIN
PIN

04211-11189-000 0421111189000

$3,97

Unit Price

BOLT

01517-06254-000

01550-0625B-000

$3,97

Unit Price

NUT

08313-21087-000

08313-20087-000

$3,97

Unit Price

PIPE, OIL CYLINDER HEAD, L
PIPE, OIL CYLINDER HEAD LH

12961-30B01-000 1296130B01000

$51,97

Unit Price

PIPE, OIL CYLINDER HEAD RH

12961-30B10-000 1296130B10000

Not available

BOLT(6X12)

07110-06126-000

07130-06123-000

$3,97

Unit Price

O RING

09280-05004-000 0928005004000

$3,97

Unit Price

WASHER

08322-21066-000

08322-0106A-000

$3,97

Unit Price

CR9EK, NGK
SPARK PLUG (NGK, CR9EK)

09482-00410-000 0948200410000

$18,45

Unit Price

CR8EK, NGK
SPARK PLUG (NGK, CR8EK)

09482-00412-000 0948200412000

$18,45

Unit Price

CR7EK, NGK
SPARK PLUG (NGK, CR7EK)

09482-00414-000 0948200414000

$18,45

Unit Price

CR10EK, NGK
SPARK PLUG (NGK, CR10EK)

09482-00462-000 0948200462000

$18,45

Unit Price

DISCONTINUE
PIPE, INTAKE

13101-10D00-000 1310110D00000

Not available

O RING(D:2, ID:36.2)

09280-36002-000

09280-36004-000

$19,97

Unit Price

DISCONTINUE
PIPE, INTAKE

13102-10D00-000 1310210D00000

Not available

O RING(D:2, ID:36.2)

09280-36002-000

09280-36004-000

$19,97

Unit Price

SCREW
SCREW (6X16)

09126-06014-000 0912606014000

$3,97

Unit Price

CLAMP

09402-48208-000 0940248208000

$7,97

Unit Price

BOLT

07110-10707-000 0711010707000

Not available

NUT

09159-10044-000 0915910044000

Not available

REAR SPENSION WASHER
WASHER

09160-10005-000 0916010005000

$2,97

Unit Price

BOLT

07130-08255-000

07130-0825B-000

$5,97

Unit Price

BOLT

07110-08305-000

07130-08303-000

$6,97

Unit Price

BOLT

07130-08255-000

07130-0825B-000

$5,97

Unit Price

HOSE

09352-50823-300

09352-50005-600

$11,97

Unit Price

09355-50002-600
HOSE (5X10X300)

09354-50103-300

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki of BANDIT. Let us know if you have any questions.
