Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

STARTER MOTOR CLUTCH

CAMSHAFT - VALVES FOR SUZUKI BANDIT 400 1993

TIMING

Item numbers

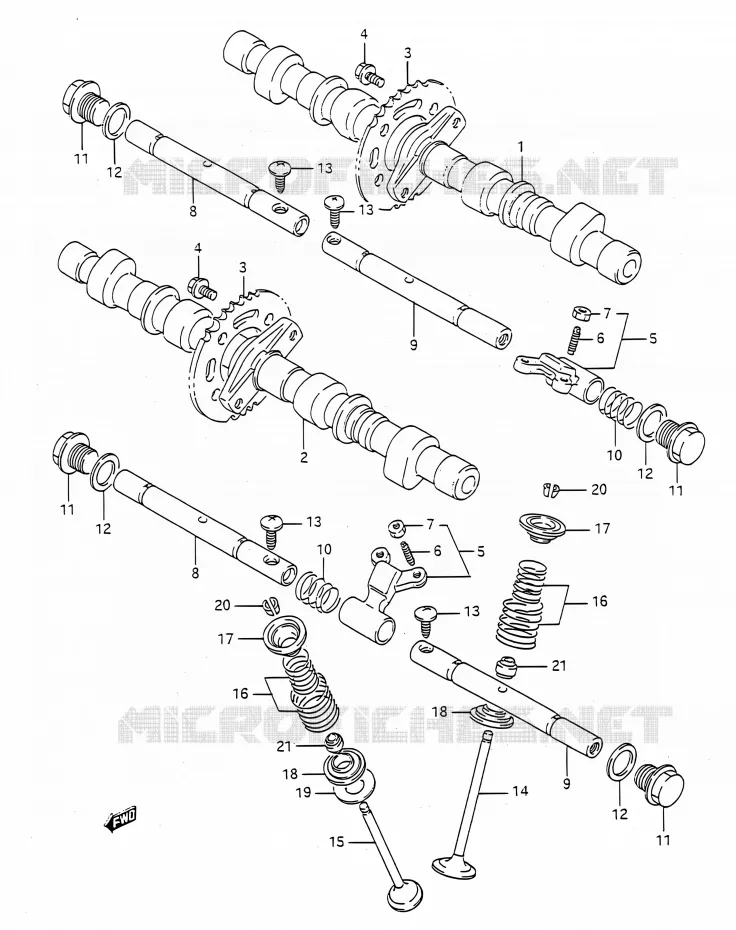

CAMSHAFT - VALVES Suzuki MOTO 400 BANDIT 1993 GSF400 P (E03,E28,E33)
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
11
11
12
12
12
12
13
13
13
13
14
15
16
16
17
17
18
18
20
20
21
21
1
CAM SHAFT, INTAKE

12711-10D10-000   1271110D10000

1271110D10000
Not available
2
CAM SHAFT, EXHAUST

12721-10D10-000   1272110D10000

1272110D10000
Not available
3
SPROCKET, CAM SHAFT

12741-32C00-000   1274132C00000

1274132C00000
Not available
4
BOLT(7X10)
BOLT

09103-07003-000   0910307003000

0910307003000

Unit Price

5
DISCONTINUE
ARM, VALVE ROCKER

12840-32C00-000   1284032C00000

1284032C00000
Not available
6
SCREW, TAPPET ADJUSTING
.SCREW

12842-32C00-000   1284232C00000

1284232C00000

Unit Price

7
NUT, TAPPET ADJUSTING

12843-04A00-000  

12843-27A00-000
 1284304A00000

Unit Price

8
SHAFT, VALVE ROCKER ARM RH

12861-32C00-000   1286132C00000

1286132C00000
Not available
9
SHAFT, VALVE ROCKER ARM LH

12861-32C10-000   1286132C10000

1286132C10000
Not available
10
SPRING
SPRING

09440-13014-000   0944013014000

0944013014000

Unit Price

11
DISCONTINUE<br />PLUG, VALVE ROCKER ARM SHAFT
DISCONTINUE
PLUG, VALVE ROCKER ARM SHAFT

09247-14034-000   0924714034000

0924714034000
Not available
12
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

13
SCREW (6X16)

09139-06043-000   0913906043000

0913906043000
Not available
14
VALVE, INTAKE

12911-32C10-000   1291132C10000

1291132C10000
Not available
15
DISCONTINUE
VALVE, EXHAUST

12912-32C02-000   1291232C02000

1291232C02000
Not available
16
SPRING SET, VALVE

12920-32C01-000   1292032C01000

1292032C01000
Not available
17
DISCONTINUE

12931-32C00-000  

1293132C00000
Not available
18
SEAT, VALVE SPRING

12933-33200-000  

12933-33201-000
 1293333200000

Unit Price

20
COTTER, VALVE

12932-32C00-000   1293232C00000

1293232C00000

Unit Price

21
OIL SEAL<br />OIL SEAL (4.5X10X8)
OIL SEAL
OIL SEAL (4.5X10X8)

09289-04002-000   0928904002000

0928904002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAMSHAFT - VALVES of your Suzuki of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 400 BANDIT 1993

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 BANDIT 1993

Select your Suzuki 1993 model

400 BANDIT 1993 GSF400 P (E03,E28,E33)

Suzuki BANDIT

Displacement: 400 cc
Year: 1993
Model code GSF400 P (E03,E28,E33)
