MUFFLER

WATER PUMP FOR SUZUKI BANDIT 400 1993

RADIATOR

Item numbers

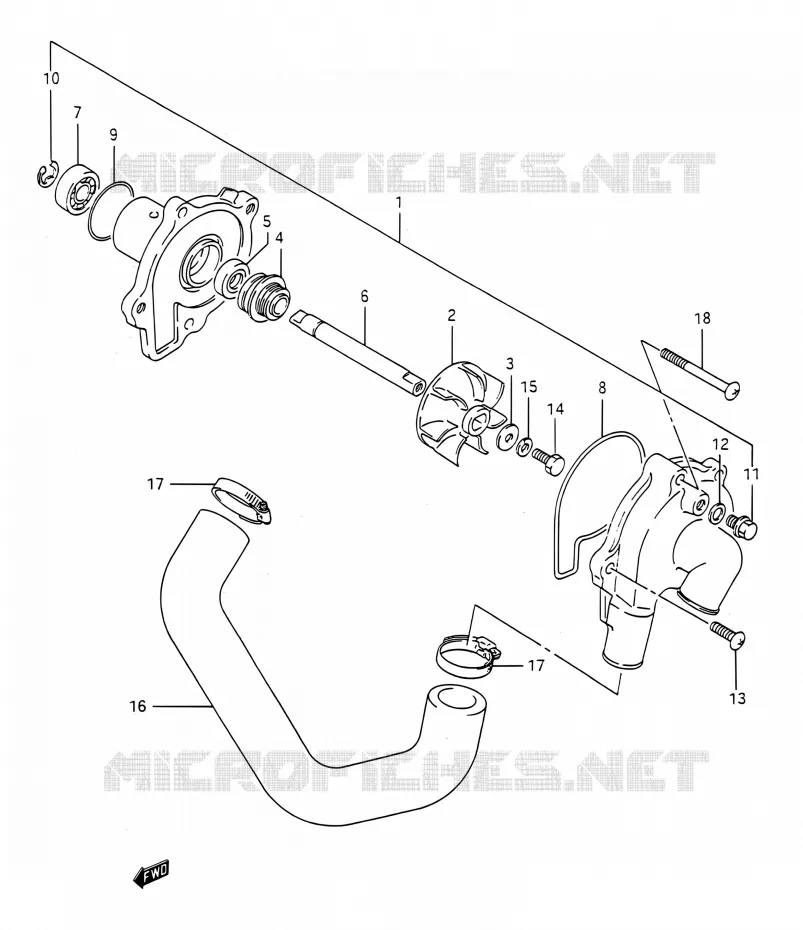

WATER PUMP Suzuki MOTO 400 BANDIT 1993 GSF400 P (E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
1
17400-32C01
PUMP ASSY, WATER

17400-10D01-000  

1740010D01000
Not available
2
DISCONTINUE
.INPELLER, WATER PUMP

17491-16700-000   1749116700000

1749116700000
Not available
3
WASHER<br />.GASKET
WASHER
.GASKET

09168-06025-000   0916806025000

0916806025000

Unit Price

4
SEAL, MECHANICAL

17470-46A00-000  

17470-02F11-000
 1747046A00000

Unit Price

5
OIL SEAL, WATER PUMP

17461-38A00-000  

09283-10004-000
 1746138A00000

Unit Price

6
DISCONTINUE
.SHAFT, WATER PUMP

17511-30B00-000   1751130B00000

1751130B00000
Not available
7
BEARING, 10X26X8

17451-38A00-000  

09262-10014-000
 1745138A00000

Unit Price

8
.O RING

17418-38400-000   1741838400000

1741838400000

Unit Price

9
O RING,WATER PUMP HOLDER<br />.O RING
O RING, WATER PUMP HOLDER
.O RING

17435-33400-000   1743533400000

1743533400000

Unit Price

10
08332-1108A
.E RING

08332-11086-000  

0833211086000
Not available
11
.BOLT, DRAIN
.BOLT, DRAIN

17415-14300-000   1741514300000

1741514300000

Unit Price

12
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

13
SCREW

02112-06164-000  

02112-0616A-000
 0211206164000

Unit Price

14
BOLT,WATER PUMP<br />.BOLT (6X13)
BOLT, WATER PUMP
.BOLT (6X13)

09100-06099-000   0910006099000

0910006099000

Unit Price

15
ENG OIL CASE WA **S1<br />.LOCK WASHER
ENG OIL CASE WA **S1
.LOCK WASHER

09164-06006-000   0916406006000

0916406006000

Unit Price

16
DISCONTINUE
HOSE, WATER PUMP OUTLET

17858-10D00-000   1785810D00000

1785810D00000
Not available
17
CLAMP

09402-30502-000  

09402-32511-000
 0940230502000

Unit Price

18
SCREW

02112-06455-000  

02112-06453-000
 0211206455000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 400 BANDIT 1993

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 BANDIT 1993

Select your Suzuki 1993 model

400 BANDIT 1993 GSF400 P (E03,E28,E33)

Suzuki BANDIT

Displacement: 400 cc
Year: 1993
Model code GSF400 P (E03,E28,E33)
