Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER FOR SUZUKI BANDIT 400 1993

OIL PAN-OIL PUMP

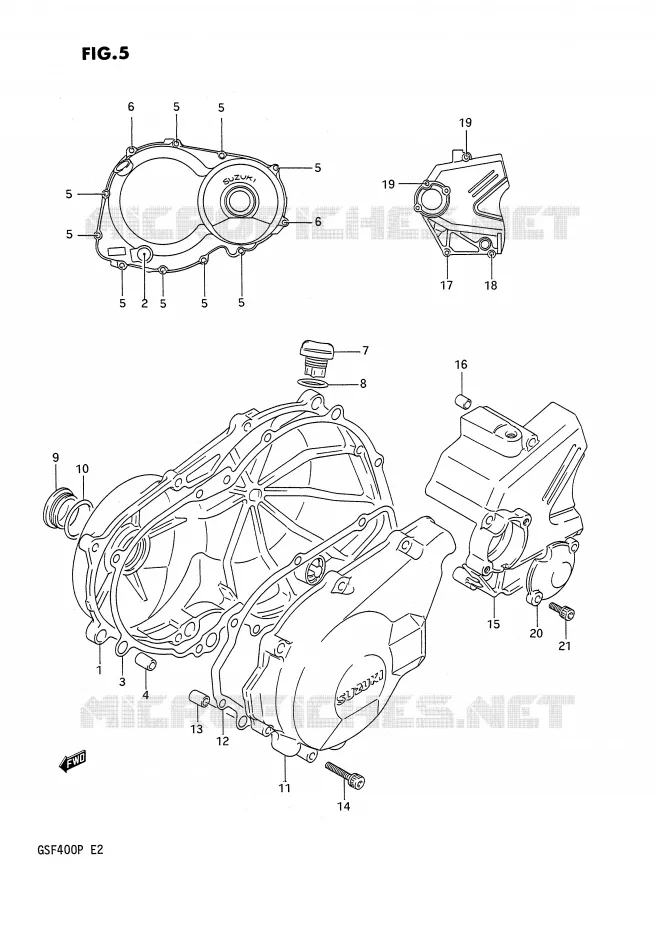

CRANKCASE COVER Suzuki MOTO 400 BANDIT 1993 GSF400P(E2)
1
DISCONTINUE

11340-10D00-000  

1134010D00000
Not available
2
LENS,OIL LEVEL CHECK<br />LENS, OIL CHECK
LENS, OIL LEVEL CHECK
LENS, OIL CHECK

11971-45010-000   1197145010000

1197145010000

Unit Price

3
GASKET, CLUTCH COVER

11482-32C01-000  

11482-32C11-000
 1148232C01000

Unit Price

4
PIN
PIN

04211-09189-000   0421109189000

0421109189000

Unit Price

5
BOLT

07110-06255-000  

07130-0625B-000
 0711006255000

Unit Price

6
BOLT

07110-06355-000  

07130-0635B-000
 0711006355000

Unit Price

7
PLUG, OIL FILLER

11971-20A00-000  

11971-12C51-000
 1197120A00000

Unit Price

8
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

9
PLUG, SHAFT HOLE

09259-36007-000  

09259-36016-20H
 0925936007000

Unit Price

10
O-RING,CRANK SHAFT<br />O RING
O-RING, CRANK SHAFT
O RING

09280-33004-000   0928033004000

0928033004000

Unit Price

11
COVER, STARTER GEAR

11351-10D01-000   1135110D01000

1135110D01000

Unit Price

12
GASKET, STARTER GEAR COVER

11483-30B01-000  

11483-30B10-000
 1148330B01000

Unit Price

13
PIN, 11 X20

09206-11005-000  

09206-11017-000
 0920611005000

Unit Price

14
BOLT

07110-06255-000  

07130-0625B-000
 0711006255000

Unit Price

15
DISCONTINUE
COVER, SPROCKET

11361-10D00-000   1136110D00000

1136110D00000
Not available
16
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

17
BOLT

07110-06355-000  

07130-0635B-000
 0711006355000

Unit Price

18
BOLT

07110-06605-000  

07130-0660B-000
 0711006605000

Unit Price

19
BOLT

07110-06805-000  

07130-0680B-000
 0711006805000

Unit Price

20
DISCONTINUE
CAP, CLUTCH RELEASE ADJUST

11387-10D00-000   1138710D00000

1138710D00000
Not available
21
BOLT (6X12)

09106-06055-000   0910606055000

0910606055000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 400 BANDIT 1993
