Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

REAR FENDER (WITH OUT E24) REFER TO FIG.44(J- 3) FOR DR-Z400E E24

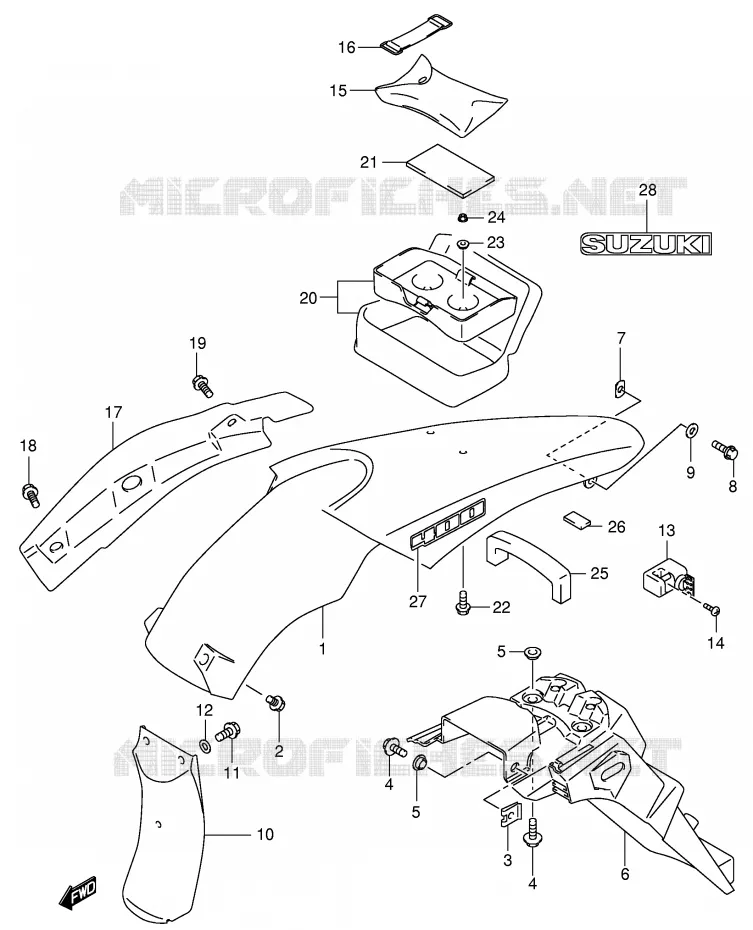

REAR FENDER (DR-Z400E E24) FOR SUZUKI DR-Z 400 2000

LABEL (MODEL Y) REFER TO FIG.45A(J-5) FOR MODEL K1

Item numbers

FENDER, RR

63113-29F40-YU1

63113-29FA0-YU1

$237,97

Unit Price

FENDER, REAR (YELLOW)

63113-29F40-25Y 6311329F4025Y

Not available

BOLT
BOLT, FRONT

09111-06066-000 0911106066000

$4,97

Unit Price

PLATE, RR FENDER

63312-13E00-000

63312-13E01-000

$11,97

Unit Price

BOLT, 6X20, W/PL WASHE
BOLT

09116-06115-000 0911606115000

$2,97

Unit Price

WASHER

09169-06073-000 0916906073000

$5,97

Unit Price

EXTENSION, REAR FENDER

63311-29F40-000 6331129F40000

Not available

NUT, COWL
NUT, FITTING

94484-24F00-000 9448424F00000

$6,97

Unit Price

BOLT

01550-05123-000

01550-0512B-000

$3,97

Unit Price

WASHER

09169-05021-000

09169-05024-000

$3,97

Unit Price

MUDGUARD, RR FENDER FR
MUDGUARD, FRONT

63411-29F00-000 6341129F00000

$23,97

Unit Price

BOLT

01547-06163-000

01547-0616B-000

$4,97

Unit Price

WASHER

09169-06045-000 0916906045000

$2,97

Unit Price

LOCK SET, HELMET

95700-44810-000 9570044810000

Not available

SCREW

09139-06089-000 0913906089000

$4,97

Unit Price

TOOL ASSY

09800-21042-000

09800-21092-000

$85,97

Unit Price

BAND
BAND, TOOL

09462-00008-000

Not available

MUDGUARD, RR FENDER, R
MUDGUARD, REAR FENDER RH

63114-29F00-000 6311429F00000

$27,97

Unit Price

BOLT
BOLT, LOWER

09111-06081-000 0911106081000

$7,97

Unit Price

BOLT, 6X12

63161-43E00-000

09111-06107-000

$3,97

Unit Price

BAG ASSY, SEAT TAIL

94900-29FA0-000

94900-29FA1-000

$198,97

Unit Price

CUSHION, REAR BAG
CUSHION

94915-44E00-000 9491544E00000

$16,97

Unit Price

BOLT

01550-06203-000

01550-0620B-000

$4,97

Unit Price

WASHER

09169-06063-000 0916906063000

$5,97

Unit Price

NUT, ROOF RAIL
NUT

09159-06078-000 0915906078000

$4,97

Unit Price

SEALER, SIDE COVER L
CUSHION, FRONT

47161-29B00-000 4716129B00000

$9,97

Unit Price

PROTECTOR(170X95X3.0)
CUSHION, REAR

33651-37000-000 3365137000000

$6,97

Unit Price

DISCONTINUE
EMBLEM, REAR FENDER "400"

68171-29F00-GY8 6817129F00GY8

Not available

EMBLEM, 'SUZUKI'

68721-13A00-GY8

68721-13A01-GY8

$15,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
