REAR FEDNER (SANS E24)

REAR FEDNER (DR-Z400E E24) FOR SUZUKI DR-Z 400 2000

LABEL (MODELE Y)

Item numbers

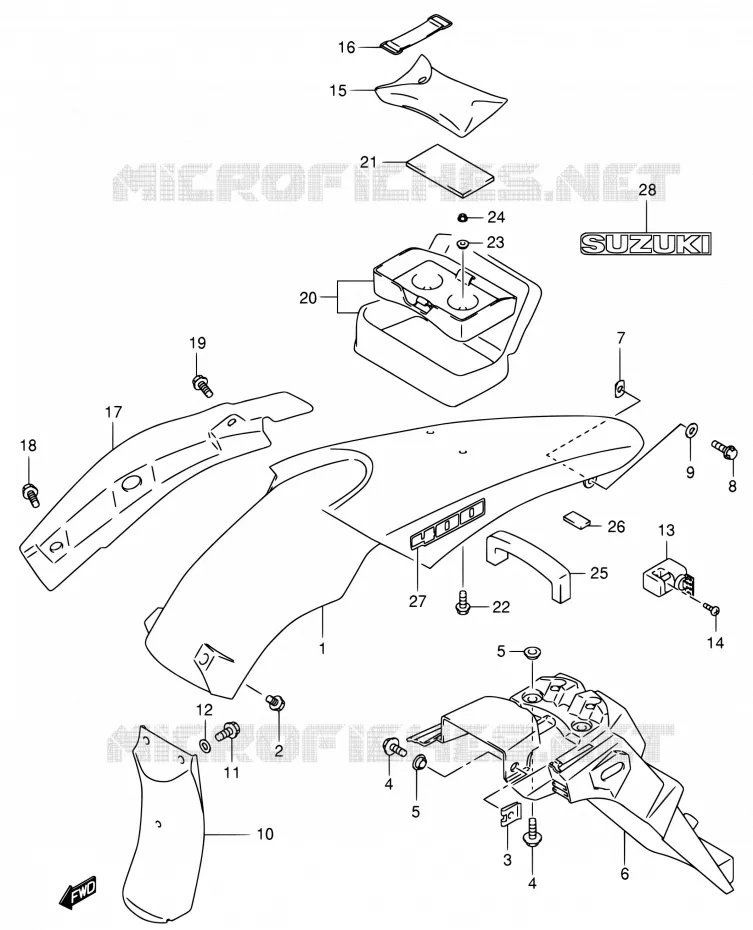

REAR FEDNER (DR-Z400E E24) Suzuki MOTO 400 DR-Z 2000 DR-Z400EY(E24)
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
FENDER, REAR (YELLOW)

63113-29F40-25Y   6311329F4025Y

6311329F4025Y
Not available
2
BOLT<br />BOLT, FRONT
BOLT
BOLT, FRONT

09111-06066-000   0911106066000

0911106066000

Unit Price

3
PLATE, RR FENDER

63312-13E00-000  

63312-13E01-000
 6331213E00000

Unit Price

4
BOLT,6X20,W/PL WASHE<br />BOLT
BOLT, 6X20, W/PL WASHE
BOLT

09116-06115-000   0911606115000

0911606115000

Unit Price

5
WASHER

09169-06073-000   0916906073000

0916906073000

Unit Price

6
EXTENSION, REAR FENDER

63311-29F40-000   6331129F40000

6331129F40000
Not available
7
NUT,COWL<br />NUT, FITTING
NUT, COWL
NUT, FITTING

94484-24F00-000   9448424F00000

9448424F00000

Unit Price

8
BOLT

01550-05123-000  

01550-0512B-000
 0155005123000

Unit Price

9
WASHER

09169-05021-000  

09169-05024-000
 0916905021000

Unit Price

10
MUDGUARD, RR FENDER FR
MUDGUARD, FRONT

63411-29F00-000   6341129F00000

6341129F00000

Unit Price

11
BOLT

01547-06163-000  

01547-0616B-000
 0154706163000

Unit Price

12
WASHER

09169-06045-000   0916906045000

0916906045000

Unit Price

13
LOCK SET, HELMET

95700-44810-000   9570044810000

9570044810000
Not available
14
SCREW
SCREW

09139-06089-000   0913906089000

0913906089000

Unit Price

15
TOOL ASSY

09800-21042-000  

09800-21092-000
 0980021042000

Unit Price

16
BAND
BAND, TOOL

09462-00008-000  

0946200008000
Not available
17
MUDGUARD, RR FENDER, R
MUDGUARD, REAR FENDER RH

63114-29F00-000   6311429F00000

6311429F00000

Unit Price

18
BOLT

63161-35F00-000  

09111-06081-000
 6316135F00000

Unit Price

19
BOLT,6X12
BOLT, 6X12

63161-43E00-000  

09111-06107-000
 6316143E00000

Unit Price

20
BAG ASSY, SEAT TAIL

94900-29FA0-000  

94900-29FA1-000
 9490029FA0000

Unit Price

21
CUSHION, REAR BAG
CUSHION

94915-44E00-000   9491544E00000

9491544E00000

Unit Price

22
BOLT

01550-06203-000  

01550-0620B-000
 0155006203000

Unit Price

23
WASHER

09169-06063-000   0916906063000

0916906063000

Unit Price

24
NUT, ROOF RAIL
NUT

09159-06078-000   0915906078000

0915906078000

Unit Price

25
SEALER, SIDE COVER L
CUSHION, FRONT

47161-29B00-000   4716129B00000

4716129B00000

Unit Price

26
PROTECTOR(170X95X3.0)<br />CUSHION, REAR
PROTECTOR(170X95X3.0)
CUSHION, REAR

33651-37000-000   3365137000000

3365137000000

Unit Price
