Displacement

Model

Year

Finish line

Parts catalogue

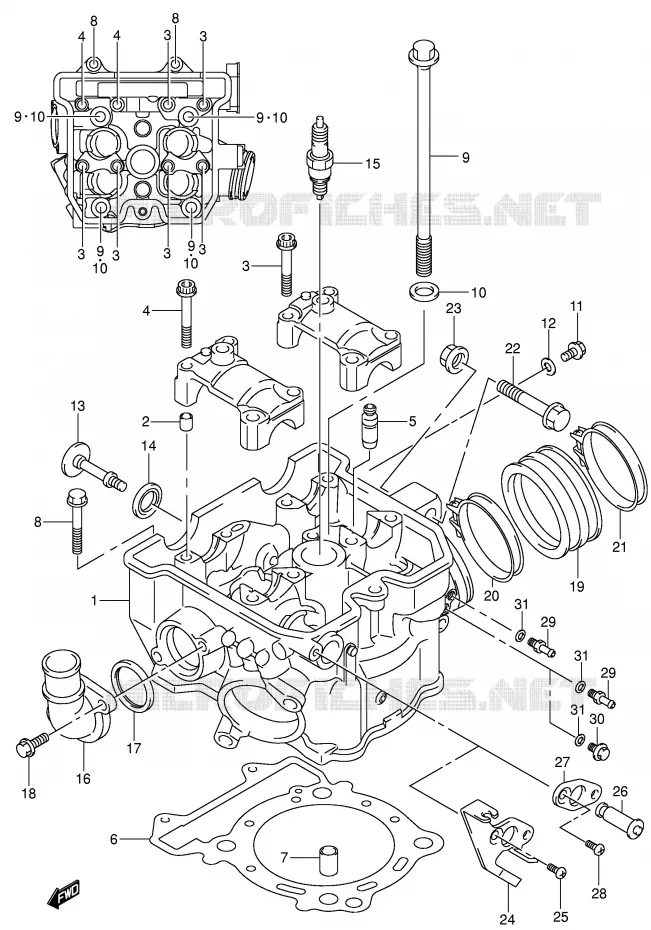

Parts diagram

CYLINDER HEAD COVER

CYLINDER HEAD FOR SUZUKI DR-Z 400 2000

CYLINDER

Item numbers
CYLINDER HEAD Suzuki MOTO 400 DR-Z 2000 DR-Z400EY(E3/E28)
1
1
2
3
3
3
3
3
3
3
4
4
4
5
6
7
8
8
8
9
9
9
9
9
10
10
10
10
10
11
12
13
14
15
15
15
15
15
15
15
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
29
29
29
30
31
31
31
1
HEAD ASSY, CYLINDER

11100-29F00-000  

11100-29F01-000
 1110029F00000

Unit Price

2
PIN(8X11)<br />PIN
PIN(8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

3
BOLT

07120-06403-000  

07120-0640A-000
 0712006403000

Unit Price

4
BOLT

07120-06453-000  

07120-0645B-000
 0712006453000

Unit Price

5
GUIDE, VALVE
GUIDE, VALVE (OS.0.3)

11115-20E70-000   1111520E70000

1111520E70000

Unit Price

6
GASKET, CYLINDER HEAD

11141-29F01-000   1114129F01000

1114129F01000

Unit Price

7
PIN<br />PIN (L:18)
PIN
PIN (L:18)

04211-13189-000   0421113189000

0421113189000

Unit Price

8
BOLT, M6X39
BOLT (6X39)

09103-06504-000   0910306504000

0910306504000

Unit Price

9
BOLT, M10X175
BOLT (10X175)

09103-10276-000   0910310276000

0910310276000

Unit Price

10
WASHER (10.5X19X2)
WASHER (10.5X19X2)

09160-10082-000   0916010082000

0916010082000

Unit Price

11
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

12
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
13
BOLT,CYL HEAD SIDE FACE<br />BOLT, SIDE FACE
BOLT, CYL HEAD SIDE FACE
BOLT, SIDE FACE

11161-33E00-000   1116133E00000

1116133E00000

Unit Price

14
WASHER,HEAD COVER<br />WASHER
WASHER, HEAD COVER
WASHER

11191-13E00-000   1119113E00000

1119113E00000

Unit Price

15
CR8E, NGK<br />SPARK PLUG (NGK,CR8E)
CR8E, NGK
SPARK PLUG (NGK, CR8E)

09482-00456-000   0948200456000

0948200456000

Unit Price

15
CR9E, NGK<br />SPARK PLUG (NGK,CR9E)
CR9E, NGK
SPARK PLUG (NGK, CR9E)

09482-00458-000   0948200458000

0948200458000

Unit Price

15
CR10E, NGK<br />SPARK PLUG (NGK,CR10E)
CR10E, NGK
SPARK PLUG (NGK, CR10E)

09482-00460-000   0948200460000

0948200460000

Unit Price

15
CR7E, NGK

09482-00515-000  

09482-00516-000
 0948200515000

Unit Price

16
COVER, THERMOSTAT

17661-29F00-000   1766129F00000

1766129F00000

Unit Price

17
SEAL, THERMOSTAT COVER

17664-30B00-000   1766430B00000

1766430B00000

Unit Price

18
BOLT

01547-06163-000  

01547-0616B-000
 0154706163000

Unit Price

19
PIPE, INTAKE

13111-29F00-000  

13111-29F01-000
 1311129F00000

Unit Price

19
PIPE, INTAKE

13111-29F20-000   1311129F20000

1311129F20000
Not available
20
CLAMP
CLAMP, HEAD

09402-58208-000   0940258208000

0940258208000

Unit Price

21
CLAMP
CLAMP, CARB

09402-58208-000   0940258208000

0940258208000

Unit Price

22
BOLT (10X50)

09103-10235-000   0910310235000

0910310235000

Unit Price

23
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

24
HOLDER, DECOMP CABLE

12944-29F00-000   1294429F00000

1294429F00000

Unit Price

25
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

26
PLUG, DECOMP SHAFT HOLE

12945-29F00-000   1294529F00000

1294529F00000

Unit Price

27
RETAINER, DECOMP SHAFT SEAL

12943-29F00-000   1294329F00000

1294329F00000

Unit Price

28
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

29
UNION, INTAKE PORT

13685-29F00-000   1368529F00000

1368529F00000

Unit Price

30
BOLT(8X9.5)

09103-08335-000  

09103-08421-000
 0910308335000

Unit Price

31
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 400 DR-Z 2000
