Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SHOCK ABSORBER LINKAGE

REAR WHEEL FOR SUZUKI DR-Z 400 2000

REAR CALIPER

Item numbers

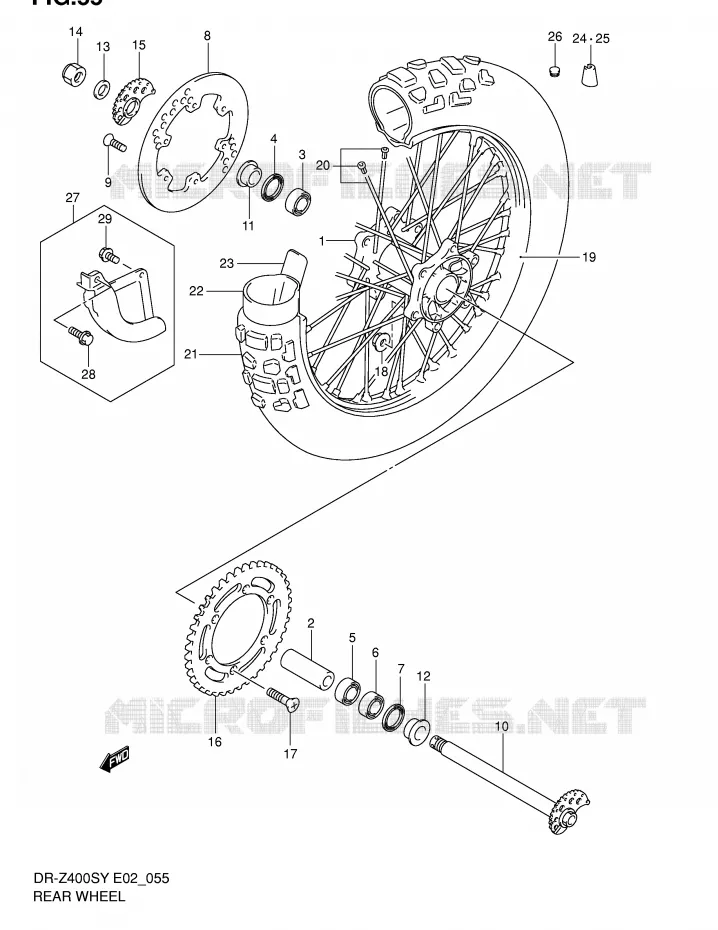

REAR WHEEL Suzuki MOTO 400 DR-Z 2000 DR-Z400SY(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
HUB, RR WHEEL
HUB, REAR WHEEL

64111-29F10-000   6411129F10000

6411129F10000

Unit Price

2
SPACER, RR HUB BEARING
SPACER, BEARING

64731-29F00-000   6473129F00000

6473129F00000

Unit Price

3
BEARING,
BEARING, RH

08133-60047-000   0813360047000

0813360047000

Unit Price

4
SEAL(29X42X6)

64841-28E00-000  

64841-28E01-000
 6484128E00000

Unit Price

5
BEARING,
BEARING, LH

08133-60047-000   0813360047000

0813360047000

Unit Price

6
BALL BEARING
BALL BEARING

08123-62047-000  

08123-6204B-000
 0812362047000

Unit Price

7
SEAL
SEAL, LH (29X47X5)

09283-29006-000   0928329006000

0928329006000

Unit Price

8
DISC, REAR BRAKE

69211-43D00-000   6921143D00000

6921143D00000

Unit Price

9
SCREW

09120-06011-000  

09120-06014-000
 0912006011000

Unit Price

10
AXLE, RR
AXLE, REAR

64710-29F00-000   6471029F00000

6471029F00000

Unit Price

11
SPACER, RR AXLE
SPACER, RH

64751-28E20-000   6475128E20000

6475128E20000

Unit Price

12
SPACER, RR AXLE
SPACER, LH

64751-28E20-000   6475128E20000

6475128E20000

Unit Price

13
WASHER

09160-19022-000   0916019022000

0916019022000

Unit Price

14
NUT

08319-21188-000   0831921188000

0831921188000
Not available
15
ADJUSTER, CHAIN, R
ADJUSTER, CHAIN RH

61410-29F00-000   6141029F00000

6141029F00000

Unit Price

16
SPROCKET, RR(44T, S45C)
SPROCKET, REAR (NT:44-520)

64511-14D80-000   6451114D80000

6451114D80000

Unit Price

17
SCREW<br />SCREW (8X30.5)
SCREW
SCREW (8X30.5)

09120-08010-000   0912008010000

0912008010000

Unit Price

18
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
19
RIM, RR WHEEL(18X2.15 AL)
RIM, REAR WHEEL (2.15X18)

65311-29F00-000   6531129F00000

6531129F00000

Unit Price

20
SPOKE SET, RR WHEEL
SPOKE ASSY, REAR WHEEL

65320-29F00-000   6532029F00000

6532029F00000

Unit Price

21
65110-29F11
TIRE, REAR (120/90-18 64P) (BRIDGESTONE)

65110-29F10-000   6511029F10000

6511029F10000
Not available
22
TUBE ASSY, WHEEL INNER

65200-29E00-000   6520029E00000

6520029E00000

Unit Price

23
PROTECTOR, WHL INR TUBE
PROTECTOR, INNER TUBE

65261-14E00-000   6526114E00000

6526114E00000

Unit Price

24
BALANCER, WHEEL(30G)

55412-38A00-000  

55412-41F00-000
 5541238A00000

Unit Price

25
BALANCER, WHEEL(30G)

55413-38A00-000  

55413-41F00-000
 5541338A00000

Unit Price

26
CAP(OD:12)<br />CAP, BEAD STOPPER
CAP(OD:12)
CAP, BEAD STOPPER

09250-08013-000   0925008013000

0925008013000

Unit Price

27
COVER SET, REAR DISC
COVER, REAR BRAKE

69200-28C00-000   6920028C00000

6920028C00000

Unit Price

28
BOLT

01550-06203-000  

01550-0620B-000
 0155006203000

Unit Price

29
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 400 DR-Z 2000

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 DR-Z 2000

Choose your Suzuki 400 2000 DR-Z model

400 DR-Z 2000 DR-Z400SY(E2)

Suzuki DR-Z

Displacement: 400 cc
Year: 2000
Model code DR-Z400SY(E2)
