CLUTCH

TRANSMISSION FOR SUZUKI DR-Z 400 2000

GEAR SHIFTING ASSY (NOTE) NOTE : DR-Z400Y/EY/K1/EK1/K2/EK2/K3/EK3/EK4/E1,

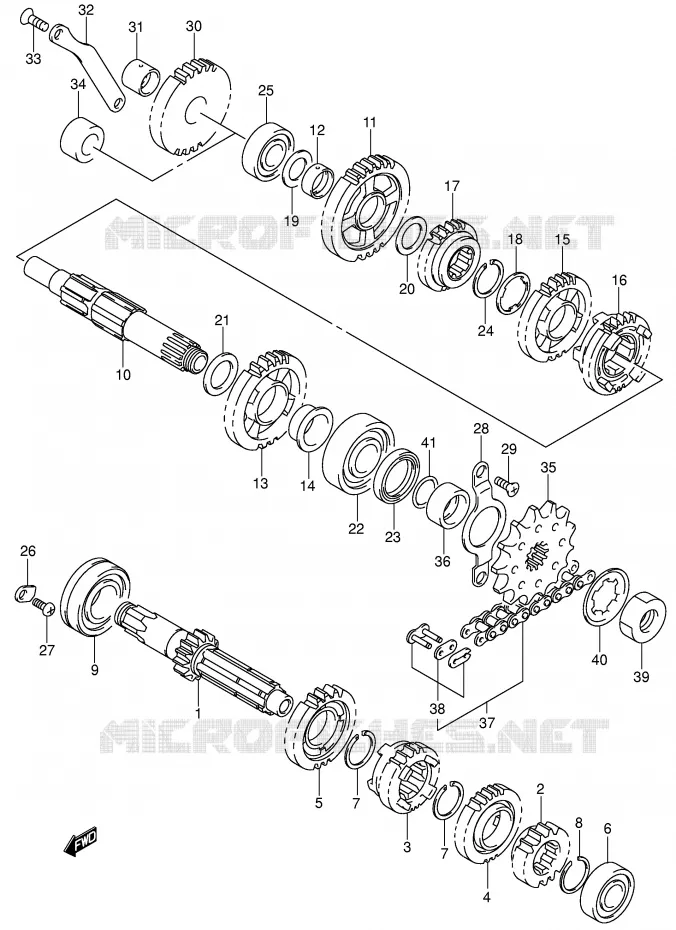

TRANSMISSION Suzuki MOTO 400 DR-Z 2000 DR-Z400Y(E1)
1
SHAFT, COUNTER (NT:14)

24120-05D20-000   2412005D20000

2412005D20000

Unit Price

2
GEAR, 2ND DRIVE (NT:15)

24221-28C20-000   2422128C20000

2422128C20000

Unit Price

3
GEAR, 3RD DRIVE (NT:16)

24231-05D02-000   2423105D02000

2423105D02000

Unit Price

4
GEAR, 4TH DRIVE (NT:22)

24241-05D01-000   2424105D01000

2424105D01000

Unit Price

5
GEAR, 5TH DRIVE (NT:22)

24251-05D00-000   2425105D00000

2425105D00000

Unit Price

6
BALL BEARING<br />BEARING, CNTR SHAFT LH
BALL BEARING
BEARING, CNTR SHAFT LH

09262-17027-000   0926217027000

0926217027000

Unit Price

7
DRIVEN GEAR CIRCLIP
CIRCLIP, 4TH/5TH DRIVE

09380-25010-000   0938025010000

0938025010000

Unit Price

8
CIRCLIP<br />CIRCLIP, 2ND DRIVE
CIRCLIP
CIRCLIP, 2ND DRIVE

09380-25013-000   0938025013000

0938025013000

Unit Price

9
BEARING(25X52X15)<br />BEARING, CNTR SHAFT RH
BEARING(25X52X15)
BEARING, CNTR SHAFT RH

09262-25003-000   0926225003000

0926225003000

Unit Price

10
SHAFT, DRIVE

24130-05D20-000  

24130-05D21-000
 2413005D20000

Unit Price

11
GEAR, 1ST DRIVEN (NT:32)

24311-05D00-000   2431105D00000

2431105D00000

Unit Price

12
BUSH, 1ST DRIVEN GEAR
BUSH, 1ST DRIVEN

24312-29F00-000   2431229F00000

2431229F00000

Unit Price

13
GEAR, 2ND DRIVEN (NT:26)

24321-28C02-000   2432128C02000

2432128C02000

Unit Price

14
BUSH, 2ND DRIVEN GEAR
BUSH, 2ND DRIVEN

24322-44E10-000   2432244E10000

2432244E10000

Unit Price

15
GEAR, 3RD DRIVEN (NT:22)

24331-05D01-000   2433105D01000

2433105D01000

Unit Price

16
GEAR, 4TH DRIVEN (NT:24)

24341-05D01-000   2434105D01000

2434105D01000

Unit Price

17
GEAR, 5TH DRIVEN (NT:19)

24351-05D20-000   2435105D20000

2435105D20000

Unit Price

18
WASHER<br />WASHER, 3RD DRIVEN
WASHER
WASHER, 3RD DRIVEN

09167-25012-000   0916725012000

0916725012000

Unit Price

19
SHIM
WASHER, 1ST DRIVEN RH

09181-17223-000   0918117223000

0918117223000

Unit Price

20
SHIM<br />WASHER, 1ST DRIVEN LH
SHIM
WASHER, 1ST DRIVEN LH

09181-20195-000   0918120195000

0918120195000

Unit Price

21
WASHER<br />WASHER, 2ND DRIVEN RH
WASHER
WASHER, 2ND DRIVEN RH

09181-22223-000   0918122223000

0918122223000

Unit Price

22
BEARING
BEARING, DRIVE SHAFT LH

09262-22024-000   0926222024000

0926222024000

Unit Price

23
OIL SEAL 30X40X6<br />SEAL, DRIVE SHAFT OIL
OIL SEAL 30X40X6
SEAL, DRIVE SHAFT OIL

09283-30053-000   0928330053000

0928330053000

Unit Price

24
DRIVEN GEAR CIRCLIP
CIRCLIP, 3RD DRIVEN

09380-25010-000   0938025010000

0938025010000

Unit Price

25
BEARING(17X40X12)<br />BEARING, DRIVE SHAFT RH
BEARING(17X40X12)
BEARING, DRIVE SHAFT RH

09262-17023-000   0926217023000

0926217023000

Unit Price

26
RETAINER<br />RETAINER, COUNTER SHAFT
RETAINER
RETAINER, COUNTER SHAFT

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

27
BOLT, 6X12
SCREW (6X12)

09125-06110-000   0912506110000

0912506110000

Unit Price

28
RETAINER, DRIVE SHAFT OIL SEAL

24751-29F00-000   2475129F00000

2475129F00000

Unit Price

29
SCREW 6X14
BOLT, RETAINER (6X14)

09126-06007-000   0912606007000

0912606007000

Unit Price

30
GEAR, KICK STARTER IDLE
GEAR, KICK IDLE (NT:26)

26261-29F00-000   2626129F00000

2626129F00000

Unit Price

31
BUSH, KICK STARTER IDLE GEAR
BUSH, KICK IDLE

26262-29F00-000   2626229F00000

2626229F00000

Unit Price

32
RETAINER, KICK IDLE GEAR
RETAINER, KICK IDLE

26264-29F00-000   2626429F00000

2626429F00000

Unit Price

33
SCREW

02122-06163-000  

02122-0616B-000
 0212206163000

Unit Price

34
SPACER(17X30.5X16.3)
SPACER, KICK IDLE

09180-17055-000   0918017055000

0918017055000

Unit Price

35
SPROCKET, ENGINE (NT:14)

27511-47D10-000   2751147D10000

2751147D10000

Unit Price

36
27531-29F10
SPACER, ENGINE SPROCKET

27531-29F00-000   2753129F00000

2753129F00000
Not available
37
CHAIN, DRIVE

27600-29F10-112  

27600-29F30-112
 2760029F10112

Unit Price

38
JOINT SET, CHAIN

27620-29F10-000   2762029F10000

2762029F10000

Unit Price

39
ENGINE SPROCKET NUT
NUT, ENGINE SPROCKET

09140-18006-000   0914018006000

0914018006000

Unit Price

40
ENG SPROCKET WASHER
WASHER

09167-22012-000   0916722012000

0916722012000

Unit Price

41
O RING (D:2.5,ID:21)
O RING (D:2.5, ID:21)

09280-21008-000   0928021008000

0928021008000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 400 DR-Z 2000
