CARBURETOR (MODEL Y / K1 / K2) REFER TO FIG.12A(D-6) FOR MODEL K3/K4

CARBURETOR (MODEL K3 / K4) FOR SUZUKI DR-Z 400 2000

AIR FILTER

Item numbers

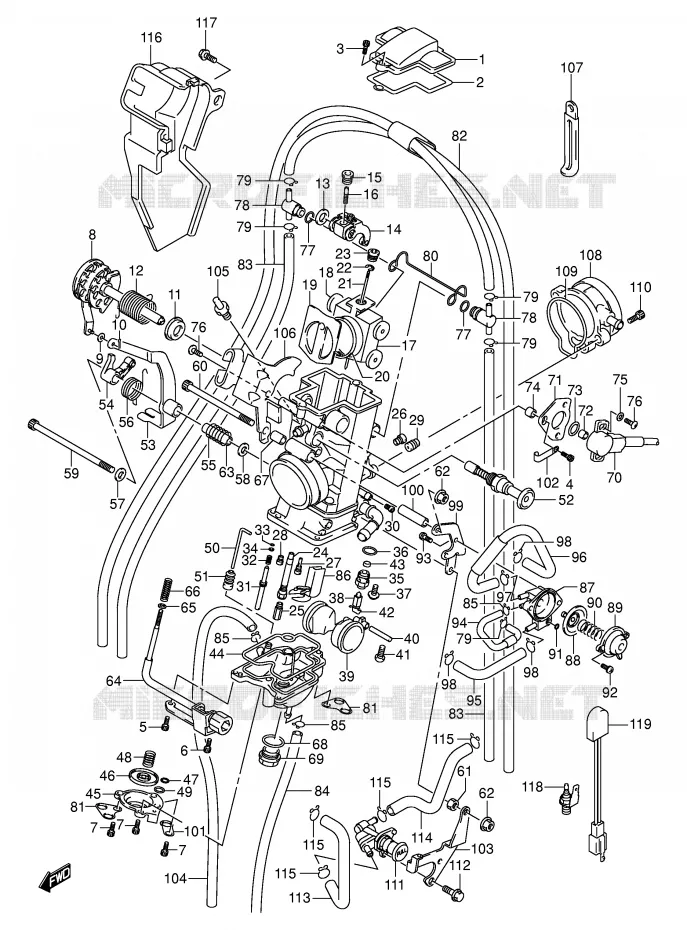

CARBURETOR (MODEL K3/K4) Suzuki MOTO 400 DR-Z 2000 DR-Z400Y(E3/E28)
1
2
3
4
4
5
6
6
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
60
61
62
62
63
64
65
66
67
68
69
70
71
72
73
75
76
76
77
77
78
78
79
79
79
79
79
80
81
81
82
83
83
84
85
85
85
86
87
88
89
90
91
92
93
94
95
96
97
98
98
98
99
100
101
102
103
104
105
106
107
107
108
109
110
111
112
113
114
115
115
115
115
116
117
118
119
1
TOP

13261-29F00-000   1326129F00000

1326129F00000

Unit Price

2
WASHER
TOP WASHER

13266-29F00-000   1326629F00000

1326629F00000

Unit Price

3
BOLT (4X12)

13612-29F10-000   1361229F10000

1361229F10000

Unit Price

4
BOLT (4X12)

13612-29F10-000   1361229F10000

1361229F10000

Unit Price

5
BOLT (4X12)

13612-29F10-000   1361229F10000

1361229F10000

Unit Price

6
BOLT (4X12)

13612-29F10-000   1361229F10000

1361229F10000

Unit Price

6
BOLT (4X14)

13612-29F20-000   1361229F20000

1361229F20000
Not available
7
BOLT (4X8)

13612-29F30-000   1361229F30000

1361229F30000

Unit Price

8
SHAFT, THROTTLE

13550-29F00-000   1355029F00000

1355029F00000

Unit Price

9
WASHER

13418-29F00-000   1341829F00000

1341829F00000

Unit Price

10
PIN

13544-29F00-000   1354429F00000

1354429F00000

Unit Price

11
COLLAR

13574-29F00-000   1357429F00000

1357429F00000

Unit Price

12
SPRING

13573-29F00-000   1357329F00000

1357329F00000

Unit Price

13
WASHER

13572-29F00-000   1357229F00000

1357229F00000

Unit Price

14
LINK ARM

13564-29F00-000   1356429F00000

1356429F00000

Unit Price

15
NUT

13607-29F00-000   1360729F00000

1360729F00000

Unit Price

16
SCREW

13605-29F00-000   1360529F00000

1360529F00000

Unit Price

17
VALVE, THROTTLE

13551-29F00-000   1355129F00000

1355129F00000

Unit Price

18
BEARING

13570-29F00-000   1357029F00000

1357029F00000

Unit Price

19
VALVE

13555-29F00-000   1355529F00000

1355529F00000

Unit Price

20
LIP SEAL

13559-29F00-000   1355929F00000

1355929F00000

Unit Price

21
NEEDLE, JET

13383-29F00-000   1338329F00000

1338329F00000

Unit Price

22
BAR CLIP

13394-29F00-000   1339429F00000

1339429F00000

Unit Price

23
SCREW, NEEDLE SET

13605-29F10-000   1360529F10000

1360529F10000

Unit Price

24
MAIN NOZZLE

13342-29F00-000   1334229F00000

1334229F00000

Unit Price

25
JET, MAIN (142)

09491-28020-000   0949128020000

0949128020000

Unit Price

26
JET, MAIN AIR (200)

09491-40014-000   0949140014000

0949140014000

Unit Price

27
JET, SLOW (45)

09492-45038-000   0949245038000

0949245038000

Unit Price

28
JET, STARTER (65)

09492-65009-000   0949265009000

0949265009000

Unit Price

29
JET, SLOW AIR (60)

09491-60012-000   0949160012000

0949160012000

Unit Price

30
JET, AIR (90)

09493-90009-000   0949390009000

0949390009000

Unit Price

31
SCREW, ADJUST
SCREW, ADJUST (1, 1/2)

13279-29F00-000   1327929F00000

1327929F00000

Unit Price

32
SPRING

13271-29F00-000   1327129F00000

1327129F00000

Unit Price

33
O RING
O RING

13295-26E00-000   1329526E00000

1329526E00000

Unit Price

34
WASHER
WASHER

13291-26E00-000   1329126E00000

1329126E00000

Unit Price

35
VALVE SEAT
VALVE SET

13371-29F00-000   1337129F00000

1337129F00000

Unit Price

36
O RING

13374-29F00-000   1337429F00000

1337429F00000

Unit Price

37
SCREW

13601-29F00-000   1360129F00000

1360129F00000

Unit Price

38
VALVE, FLOAT

13370-29F00-000   1337029F00000

1337029F00000

Unit Price

39
FLOAT

13250-29F00-000   1325029F00000

1325029F00000

Unit Price

40
PIN, FLOAT
PIN

13254-26E00-000   1325426E00000

1325426E00000

Unit Price

41
SCREW

13602-43E00-000  

1360243E00000
Not available
42
CLIP
CLIP

13375-26E00-000   1337526E00000

1337526E00000

Unit Price

43
SCREEN, FUEL STRAINER
STRAINER

15165-24F00-000   1516524F00000

1516524F00000

Unit Price

44
PACKING

13251-29F00-000   1325129F00000

1325129F00000

Unit Price

45
COVER

13488-29F00-000   1348829F00000

1348829F00000

Unit Price

46
DIAPHRAGM

13491-29F00-000   1349129F00000

1349129F00000

Unit Price

47
U RING

13497-14F00-000  

13497-14F01-000
 1349714F00000

Unit Price

48
SPRING

13494-15F00-000   1349415F00000

1349415F00000

Unit Price

49
O RING
O RING

13673-26E10-000   1367326E10000

1367326E10000

Unit Price

50
ROD

13487-29F00-000   1348729F00000

1348729F00000

Unit Price

51
CAP

13499-29F00-000  

13499-29F01-000
 1349929F00000

Unit Price

52
VALVE, STARTER

13410-29F00-000   1341029F00000

1341029F00000

Unit Price

53
LINK LEVER

13490-29F00-000   1349029F00000

1349029F00000

Unit Price

54
LINK LEVER

13490-29F10-000   1349029F10000

1349029F10000

Unit Price

55
SPRING

13494-29F00-000   1349429F00000

1349429F00000

Unit Price

56
SPRING

13494-29F10-000   1349429F10000

1349429F10000

Unit Price

57
WASHER

13615-29F00-000   1361529F00000

1361529F00000

Unit Price

58
COLLAR

13582-29F00-000   1358229F00000

1358229F00000

Unit Price

59
DISCONTINUE
BOLT

13612-29F40-000   1361229F40000

1361229F40000
Not available
60
DISCONTINUE
BOLT

13612-29F40-000   1361229F40000

1361229F40000
Not available
60
BOLT

13612-29F50-000   1361229F50000

1361229F50000
Not available
61
NUT

13607-29F10-000   1360729F10000

1360729F10000
Not available
62
NUT

13607-24F00-000   1360724F00000

1360724F00000

Unit Price

63
COLLAR

13582-29F10-000   1358229F10000

1358229F10000

Unit Price

64
SCREW, STOP

13270-29F00-000  

13270-29F01-000
 1327029F00000

Unit Price

65
WASHER
WASHER

13427-26E00-000   1342726E00000

1342726E00000

Unit Price

66
SPRING

13271-26EA0-000   1327126EA0000

1327126EA0000

Unit Price

67
COLLAR

13582-29F20-000   1358229F20000

1358229F20000

Unit Price

68
O RING

13246-29F00-000   1324629F00000

1324629F00000

Unit Price

69
BOLT

13247-29F00-000   1324729F00000

1324729F00000

Unit Price

70
13580-29F01
SENSOR, THROTTLE

13580-29F00-000   1358029F00000

1358029F00000
Not available
71
PLATE

13627-29F00-000   1362729F00000

1362729F00000

Unit Price

72
COLLAR

13582-24F00-000   1358224F00000

1358224F00000

Unit Price

73
O RING

13575-03F00-000   1357503F00000

1357503F00000

Unit Price

74
COLLAR

13582-29F30-000   1358229F30000

1358229F30000

Unit Price

75
WASHER

13572-14F00-000   1357214F00000

1357214F00000

Unit Price

76
BOLT
BOLT (4X8)

13612-29F00-000   1361229F00000

1361229F00000

Unit Price

77
O RING
O RING

13673-26E00-000  

13673-26E01-000
 1367326E00000

Unit Price

78
JOINT

13687-29F00-000   1368729F00000

1368729F00000

Unit Price

79
CLIP
CLIP

09401-06101-000   0940106101000

0940106101000

Unit Price

80
CLIP

13692-29F00-000   1369229F00000

1369229F00000

Unit Price

81
PLATE
BINDER

13693-36E00-000   1369336E00000

1369336E00000

Unit Price

82
PIPE

13680-29F00-000   1368029F00000

1368029F00000

Unit Price

83
PIPE

13686-29F00-000  

13686-29F01-000
 1368629F00000

Unit Price

84
PIPE, RUBBER

13684-29F00-000  

13684-29F01-000
 1368429F00000

Unit Price

85
CLIP

09401-05402-000   0940105402000

0940105402000
Not available
86
PLATE

13257-29F00-000   1325729F00000

1325729F00000

Unit Price

87
BODY, DIAPHRAGM

13484-29F00-000   1348429F00000

1348429F00000

Unit Price

88
DIAPHRAGM

13480-29F00-000   1348029F00000

1348029F00000

Unit Price

89
COVER

13484-29F10-000   1348429F10000

1348429F10000

Unit Price

90
SPRING

13481-29F00-000   1348129F00000

1348129F00000

Unit Price

91
U RING

13486-15F00-000  

13486-15F01-000
 1348615F00000

Unit Price

92
SCREW

13601-15F20-000   1360115F20000

1360115F20000

Unit Price

93
SCREW

02112-34083-000  

02112-3408A-000
 0211234083000

Unit Price

94
DISCONTINUE
PIPE, RUBBER

13680-29F10-000  

1368029F10000
Not available
95
DISCONTINUE
PIPE, RUBBER

13681-29F00-000  

1368129F00000
Not available
96
PIPE, RUBBER

13680-29F20-000   1368029F20000

1368029F20000

Unit Price

97
CLIP

09401-07101-000   0940107101000

0940107101000
Not available
98
CLIP

13671-29F00-000   1367129F00000

1367129F00000

Unit Price

99
PLATE, STAY

13628-29F00-000   1362829F00000

1362829F00000

Unit Price

99x
CARBURETOR ASSY

13200-29F20-000   1320029F20000

1320029F20000
Not available
99x
DISCONTINUE
CARBURETOR ASSY

13200-29FF0-000   1320029FF0000

1320029FF0000
Not available
99x
DISCONTINUE
CARBURETOR ASSY

13200-29FH0-000   1320029FH0000

1320029FH0000
Not available
100
COLLAR

13582-29F40-000   1358229F40000

1358229F40000

Unit Price

101
PLATE
BINDER

13693-28E00-000   1369328E00000

1369328E00000

Unit Price

102
BINDER

13432-29F00-000   1343229F00000

1343229F00000

Unit Price

103
DISCONTINUE
PLATE, STAY

13629-29F00-000   1362929F00000

1362929F00000
Not available
104
PIPE

13683-29F00-000   1368329F00000

1368329F00000

Unit Price

105
SCREW, STOP

13296-29F00-000   1329629F00000

1329629F00000

Unit Price

106
PLATE, STAY

13621-29F10-000   1362129F10000

1362129F10000

Unit Price

107
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

107
CLAMP,L:120 T:1.0<br />CLAMP, OVER FLOW HOSE LOW
CLAMP, L:120 T:1.0
CLAMP, OVER FLOW HOSE LOW

09404-08420-000   0940408420000

0940408420000

Unit Price

108
JOINT, AIR CLEANER

13670-29F00-000   1367029F00000

1367029F00000

Unit Price

109
O RING, AIR CLNR JOINT
O RING, AIR CLEANER JOINT

13278-29F00-000   1327829F00000

1327829F00000

Unit Price

110
BOLT

07130-05123-000  

07130-0512B-000
 0713005123000

Unit Price

111
STARTER

13440-29F00-000   1344029F00000

1344029F00000
Not available
112
BOLT

01547-06163-000  

01547-0616B-000
 0154706163000

Unit Price

113
DISCONTINUE
HOSE, STARTER TO HEAD

13697-29F00-000   1369729F00000

1369729F00000
Not available
114
DISCONTINUE
HOSE, STARTER TO AIR CLEANER

13697-29F10-000  

1369729F10000
Not available
115
OIL HOSE CLAMP<br />CLIP
OIL HOSE CLAMP
CLIP

09401-08401-000   0940108401000

0940108401000

Unit Price

116
COVER, CARBURETOR

13311-29F10-000   1331129F10000

1331129F10000

Unit Price

117
BOLT,6X12
BOLT, 6X12

63161-43E00-000  

09111-06107-000
 6316143E00000

Unit Price

118
HEATER ASSY,CARBURETOR(15W)<br />HEATER ASSY, CARBURETOR
HEATER ASSY, CARBURETOR(15W)
HEATER ASSY, CARBURETOR

13650-25E01-000   1365025E01000

1365025E01000

Unit Price

119
THERMO SWITCH, CARB HEATER
SWITCH, CARB HEATER THERMO

13655-16F00-000   1365516F00000

1365516F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 400 DR-Z 2000

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 DR-Z 2000

Choose your Suzuki 400 2000 DR-Z model

400 DR-Z 2000 DR-Z400Y(E3/E28)

Suzuki DR-Z

Displacement: 400 cc
Year: 2000
Model code DR-Z400Y(E3 / E28)
Drapeau CANADA
Canada

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
