HEADLIGHT (MODEL K2 / K3 / K4)

INDICATORS (MODEL Y / K1) FOR SUZUKI DR-Z 400 2001

INDICATORS (MODEL K2 / K3 / K4)

Item numbers

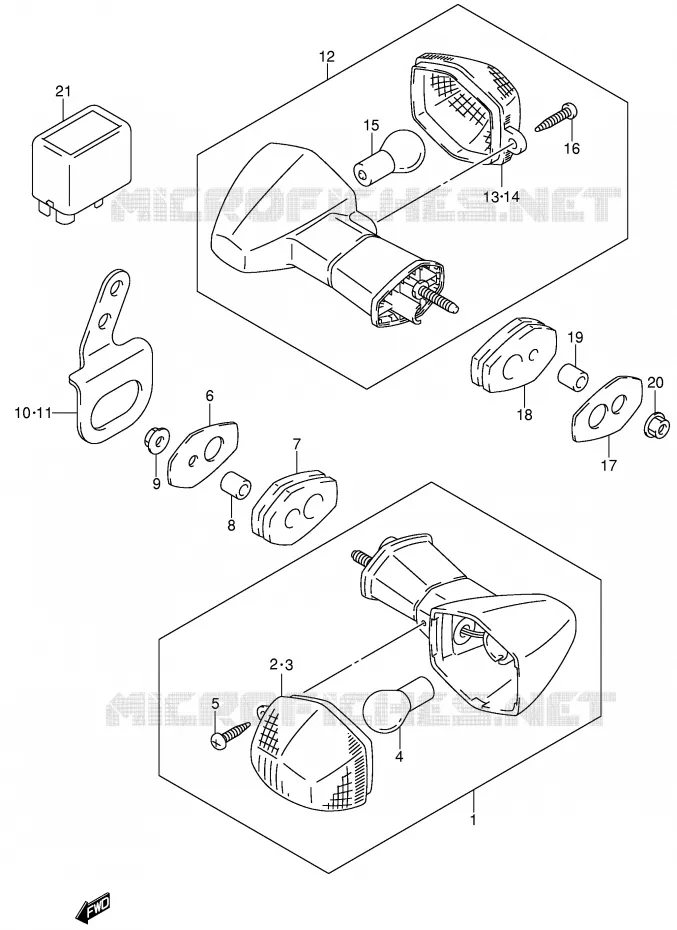

INDICATORS (MODEL Y/K1) Suzuki MOTO 400 DR-Z 2001 DR-Z400SK1(E3/E28)
1
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
1
LAMP ASSY,FR TURN SIGNAL,R<br />LAMP ASSY, FRONT TURN RH
LAMP ASSY, FR TURN SIGNAL, R
LAMP ASSY, FRONT TURN RH

35601-31F30-000   3560131F30000

3560131F30000

Unit Price

1
LAMP ASSY, FR TURN SIGNAL, L
LAMP ASSY, FRONT TURN LH

35602-31F30-000   3560231F30000

3560231F30000

Unit Price

2
LENS<br />LENS, RH
LENS
LENS, RH

35612-31F30-000   3561231F30000

3561231F30000

Unit Price

3
LENS
LENS, LH

35632-31F30-000   3563231F30000

3563231F30000

Unit Price

4
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

5
SCREW

03242-04163-000  

03242-0416B-000
 0324204163000

Unit Price

6
PLATE,FR TURNSIGNAL<br />PLATE, FRONT TURN
PLATE, FR TURNSIGNAL
PLATE, FRONT TURN

35629-31F00-000   3562931F00000

3562931F00000

Unit Price

7
CUSHION,FRONT TURNSI
CUSHION, FRONT TURNSI

35690-31F00-000  

35690-31F01-000
 3569031F00000

Unit Price

8
SPACER (5.5X9.5X10)
SPACER (5.5X9.5X10)

09180-05301-000   0918005301000

0918005301000

Unit Price

9
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

10
BRACKET, FR TURNSIGNAL, R
BRACKET, FRONT RH

35671-29F00-000   3567129F00000

3567129F00000

Unit Price

11
BRACKET, FR TURNSIGNAL, L
BRACKET, FRONT LH

35681-29F00-000   3568129F00000

3568129F00000

Unit Price

12
DISCONTINUE
LAMP ASSY, REAR TURN RH

35603-31F60-000   3560331F60000

3560331F60000
Not available
12
DISCONTINUE
LAMP ASSY, REAR TURN LH

35604-31F60-000   3560431F60000

3560431F60000
Not available
13
LENS
LENS, RH

35632-31F30-000   3563231F30000

3563231F30000

Unit Price

14
LENS<br />LENS, LH
LENS
LENS, LH

35612-31F30-000   3561231F30000

3561231F30000

Unit Price

15
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

16
SCREW

03242-04163-000  

03242-0416B-000
 0324204163000

Unit Price

17
PLATE,FR TURNSIGNAL<br />PLATE, REAR TURN
PLATE, FR TURNSIGNAL
PLATE, REAR TURN

35629-31F00-000   3562931F00000

3562931F00000

Unit Price

18
CUSHION,FRONT TURNSI
CUSHION, FRONT TURNSI

35690-31F00-000  

35690-31F01-000
 3569031F00000

Unit Price

19
SPACER (5.5X9.5X10)
SPACER (5.5X9.5X10)

09180-05301-000   0918005301000

0918005301000

Unit Price

20
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

21
RELAY ASSY,TURNSIGNAL LAMP
RELAY ASSY, TURNSIGNAL LAMP

38610-03F00-000  

38610-03F01-000
 3861003F00000

Unit Price
