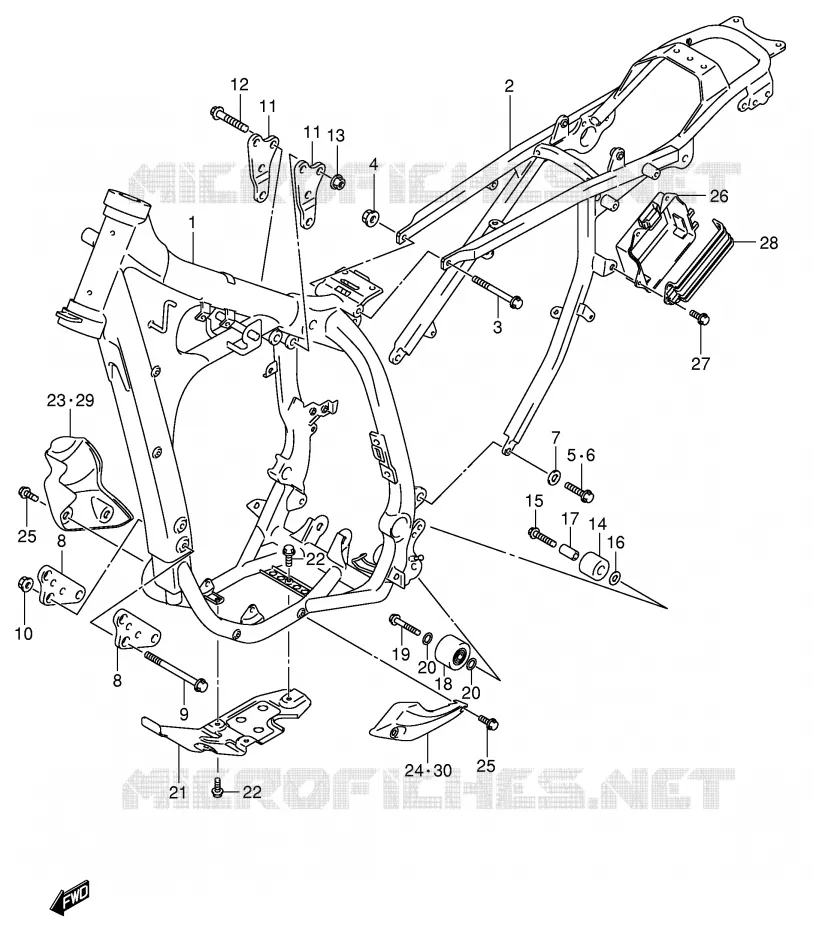

FRAME FOR SUZUKI DR-Z 400 2002

FUEL TANK (MODEL Y) COLOR : 3AE = 30H(WHITE),25Y(YELLOW)

Item numbers

PLATE, ENG MTG FRONT, L

41100-29F30-YU8

41100-29F31-YU8

$27,97

Unit Price

DISCONTINUE
(EXCH) FRAME COMP

41100-29F30-17U 4110029F3017U

Not available

DISCONTINUE
(EXCH) FRAME COMP (DR-Z400SY)

41100-29F30-24K 4110029F3024K

Not available

DISCONTINUE

41200-29F30-000

Not available

BOLT
BOLT, UPPER

09103-08098-000 0910308098000

$5,97

Unit Price

NUT

08319-31087-000 0831931087000

Not available

BOLT
BOLT, LH (8X16)

09104-08035-000 0910408035000

$3,97

Unit Price

BOLT(8X20)
BOLT, RH

09103-08364-000 0910308364000

$4,97

Unit Price

WASHER (8.5X18X2.0)

09160-08120-000 0916008120000

$3,97

Unit Price

PLATE, ENG MTG FR
PLATE, ENGINE MOUNT FRONT

41911-29F00-000 4191129F00000

$47,97

Unit Price

BOLT(8X90)
BOLT

09103-08363-000 0910308363000

$13,97

Unit Price

NUT

08319-31087-000 0831931087000

Not available

PLATE, HEAD MTG RR
PLATE, ENGINE MOUNT REAR

41993-29F10-000 4199329F10000

$29,97

Unit Price

BOLT

09103-08081-000

01550-08507-000

$6,97

Unit Price

NUT

08319-31087-000 0831931087000

Not available

ROLLER, CHAIN CONTROL UPR
ROLLER, CHAIN UPPER

43911-13E00-000 4391113E00000

$24,97

Unit Price

ROLLER, CHAIN CONTROL UPR
ROLLER, CHAIN UPPER

43911-13E10-000 4391113E10000

$24,97

Unit Price

BOLT, CHAIN ROLL *S1
BOLT, UPPER

09103-08083-000 0910308083000

$6,97

Unit Price

WASHER THRUST
WASHER

08211-08201-000 0821108201000

$3,97

Unit Price

SPACER

09180-08215-000 0918008215000

$6,97

Unit Price

ROLLER, CHAIN
ROLLER, CHAIN LOWER

43910-27C11-000 4391027C11000

$73,97

Unit Price

BOLT, CHAIN ROLL *S1
BOLT (8X41)

09103-08083-000 0910308083000

$6,97

Unit Price

WASHER

09181-08111-000 0918108111000

$3,97

Unit Price

PROTECTOR, ENGINE

42510-29F00-000 4251029F00000

$103,97

Unit Price

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

DISCONTINUE

42521-29F00-000

Not available

DISCONTINUE

42531-29F00-000

Not available

BOLT

09111-08087-000 0911108087000

$4,97

Unit Price

HOLDER, BATTERY

41541-29F00-000 4154129F00000

$68,97

Unit Price

BOLT

09111-06072-000 0911106072000

$3,97

Unit Price

BAND, BATTERY HOLDER
BAND

41561-29F00-000 4156129F00000

$23,97

Unit Price

DISCONTINUE

42521-29F00-000

Not available

DISCONTINUE

42531-29F00-000

Not available
