HEADLIGHT (DR-Z400EY / EK1 E24) REFER TO FIG.29C(G-5) FOR DR-Z400EK2/EK3/EK4 E24

HEADLIGHT (DR-Z400EK2 / EK3 / EK4 E24) FOR SUZUKI DR-Z 400 2003

INDICATORS (DR-Z400EY / EK1 E24) REFER TO FIG.30A(G-7) FOR DR-Z400EK2/EK3/EK4 E24

Item numbers

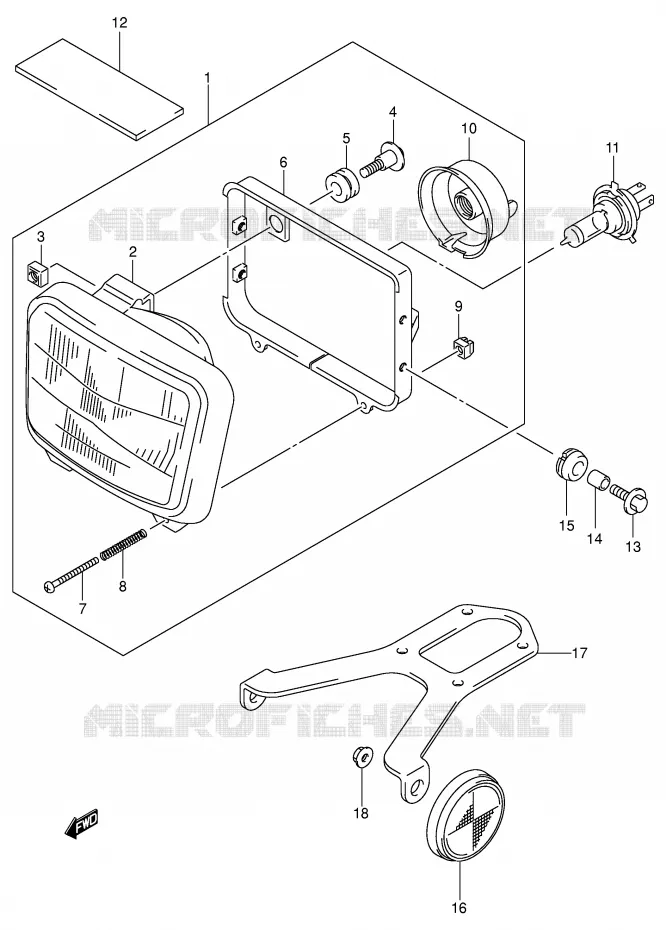

HEADLIGHT (DR-Z400EK2/EK3/EK4 E24) Suzuki MOTO 400 DR-Z 2003 DR-Z400EK3(E1)

1

HEADLAMP ASSY

35100-12EA0-999 3510012EA0999

$408,97

Unit Price

2

UNIT ASSY

35121-12EA0-000 3512112EA0000

$278,97

Unit Price

3

NUT

35135-45900-000 3513545900000

$4,97

Unit Price

4

SCREW, MOUNTING

35136-38A00-000 3513638A00000

$3,97

Unit Price

5

CUSHION

35139-45230-000 3513945230000

$2,97

Unit Price

6

HOUSING

35141-12EA0-000 3514112EA0000

$104,97

Unit Price

7

SCREW, ADJUSTING

35151-12EA0-000 3515112EA0000

$6,97

Unit Price

8

SPRING, ADJUSTING

35154-12EA0-000 3515412EA0000

$6,97

Unit Price

9

NUT, ADJUSTING

35135-12E20-000 3513512E20000

$4,97

Unit Price

10

COVER, SOCKET

35173-01440-000 3517301440000

$17,97

Unit Price

11

BULB(12V8W, TOKAI DENSO)
BULB (12V, 60/55W)

09471-12185-000

Not available

12

PROTECTOR, WIRING HARNESS
CUSHION, HEADLAMP

36920-14D00-000 3692014D00000

$8,97

Unit Price

13

BOLT
BOLT (6X20)

09116-06167-000 0911606167000

$3,97

Unit Price

14

SPACER
SPACER (6.5X10X10)

09180-06310-000 0918006310000

$3,97

Unit Price

15

CUSHION

09320-09018-000 0932009018000

$3,97

Unit Price

16

REFLECTOR, REFLEX FR
REFLEX REFLECTOR ASSY, FR

35950-14A00-000 3595014A00000

$23,97

Unit Price

17

BRACKET, FR SIDE RR
BRACKET, FR SIDE

35956-29F00-000 3595629F00000

$16,97

Unit Price

18

NUT

08316-10053-000

08316-1005B-000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
