WATER PUMP

RADIATOR (MODELE K2 / K3 / K4) FOR SUZUKI DR-Z 400 2003

CLUTCH

Item numbers

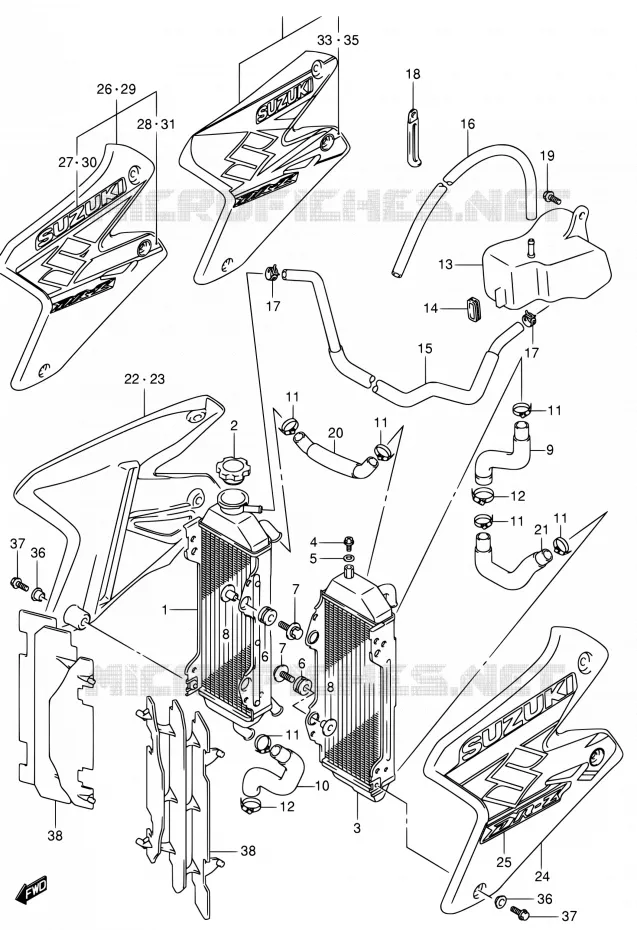

RADIATOR (MODELE K2/K3/K4) Suzuki MOTO 400 DR-Z 2003 DR-Z400EK3(E24)
1
2
3
4
5
6
6
7
7
8
8
9
10
11
11
11
11
11
11
12
12
13
14
15
16
17
17
18
18
19
20
21
26
28
29
31
36
36
37
37
38
38
1
RADIATOR, WATER, R
RADIATOR, RH

17710-29F20-000   1771029F20000

1771029F20000

Unit Price

2
CAP, RADIATOR
CAP, RADIATOR (1.1)

17730-12C30-000   1773012C30000

1773012C30000

Unit Price

3
RADIATOR, WATER, L
RADIATOR, LH

17720-29F20-000   1772029F20000

1772029F20000

Unit Price

4
UNION BOLT,AIR VENT<br />BOLT, AIR RELEASE
UNION BOLT, AIR VENT
BOLT, AIR RELEASE

17568-50F00-000   1756850F00000

1756850F00000

Unit Price

5
GASKET(6.4X11.5X0.84)<br />GASKET, AIR RELEASE
GASKET(6.4X11.5X0.84)
GASKET, AIR RELEASE

09168-06026-000   0916806026000

0916806026000

Unit Price

6
CUSHION, RADIATOR LWR
CUSHION, SUPPORT

17787-19A00-000   1778719A00000

1778719A00000

Unit Price

7
BOLT (6X25)
BOLT (6X25)

09116-06147-000   0911606147000

0911606147000

Unit Price

8
SPACER

09180-06243-000   0918006243000

0918006243000

Unit Price

9
HOSE, RADIATOR INLET
HOSE, INLET

17851-29F21-000   1785129F21000

1785129F21000

Unit Price

10
HOSE, RADIATOR OUTLET
HOSE, OUTLET

17852-29F20-000   1785229F20000

1785229F20000

Unit Price

11
CLAMP
CLAMP

09402-28511-000   0940228511000

0940228511000

Unit Price

12
CLAMP
CLAMP

09402-32511-000   0940232511000

0940232511000

Unit Price

13
TANK, RESERVOIR

17911-29F11-000   1791129F11000

1791129F11000

Unit Price

14
CUSHION, RESERVOIR TANK

17913-29F00-000   1791329F00000

1791329F00000

Unit Price

15
HOSE, RESERVOIR TANK INLET
HOSE, INLET

17981-29F01-000   1798129F01000

1798129F01000

Unit Price

16
HOSE, 5 X 9 X 2000<br />HOSE, OVERFLOW
HOSE, 5 X 9 X 2000
HOSE, OVERFLOW

09352-50901-00B   093525090100B

093525090100B

Unit Price

17
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
18
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

18
CLAMP(L:45 T:0.6)
CLAMP(L:45 T:0.6)

09404-08205-000  

09404-08211-000
 0940408205000

Unit Price

19
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

20
HOSE, RADIATOR JOINT
HOSE, JOINT UPPER

17853-29F10-000   1785329F10000

1785329F10000

Unit Price

21
HOSE, RADIATOR JOINT LWR
HOSE, JOINT LOWER

17854-29F20-000   1785429F20000

1785429F20000

Unit Price

26
DISCONTINUE
COVER, RADIATOR RH (YELLOW)

17760-29F50-YU1   1776029F50YU1

1776029F50YU1
Not available
28
DISCONTINUE
.TAPE, RADIATOR COVER, RH

68665-29F50-KH2   6866529F50KH2

6866529F50KH2
Not available
29
DISCONTINUE
COVER, RADIATOR LH (YELLOW)

17770-29F50-YU1   1777029F50YU1

1777029F50YU1
Not available
31
DISCONTINUE
.TAPE, RADIATOR COVER, LH

68675-29F50-KH2   6867529F50KH2

6867529F50KH2
Not available
36
WASHER<br />WASHER, RADIATOR COVER
WASHER
WASHER, RADIATOR COVER

09169-06060-000   0916906060000

0916906060000

Unit Price

37
BOLT

01547-06123-000  

01547-0612B-000
 0154706123000

Unit Price

38
LOUVER, RADIATOR

17831-37E11-000   1783137E11000

1783137E11000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
