TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI DR-Z 400 2004

FUEL COCK

Item numbers

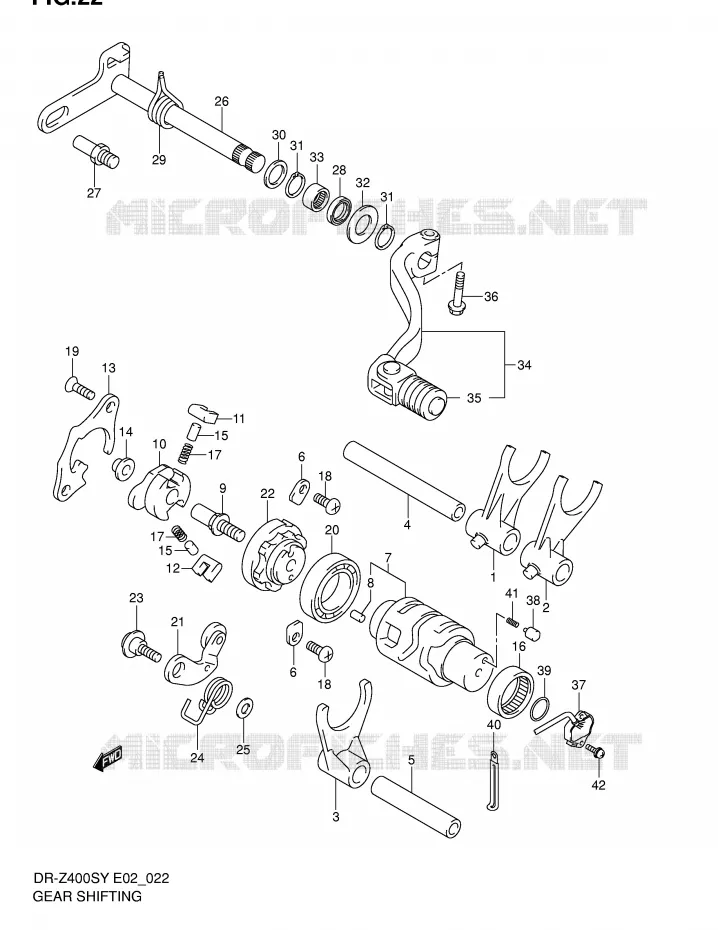

GEAR SHIFTING ASSY Suzuki MOTO 400 DR-Z 2004 DR-Z400SK4(E2)
1
2
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
1
FORK, GEAR SHIFT NO.1

25211-28C01-000   2521128C01000

2521128C01000

Unit Price

2
FORK, GEAR SHIFT NO.2

25221-28C02-000   2522128C02000

2522128C02000

Unit Price

2
FORK, GEAR SHIFT NO.2

25221-37E10-000   2522137E10000

2522137E10000

Unit Price

3
FORK, GEAR SHIFT NO.3

25231-28C02-000   2523128C02000

2523128C02000

Unit Price

4
SHAFT, GEAR SHIFT FORK(L:95)
SHAFT, GEAR FORK NO.1

25411-37F20-000   2541137F20000

2541137F20000

Unit Price

5
SHAFT, GEAR SHIFT FORK(L:60)
SHAFT, GEAR FORK NO.2

25421-27C01-000   2542127C01000

2542127C01000

Unit Price

6
RETAINER<br />RETAINER, SHIFT CAM BEARING
RETAINER
RETAINER, SHIFT CAM BEARING

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

7
CAM, GEAR SHIFT

25310-29F10-000   2531029F10000

2531029F10000

Unit Price

8
PIN<br />PIN, SHIFT CAM
PIN
PIN, SHIFT CAM

04221-04089-000   0422104089000

0422104089000

Unit Price

9
PIN, SHIFT CAM DRIVEN GEAR
PIN, SHIFT

25313-27C02-000   2531327C02000

2531327C02000

Unit Price

10
SHIFTER, GEAR SHIFT CAM

25322-36E00-000   2532236E00000

2532236E00000

Unit Price

11
PAWL, GEAR SHIFT NO.1
PAWL, GEAR SHIFT NO.1

25323-34201-000   2532334201000

2532334201000

Unit Price

12
PAWL, GEAR SHIFT NO.2
PAWL, GEAR SHIFT NO.2

25324-34201-000   2532434201000

2532434201000

Unit Price

13
LIFTER, GEAR SHIFT PAWL

25331-37E10-000   2533137E10000

2533137E10000

Unit Price

14
SPACER<br />ROLLER, GEAR CAM SHIFTER
SPACER
ROLLER, GEAR CAM SHIFTER

09180-07014-000   0918007014000

0918007014000

Unit Price

15
SHIFTING PAUL ROLLER<br />PIN, SHIFT POLE (5X8)
SHIFTING PAUL ROLLER
PIN, SHIFT POLE (5X8)

09261-05003-000   0926105003000

0926105003000

Unit Price

16
R BEARING 25X32X12<br />BEARING, SHIFT CAM LH
R BEARING 25X32X12
BEARING, SHIFT CAM LH

09263-25018-000   0926325018000

0926325018000

Unit Price

17
K S PAWL SPRING<br />SPRING, SHIFT PAWL RETURN
K S PAWL SPRING
SPRING, SHIFT PAWL RETURN

09440-04003-000   0944004003000

0944004003000

Unit Price

18
BOLT, 6X12
SCREW, SHIFT CAM BEARING

09125-06110-000   0912506110000

0912506110000

Unit Price

19
SCREW<br />SCREW, SHIFT PAWL LIFTER
SCREW
SCREW, SHIFT PAWL LIFTER

09126-06011-000   0912606011000

0912606011000

Unit Price

20
BEARING, RH<br />BEARING, SHIFT CAM RH
BEARING, RH
BEARING, SHIFT CAM RH

08113-69050-000   0811369050000

0811369050000

Unit Price

21
STOPPER, GEAR SHIFT CAM
STOPPER, SHIFT CAM

25350-29F00-000   2535029F00000

2535029F00000

Unit Price

22
PLATE, GEAR SHIFT STOPPER
PLATE, SHIFT CAM STOPPER

25381-36E11-000   2538136E11000

2538136E11000

Unit Price

23
BOLT, CAM STOPPER ARM

25357-29F00-000   2535729F00000

2535729F00000

Unit Price

24
SPRING, SHIFT CAM STOPPER
SPRING, SHIFT CAM

25355-29F00-000   2535529F00000

2535529F00000

Unit Price

25
WASHER, THRUST
WASHER, SHIFT CAM

08211-06121-000   0821106121000

0821106121000

Unit Price

26
SHAFT, GEAR SHIFT

25510-29F00-000   2551029F00000

2551029F00000

Unit Price

27
STOPPER, SHIFT ARM
STOPPER, GEAR SHIFT ARM

25671-38B00-000   2567138B00000

2567138B00000

Unit Price

28
SEAL,OIL(14X22X6)<br />SEAL, SHIFT SHAFT OIL
SEAL, OIL(14X22X6)
SEAL, SHIFT SHAFT OIL

09283-14006-000   0928314006000

0928314006000

Unit Price

29
SPRING
SPRING, SHIFT SHAFT RETURN

09444-20004-000   0944420004000

0944420004000

Unit Price

30
WASHER
WASHER, GEAR SHAFT

09181-14139-000   0918114139000

0918114139000

Unit Price

31
CIRCLIP

08331-31146-000  

08331-3114A-000
 0833131146000

Unit Price

32
WASHER, 14X29X1.5

09160-14046-000  

09160-14046-XC0
 0916014046000

Unit Price

33
BEARING, RR CUSHION<br />BEARING, GEAR SHAFT (14X20X12)
BEARING, RR CUSHION
BEARING, GEAR SHAFT (14X20X12)

09263-14027-000   0926314027000

0926314027000

Unit Price

34
LEVER ASSY, GEAR SHIFT

25600-05D02-000  

25600-05D03-000
 2560005D02000

Unit Price

35
RUBBER, GEAR SHIFT PEDAL
RUBBER, GEAR PEDAL

25652-03D00-000   2565203D00000

2565203D00000

Unit Price

36
BOLT

01547-06253-000  

01547-0625B-000
 0154706253000

Unit Price

37
BASE ASSY, GEAR SHIFT TERMINAL
BASE ASSY, GEAR SHIFT TERM

37730-20F10-000   3773020F10000

3773020F10000

Unit Price

38
K S PAWL ROLLER<br />CONTACT
K S PAWL ROLLER
CONTACT

09209-05011-000   0920905011000

0920905011000

Unit Price

39
O RING<br />O RING (D:2.4,ID:26.2)
O RING
O RING (D:2.4, ID:26.2)

09280-26005-000   0928026005000

0928026005000
Not available
40
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

41
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04010-000   0944004010000

0944004010000

Unit Price

42
SCREW

02112-05163-000  

02112-0516B-000
 0211205163000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
