LEFT LEVER - HANDGRIP

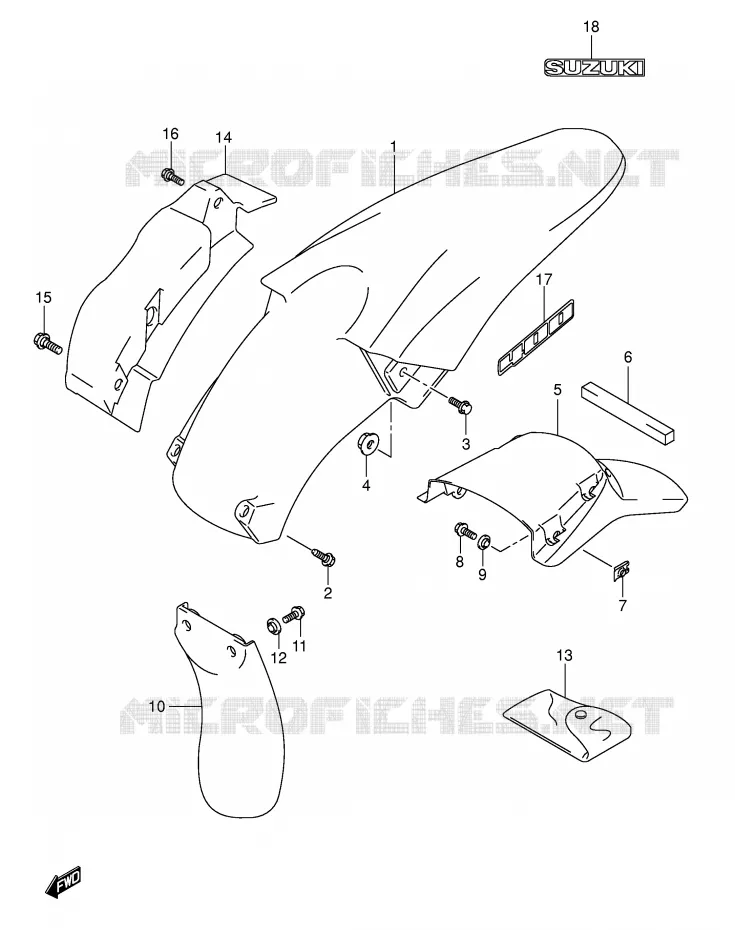

REAR FENDER FOR SUZUKI DR-Z 400 2005

LABEL

Item numbers

FENDER, REAR (YELLOW)

63113-29F10-YU1 6311329F10YU1

Not available

DISCONTINUE
FENDER, REAR (YELLOW)

63113-29F30-YU1 6311329F30YU1

Not available

FENDER, REAR (YELLOW)

63113-29FC0-YU1 6311329FC0YU1

Not available

FENDER, REAR (YELLOW)

63113-29FE0-YU1 6311329FE0YU1

Not available

BOLT, 6X16
BOLT, FRONT

09113-06001-000 0911306001000

$4,97

Unit Price

BOLT
BOLT, CENTER

09111-06081-000 0911106081000

$7,97

Unit Price

NUT

08319-31063-000

08319-3106A-000

$3,97

Unit Price

EXTENSION, RR FENDER
EXTENSION, REAR FENDER

63311-29F00-000 6331129F00000

$77,97

Unit Price

DISCONTINUE
EXTENSION, REAR FENDER

63311-29F10-000 6331129F10000

Not available

CUSHION(10X10X120)
CUSHION

63312-29F00-000 6331229F00000

$5,97

Unit Price

NUT INST CENTER

09148-05021-000

09148-05013-000

$2,97

Unit Price

DISCONTINUE
BOLT

01550-05103-000

Not available

WASHER

09169-05021-000

09169-05024-000

$3,97

Unit Price

MUDGUARD, RR FENDER FR
MUDGUARD, FRONT

63411-29F00-000 6341129F00000

$25,97

Unit Price

BOLT

01547-06163-000

01547-0616B-000

$4,97

Unit Price

WASHER

09169-06045-000 0916906045000

$2,97

Unit Price

SPANNER, OPEN(6.4X6.8)

09813-00039-000

09813-00134-000

$22,97

Unit Price

MUDGUARD, RR FENDER, R
MUDGUARD, REAR FENDER RH

63114-29F00-000 6311429F00000

$29,97

Unit Price

BOLT
BOLT, LOWER

09111-06081-000 0911106081000

$7,97

Unit Price

BOLT, 6X12

63161-43E00-000

09111-06107-000

$3,97

Unit Price

EMBLEM, RR FENDER
EMBLEM, REAR FENDER "400"

68171-29F20-GY8 6817129F20GY8

$17,97

Unit Price

DISCONTINUE
EMBLEM, REAR FENDER "400"

68171-29F10-CFL

Not available

DISCONTINUE
EMBLEM, REAR FENDER "400"

68171-29F10-GY8

Not available

EMBLEM, 'SUZUKI'

68721-13A00-GY8

68721-13A01-GY8

$15,97

Unit Price

DISCONTINUE
EMBLEM, "SUZUKI"

68721-13A00-CFL

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
