CRANKCASE COVER

CRANKSHAFT FOR SUZUKI DR-Z 400 2005

STARTER MOTOR CLUTCH

Item numbers

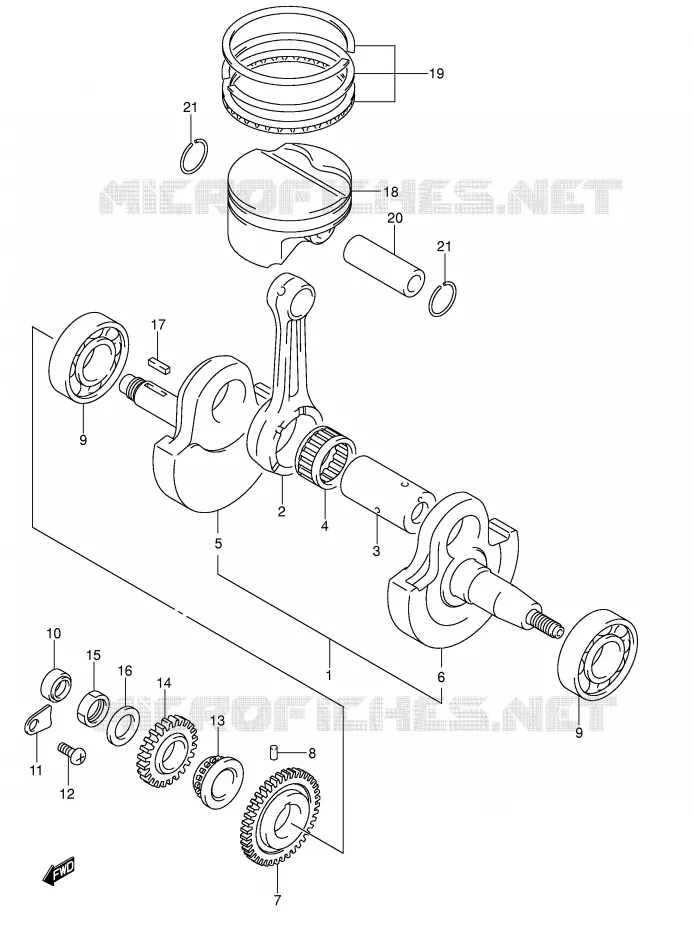

CRANKSHAFT Suzuki MOTO 400 DR-Z 2005 DR-Z400SK5(E3/E28)
1
1
2
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
21
1
12200-07G02
CRANKSHAFT ASSY

12200-07G00-000  

1220007G00000
Not available
1
DISCONTINUE
CRANKSHAFT ASSY

12200-07G02-000  

1220007G02000
Not available
2
CONNECTING ROD ASSY

12160-29F01-0B0  

12160-29F10-0B0
 1216029F010B0

Unit Price

3
PIN, CRANK

12210-29F10-000  

12210-29F20-000
 1221029F10000

Unit Price

4
BEARING, 35X43X2

09263-35035-0B0  

09263-35047-0B0
 09263350350B0

Unit Price

5
CRANKSHAFT, R
CRANKSHAFT, RH

12221-07G01-000   1222107G01000

1222107G01000

Unit Price

6
CRANKSHAFT, L
CRANKSHAFT, LH

12261-07G00-000   1226107G00000

1226107G00000

Unit Price

7
GEAR, CRANK BALANCER DRIVE
GEAR, BALANCER DRIVE

12661-29F00-000   1266129F00000

1266129F00000

Unit Price

8
KNOCK PIN, SPROCKET
PIN

09261-05005-000   0926105005000

0926105005000

Unit Price

9
BEARING

09262-30100-000   0926230100000

0926230100000

Unit Price

10
OIL SEAL
OIL SEAL, RH (14X24X6)

09282-14003-000   0928214003000

0928214003000

Unit Price

11
RETAINER, BEARING
RETAINER, OIL SEAL RH

24742-18A00-000   2474218A00000

2474218A00000

Unit Price

12
SCREW
SCREW

02112-0612B-000   021120612B000

021120612B000

Unit Price

13
SPROCKET, CAM CHAIN DRIVE

12731-29F10-000   1273129F10000

1273129F10000

Unit Price

14
GEAR, PRIMARY DRIVE

21111-29F10-000   2111129F10000

2111129F10000

Unit Price

15
NUT

09140-18012-000   0914018012000

0914018012000

Unit Price

16
WASHER
LOCK WASHER

09164-18008-000   0916418008000

0916418008000

Unit Price

17
KEY
KEY, GEAR

09421-05002-000   0942105002000

0942105002000

Unit Price

18
PISTON

12111-29F00-0F0   1211129F000F0

1211129F000F0

Unit Price

19
RING SET, PISTON

12140-29F00-000   1214029F00000

1214029F00000

Unit Price

20
PIN, PISTON

12151-24F10-000   1215124F10000

1215124F10000

Unit Price

21
CIRCLIP PISTON PIN<br />CIRCLIP
CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000   0938120004000

0938120004000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
