Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

MAGNE TO

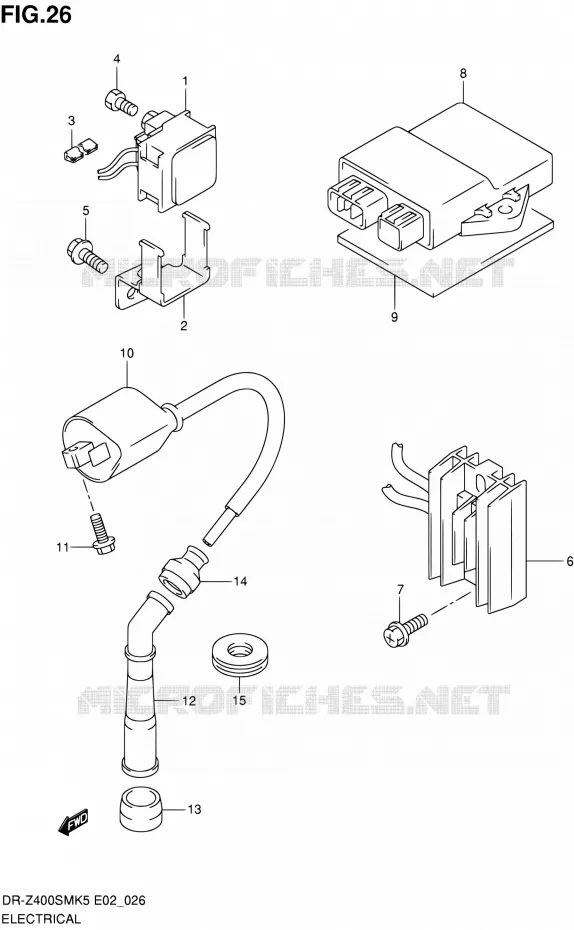

ELCTRICAL FOR SUZUKI DR-Z 400 2006

BATTERY

Item numbers
ELCTRICAL Suzuki MOTO 400 DR-Z 2006 DR-Z400SMK6(E19)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
RELAY ASSY, STARTING MOTOR

31800-29F00-000  

31800-29F01-000
 3180029F00000

Unit Price

2
BRACKET, STARTING MOTOR RELAY
BRACKET, STARTING MOTOR

31811-29F00-000   3181129F00000

3181129F00000

Unit Price

3
PROTECTOR, STARTING MOTOR LEAD
PROTECTOR, STARTING MOTOR

31812-29F00-000   3181229F00000

3181229F00000

Unit Price

4
SCREW(6X8)<br />BOLT, STARTING MOTOR (6X8)
SCREW(6X8)
BOLT, STARTING MOTOR (6X8)

09128-06013-000   0912806013000

0912806013000

Unit Price

5
BOLT<br />BOLT, RELAY BRACKET
BOLT
BOLT, RELAY BRACKET

01550-0612B-000   015500612B000

015500612B000

Unit Price

6
RECTIFIER ASSY

32800-29F00-000   3280029F00000

3280029F00000

Unit Price

7
SCREW

02162-0620B-000  

02162-0620C-000
 021620620B000

Unit Price

8
CDI UNIT

32900-29FC0-000   3290029FC0000

3290029FC0000
Not available
9
PROTECTOR(170X95X3.0)<br />PROTECTOR (170X95X3)
PROTECTOR(170X95X3.0)
PROTECTOR (170X95X3)

33651-37000-000   3365137000000

3365137000000

Unit Price

10
COIL ASSY, IGNITION

33410-09F00-000   3341009F00000

3341009F00000

Unit Price

11
BOLT
BOLT

01547-0616B-000   015470616B000

015470616B000

Unit Price

12
CAP,SPARK PLUG<br />CAP ASSY, SPARK PLUG
CAP, SPARK PLUG
CAP ASSY, SPARK PLUG

33510-48B10-000   3351048B10000

3351048B10000

Unit Price

13
SEAL, SPARK PLUG
SEAL, SPARK PLUG CAP

33541-23E10-000   3354123E10000

3354123E10000

Unit Price

14
SEAL, HIGH TENSION CORD
SEAL, HIGH TENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

15
COVER, SPARK PLUG CAP
COVER, SPARK PLUG CAP

33543-33E01-000   3354333E01000

3354333E01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
