FUEL TANK (MODEL K5) REFER TO FIG.41A(H- 7) FOR MODEL K6

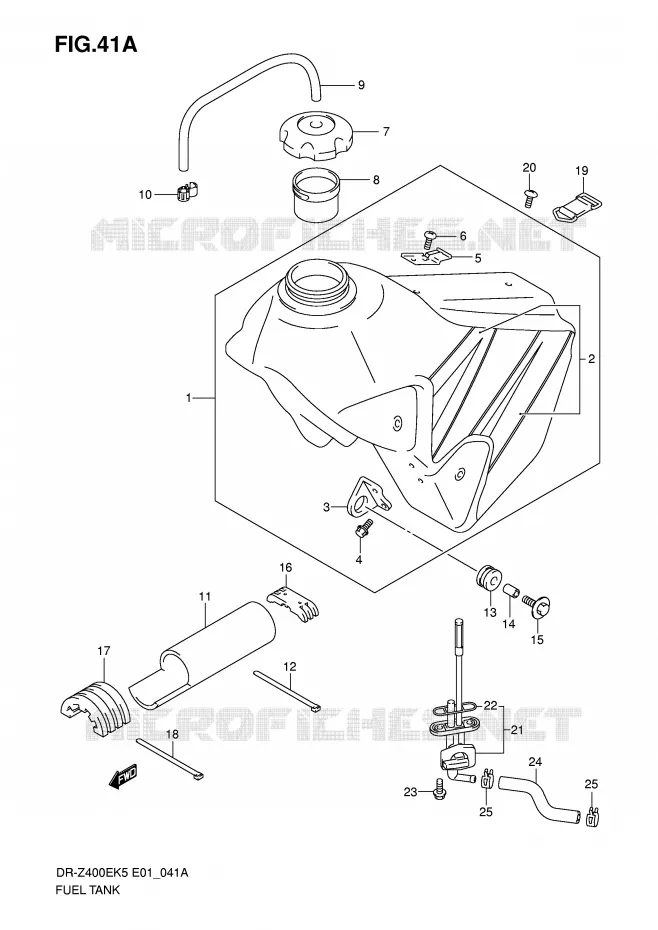

FUEL TANK (MODEL K6) FOR SUZUKI DR-Z 400 2007

FUEL TANK (MODEL K7) REFER TO FIG.41C(H- 9) FOR MODEL K9

Item numbers

TANK ASSY, FUEL (YELLOW)

49100-29F40-YU1 4910029F40YU1

Not available

DISCONTINUE
TAPE SET

68110-29FD0-CFK 6811029FD0CFK

Not available

BRACKET, FUEL TANK FR
BRACKET, FUEL TANK FRONT

44131-27C01-000 4413127C01000

$17,97

Unit Price

BOLT

01547-06123-000

01547-0612B-000

$4,97

Unit Price

HOOK, SEAT FR
HOOK, SEAT FRONT

44132-44E01-000 4413244E01000

$17,97

Unit Price

SCREW

02142-06123-000

02142-0612B-000

$2,97

Unit Price

CAP ASSY, FUEL TANK FILLER

44200-29F00-000

44200-29F01-000

$56,97

Unit Price

TUBE, FILLER INLET
TUBE, INLET

44199-19A00-000 4419919A00000

$9,97

Unit Price

HOSE

09352-50823-600

09352-50005-600

$11,97

Unit Price

CLAMP, BREATHER HOSE
CLAMP, HOSE

44486-40200-000 4448640200000

$6,97

Unit Price

SHIELD, FUEL TANK

44194-29F00-000 4419429F00000

$45,97

Unit Price

CLAMP(L:300)
CLAMP

09407-30402-000 0940730402000

$6,97

Unit Price

CUSHION(8.7X26X14)

14762-01B01-000

14762-01B02-000

$7,97

Unit Price

SPACER (6.5X9X13.5)

09180-06268-000 0918006268000

$3,97

Unit Price

BOLT

09118-06112-000 0911806112000

$4,97

Unit Price

CUSHION, FUEL TANK RR
CUSHION, REAR

44542-29F00-000 4454229F00000

$20,97

Unit Price

CUSHION, FUEL TANK

44541-29F00-000 4454129F00000

$30,97

Unit Price

CLAMP(L:300)
CLAMP

09407-30402-000 0940730402000

$6,97

Unit Price

BAND, FUEL TANK RR
BAND, FUEL TANK REAR

44560-44E00-000 4456044E00000

$18,97

Unit Price

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

COCK ASSY, FUEL

44300-29F10-000 4430029F10000

$103,97

Unit Price

GASKET, JOINT

44348-87420-000

44348-87421-000

$10,97

Unit Price

BOLT

01547-06163-000

01547-0616B-000

$4,97

Unit Price

DISCONTINUE
HOSE, FUEL

44421-29F00-000

Not available

CLIP

09401-11413-000 0940111413000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
