FRAME

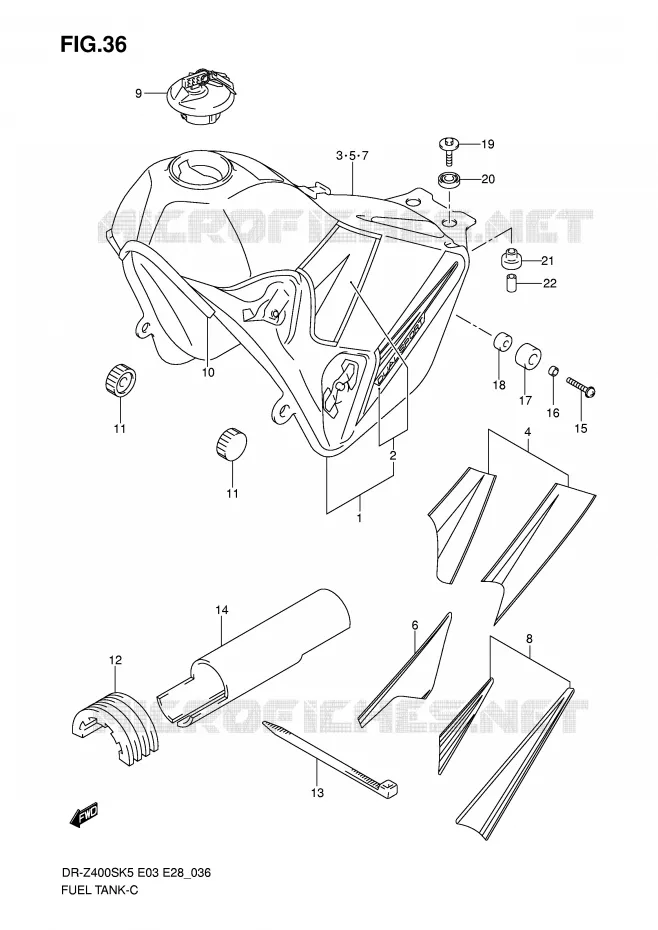

FUEL TANK (MODEL K5 / K6 / K7 / K8) FOR SUZUKI DR-Z 400 2007

FUEL TANK (MODEL K9)

DISCONTINUE
TANK ASSY, FUEL (BLUE)

44100-29FG0-YC2 4410029FG0YC2

Not available

DISCONTINUE
TANK ASSY, FUEL (YELLOW)

44100-29FG0-YU1 4410029FG0YU1

Not available

TANK ASSY, FUEL (BLUE)

44100-29FH0-YC2 4410029FH0YC2

Not available

TANK ASSY, FUEL (YELLOW)

44100-29FH0-YU1 4410029FH0YU1

Not available

DISCONTINUE
TAPE SET

68110-29FB0-AZR 6811029FB0AZR

Not available

DISCONTINUE
TAPE SET

68110-29FB0-BEV 6811029FB0BEV

Not available

DISCONTINUE
TANK ASSY, FUEL (BLUE)

49100-29F50-YC2 4910029F50YC2

Not available

DISCONTINUE
TANK ASSY, FUEL (YELLOW)

49100-29F50-YU1

Not available

TANK ASSY, FUEL (BLUE)

49100-29F60-YC2 4910029F60YC2

Not available

TANK ASSY, FUEL (YELLOW)

49100-29F60-YU1 4910029F60YU1

Not available

DISCONTINUE
TAPE SET

68110-29FE0-CFK 6811029FE0CFK

Not available

DISCONTINUE
TAPE SET

68110-29FE0-CMF 6811029FE0CMF

Not available

DISCONTINUE
TANK ASSY, FUEL (BLUE)

49100-29FC0-YC2 4910029FC0YC2

Not available

TANK ASSY, FUEL (YELLOW)

49100-29FC0-YU1 4910029FC0YU1

Not available

TANK ASSY, FUEL (BLUE)

49100-29FD0-YC2 4910029FD0YC2

Not available

TANK ASSY, FUEL (YELLOW)

49100-29FD0-YU1 4910029FD0YU1

Not available

DISCONTINUE
TAPE SET

68110-29FH0-DUN 6811029FH0DUN

Not available

DISCONTINUE
TAPE SET

68110-29FH0-DUP 6811029FH0DUP

Not available

DISCONTINUE
TANK ASSY, FUEL (BLACK)

49100-29FL0-019 4910029FL0019

Not available

DISCONTINUE
TANK ASSY, FUEL (BLUE)

49100-29FL0-YKY 4910029FL0YKY

Not available

TANK ASSY, FUEL (BLACK)

49100-29FM0-019 4910029FM0019

Not available

TANK ASSY, FUEL (BLUE)

49100-29FM0-YKY 4910029FM0YKY

Not available

DISCONTINUE
TAPE SET

68110-29FU0-EVE 6811029FU0EVE

Not available

DISCONTINUE
TAPE SET

68110-29FU0-EVJ 6811029FU0EVJ

Not available

CAP SET, FUEL TANK

44200-05820-000 4420005820000

$158,97

Unit Price

44200-29822

44200-29820-000

Not available

MOLDING
MOLDING, FRONT

68241-04X50-00B 6824104X5000B

$39,97

Unit Price

CUSHION
CUSHION, FRONT

09329-10016-000 0932910016000

$5,97

Unit Price

CUSHION, FUEL TANK
CUSHION, UPPER

44541-29F00-000 4454129F00000

$34,97

Unit Price

CLAMP(L:300)
CLAMP

09407-30402-000 0940730402000

$6,97

Unit Price

SHIELD, FUEL TANK

44194-29F00-000 4419429F00000

$48,97

Unit Price

SCREW

02112-16303-000 0211216303000

Not available

SPACER(6.5X20X9)
SPACER

09180-06215-000 0918006215000

$7,97

Unit Price

CUSHION
CUSHION, SIDE

45149-14D00-000 4514914D00000

$8,97

Unit Price

SPACER, 6.5X9X5
SPACER

09180-06306-000 0918006306000

$3,97

Unit Price

BOLT
BOLT, REAR

09116-06172-000 0911606172000

$4,97

Unit Price

CUSHION
CUSHION, UPPER

09320-14022-000 0932014022000

$6,97

Unit Price

CUSHION(9X24X18)

09320-10020-000

09320-10071-000

$4,97

Unit Price

SPACER, 6.5X9X18
SPACER

09180-06271-000 0918006271000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
