Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL HOSE

WATER PUMP FOR SUZUKI DR-Z 400 2007

RADIATOR

Item numbers

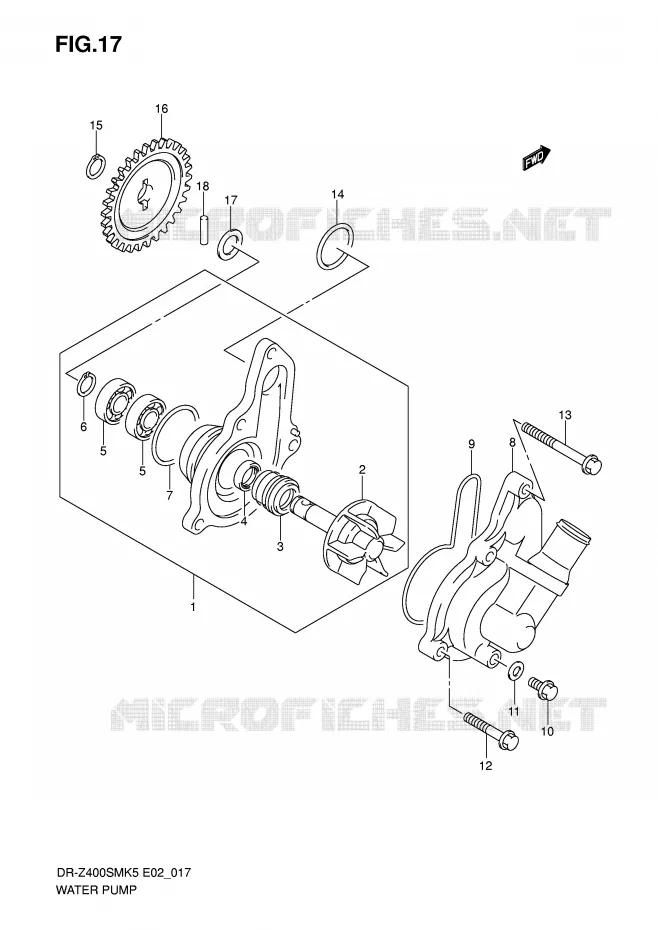

WATER PUMP Suzuki MOTO 400 DR-Z 2007 DR-Z400SMK7(E2)
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
PUMP ASSY, WATER

17400-29F10-000  

17400-29F11-000
 1740029F10000

Unit Price

2
IMPELLER SHAFT
IMPELLER/SHAFT

17491-29F10-000   1749129F10000

1749129F10000

Unit Price

3
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F10-000  

17470-02F11-000
 1747002F10000

Unit Price

4
OIL SEAL, WATER PUMP<br />OIL SEAL
OIL SEAL, WATER PUMP
OIL SEAL

09283-10004-000   0928310004000

0928310004000

Unit Price

5
BEARING
BEARING

08110-69000-000   0811069000000

0811069000000

Unit Price

6
08332-1108A
E RING

08332-11086-000  

0833211086000
Not available
7
O RING,WATER PUMP HOLDER<br />O RING
O RING, WATER PUMP HOLDER
O RING

17435-33400-000   1743533400000

1743533400000

Unit Price

8
CASE, WATER PUMP

17410-29F21-000   1741029F21000

1741029F21000

Unit Price

9
O RING, WATER PUMP CASE
O RING

17435-29F00-000   1743529F00000

1743529F00000

Unit Price

10
BOLT
BOLT, DRAIN

01547-0610B-000   015470610B000

015470610B000

Unit Price

11
GASKET(6.4X11.5X0.84)<br />GASKET
GASKET(6.4X11.5X0.84)
GASKET

09168-06026-000   0916806026000

0916806026000

Unit Price

12
BOLT,CLUTCH COVER IN<br />BOLT (6X30)
BOLT, CLUTCH COVER IN
BOLT (6X30)

09103-06204-000   0910306204000

0910306204000

Unit Price

13
BOLT, 6X45
BOLT

09103-06209-000   0910306209000

0910306209000

Unit Price

14
OIL PLUG O RING<br />O RING (D:2.4,ID:21.8)
OIL PLUG O RING
O RING (D:2.4, ID:21.8)

09280-22001-000   0928022001000

0928022001000

Unit Price

15
CIRCLIP

08331-31106-000  

08331-31109-000
 0833131106000

Unit Price

16
GEAR, WATER PUMP DRIVEN

17461-29F00-000   1746129F00000

1746129F00000

Unit Price

17
SHIM,10X18X0.5<br />WASHER
SHIM, 10X18X0.5
WASHER

09181-10158-000   0918110158000

0918110158000

Unit Price

18
PIN(4X18.5)<br />PIN
PIN(4X18.5)
PIN

09261-04001-000   0926104001000

0926104001000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 400 DR-Z 2007
