CYLINDER

CRANKCASE FOR SUZUKI DR-Z 400 2009

CRANKCASE COVER

Item numbers

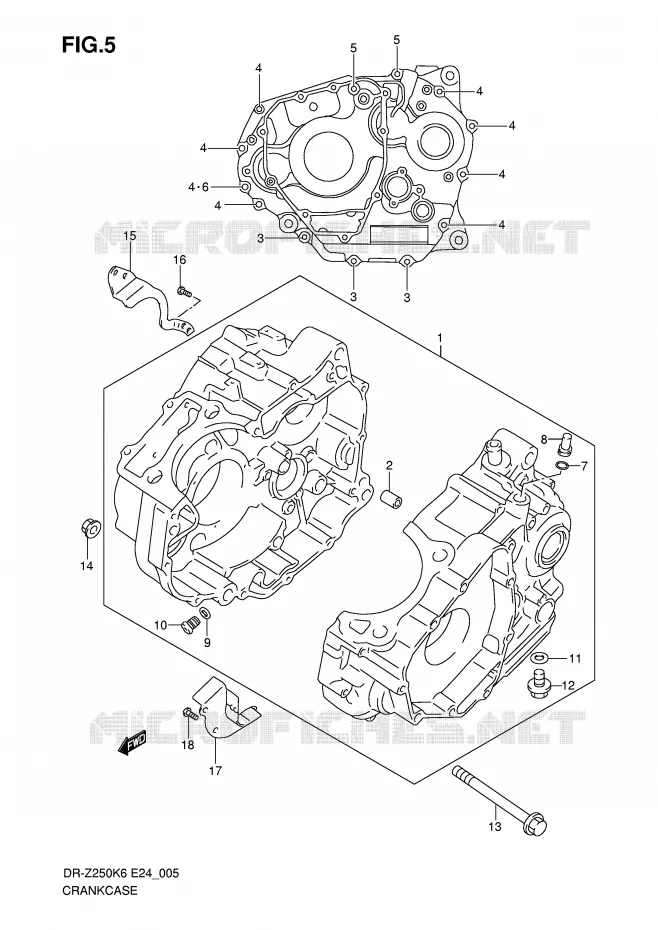

CRANKCASE Suzuki MOTO 400 DR-Z 2009 DR-Z250K9(E24)
1
2
3
3
3
4
4
4
4
4
4
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
CRANKCASE SET

11301-13841-000   1130113841000

1130113841000
Not available
2
PIN
PIN, IDLE GEAR NO.2 (L:27)

09202-10006-000   0920210006000

0920210006000

Unit Price

3
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

4
BOLT
BOLT

01547-0650A-000   015470650A000

015470650A000

Unit Price

5
BOLT

01547-0665A-000   015470665A000

015470665A000

Unit Price

6
GASKET<br />GASKET, CRANKCASE BOLT
GASKET
GASKET, CRANKCASE BOLT

09168-06023-000   0916806023000

0916806023000
Not available
7
O RING<br />O RING (D:1.2,ID:4.0)
O RING
O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

8
JET

09493-24012-000   0949324012000

0949324012000
Not available
9
CRNK DRAIN PLUG GASK<br />GASKET (10X14X3.6)
CRNK DRAIN PLUG GASK
GASKET (10X14X3.6)

09168-10002-000   0916810002000

0916810002000

Unit Price

10
PLUG,OIL GALL<br />PLUG
PLUG, OIL GALL
PLUG

09248-10010-000   0924810010000

0924810010000

Unit Price

11
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000
Not available
12
PLUG
PLUG

09247-12106-000   0924712106000

0924712106000

Unit Price

13
BOLT
BOLT (10X100)

09103-10242-000   0910310242000

0910310242000

Unit Price

14
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

15
PLATE, BREATHER OIL RETURN

11317-13E10-000   1131713E10000

1131713E10000

Unit Price

16
SCREW

02112-0612A-000  

02112-0612B-000
 021120612A000

Unit Price

17
SEPARATOR, CRANKCASE
SEPARATOR, CRANKCASE OIL

11323-13E01-000   1132313E01000

1132313E01000

Unit Price

18
BOLT, 6X12
SCREW (6X12)

09125-06110-000   0912506110000

0912506110000

Unit Price
