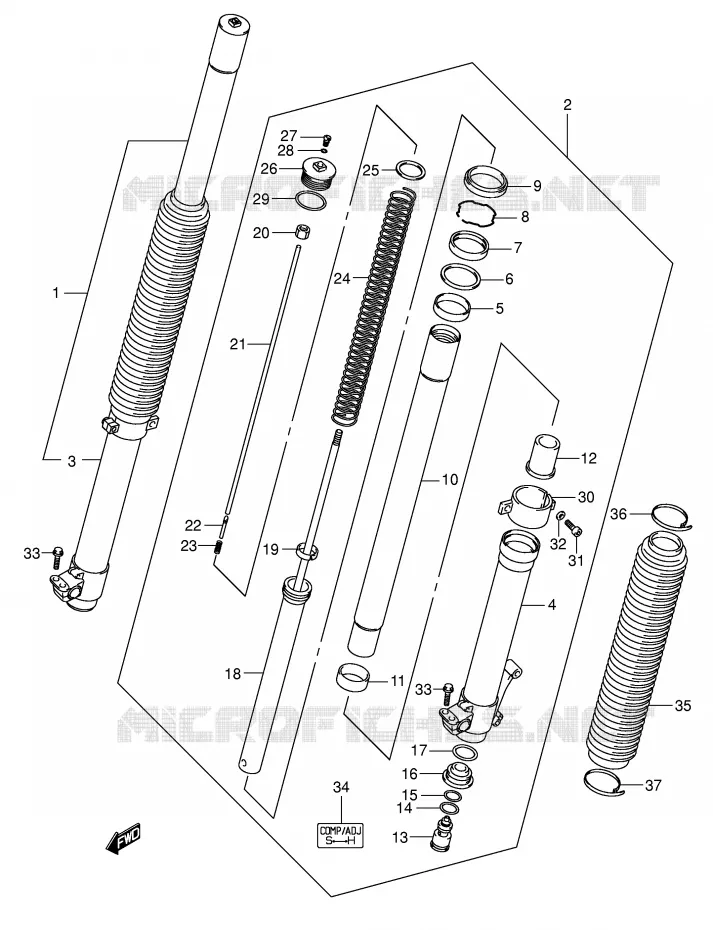

FRONT FORK FOR SUZUKI DR-Z 400 2009

STEERING STEM (E1,P37) REFER TO FIG.57(K- 6) FOR E24

Item numbers

DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-29F00-000 5110329F00000

$2 299,97

Unit Price

DAMPER ASSY, FRONT FORK RH

51103-29F50-000 5110329F50000

Not available

DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-29F00-000 5110429F00000

$2 471,97

Unit Price

DAMPER ASSY, FRONT FORK LH

51104-29F50-000 5110429F50000

Not available

TUBE, OUTER, R
TUBE, OUTER RH

51130-29F00-000 5113029F00000

$885,97

Unit Price

TUBE, OUTER, L
TUBE, OUTER LH

51140-29F00-000 5114029F00000

$885,97

Unit Price

BUSH, GUIDE

51167-36E80-000 5116736E80000

$27,97

Unit Price

SPACER, SEAL

51158-36E00-000 5115836E00000

$11,97

Unit Price

SEAL, OIL

51153-36E00-000 5115336E00000

$34,97

Unit Price

RING, STOPPER

51156-36E00-000 5115636E00000

$10,97

Unit Price

SEAL, DUST

51173-36E00-000 5117336E00000

$36,97

Unit Price

TUBE, INNER

51110-29F00-000 5111029F00000

$307,97

Unit Price

BUSH, SLIDE

51121-36E40-000 5112136E40000

$35,97

Unit Price

PIECE, OIL LOCK

51195-29F00-000 5119529F00000

$62,97

Unit Price

BOLT, CTR
BOLT, CENTER

51170-29F00-000 5117029F00000

$220,97

Unit Price

O RING

51175-29F00-000 5117529F00000

$5,97

Unit Price

O RING

51174-29F00-000 5117429F00000

$5,97

Unit Price

PLATE, END

51205-29F00-000 5120529F00000

$55,97

Unit Price

O RING

51117-27C40-000 5111727C40000

$8,97

Unit Price

ROD, FR DAMPER
ROD, FRONT DAMPER

51190-29F00-000 5119029F00000

$487,97

Unit Price

BUSH, SLIDE

51122-29F00-000 5112229F00000

$22,97

Unit Price

NUT

51827-33E00-000 5182733E00000

$16,97

Unit Price

ROD, PUSH

51191-29F00-000 5119129F00000

$19,97

Unit Price

NEEDLE

51192-05D80-000 5119205D80000

$13,97

Unit Price

SPRING, PUSH ROD

51193-28E00-000 5119328E00000

$7,97

Unit Price

SPRING, FR(K=8.63N/0.88KG)
SPRING, FRONT

51171-29F00-000 5117129F00000

$110,97

Unit Price

JOINT, SPRING

51192-36E00-000 5119236E00000

$10,97

Unit Price

BOLT, FORK

51351-29F00-000 5135129F00000

$160,97

Unit Price

BOLT, PLUG

51357-28E30-000 5135728E30000

$16,97

Unit Price

O RING, PLUG

51358-28E30-000 5135828E30000

$5,97

Unit Price

O RING

51117-36E00-000 5111736E00000

$8,97

Unit Price

HOLDER, BOOT

51203-29F00-000 5120329F00000

$48,97

Unit Price

BOLT

07130-05207-000 0713005207000

$3,97

Unit Price

WASHER(5.5X10X1)
WASHER

09160-05044-000 0916005044000

$2,97

Unit Price

BOLT, HANDLE HOLDER(8X35)
BOLT

51321-27C40-000 5132127C40000

$7,97

Unit Price

LABEL

51149-29E40-000 5114929E40000

$8,97

Unit Price

BOOT

51571-29F00-019

51571-29F01-019

$116,97

Unit Price

BAND, BOOT UPR
BAND, BOOT UPPER

51575-29F00-000 5157529F00000

$20,97

Unit Price

BAND, BOOT LWR
BAND, BOOT LOWER

51576-29F00-000 5157629F00000

$13,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
