HEADLIGHT (E2,E19,E54) REFER TO FIG.29A(G- 9) FOR E24

HEADLIGHT (E24) FOR SUZUKI DR-Z 400 2009

INDICATORS (MODEL K5) REFER TO FIG.30A(G-11) FOR MODEL K6/K7/K8

Item numbers

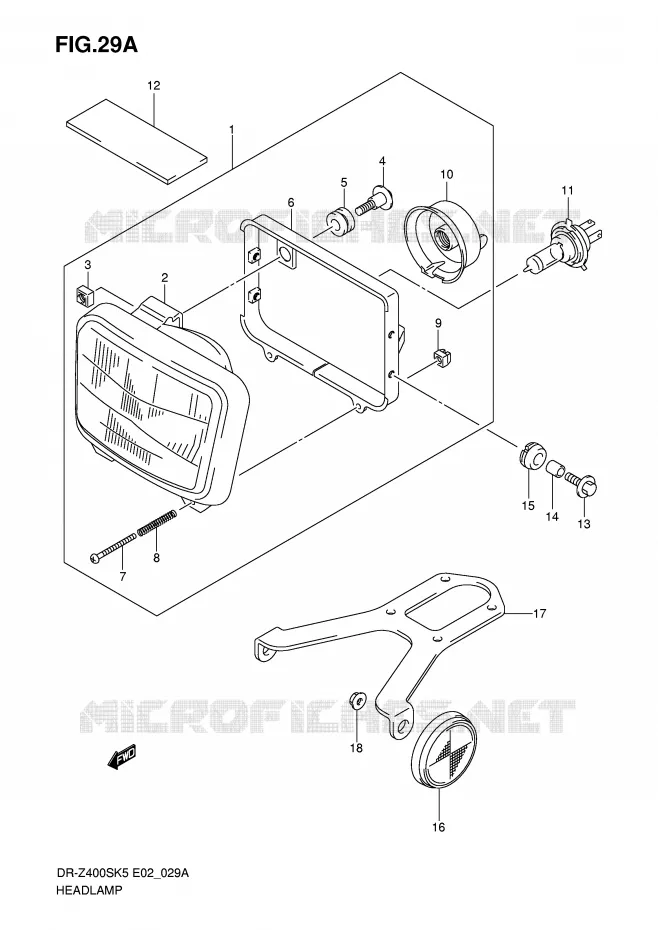

HEADLIGHT (E24) Suzuki MOTO 400 DR-Z 2009 DR-Z400SK9(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
HEADLAMP ASSY

35100-12EA0-999   3510012EA0999

3510012EA0999

Unit Price

2
UNIT ASSY

35121-12EA0-000   3512112EA0000

3512112EA0000

Unit Price

3
NUT
NUT

35135-45900-000   3513545900000

3513545900000

Unit Price

4
SCREW, MOUNTING

35136-38A00-000   3513638A00000

3513638A00000

Unit Price

5
CUSHION

35139-45230-000   3513945230000

3513945230000

Unit Price

6
HOUSING

35141-12EA0-000   3514112EA0000

3514112EA0000

Unit Price

7
SCREW, ADJUSTING

35151-12EA0-000   3515112EA0000

3515112EA0000

Unit Price

8
SPRING, ADJUSTING

35154-12EA0-000   3515412EA0000

3515412EA0000

Unit Price

9
NUT, ADJUSTING
NUT, ADJUSTING

35135-12E20-000   3513512E20000

3513512E20000

Unit Price

10
COVER, SOCKET

35173-01440-000   3517301440000

3517301440000

Unit Price

11
BULB(12V8W, TOKAI DENSO)
BULB (12V, 60/55W)

09471-12185-000  

0947112185000
Not available
12
PROTECTOR, WIRING HARNESS
CUSHION, HEADLAMP

36920-14D00-000   3692014D00000

3692014D00000

Unit Price

13
BOLT<br />BOLT (6X20)
BOLT
BOLT (6X20)

09116-06167-000   0911606167000

0911606167000

Unit Price

14
SPACER<br />SPACER (6.5X10X10)
SPACER
SPACER (6.5X10X10)

09180-06310-000   0918006310000

0918006310000

Unit Price

15
CUSHION

09320-09018-000   0932009018000

0932009018000

Unit Price

16
REFLEX REFLECTOR ASSY, FR SIDE

35950-14A10-000  

35950-14A11-000
 3595014A10000

Unit Price

17
BRACKET, FR SIDE RR
BRACKET, FRONT SIDE REAR

35956-29F00-000   3595629F00000

3595629F00000

Unit Price

18
NUT
NUT

08316-1005B-000   083161005B000

083161005B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
