FUEL TANK (MODEL K9)

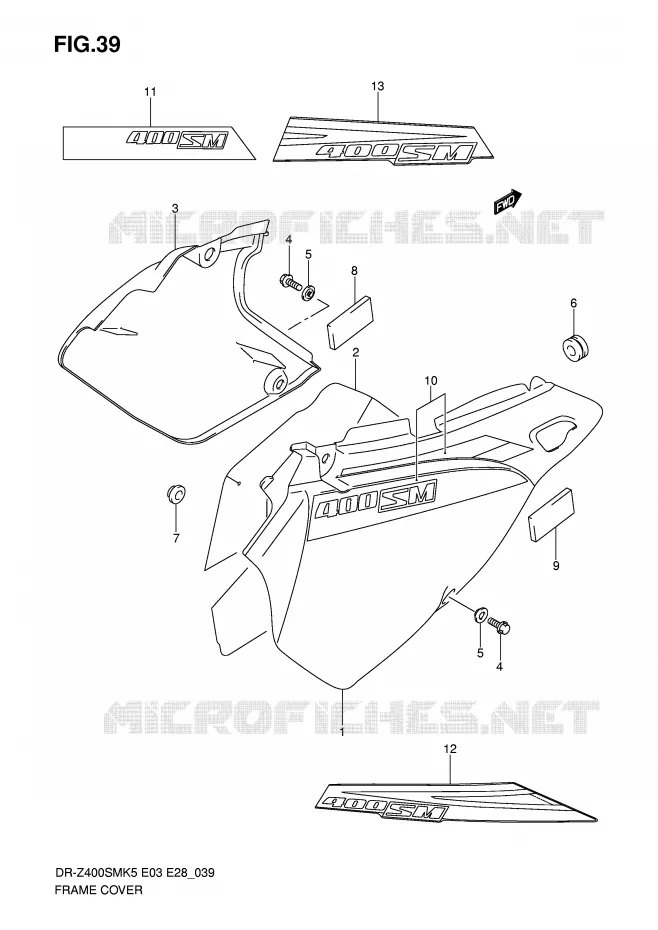

FAIRING (MODEL K5 / K6) FOR SUZUKI DR-Z 400 2009

FAIRING (MODEL K7 / K8) REFER TO FIG.39B(H-12) FOR MODLE K9

Item numbers

COVER, FRAME, R(WHITE)

47111-29F10-30H

47111-29FC0-30H

$114,97

Unit Price

COVER, FRAME, R(BLACK)

47111-29F10-019

Not available

SHIELD, FRAME COVER, R
SHIELD, FRAME COVER RH

47166-29F00-000 4716629F00000

$80,97

Unit Price

COVER, FRAME, L(BLACK)

47211-29F10-019

47211-29FA0-019

$81,97

Unit Price

COVER, FRAME, L(WHITE)

47211-29F10-30H

47211-29FA0-30H

$81,97

Unit Price

DISCONTINUE
COVER, FRAME LH (BLACK)

47211-29F30-019 4721129F30019

Not available

47211-29FC0-30H
COVER, FRAME LH (WHITE)

47211-29F30-30H 4721129F3030H

Not available

BOLT, CLUTCH RLS
BOLT

09103-06273-000 0910306273000

$3,97

Unit Price

WASHER

09169-06028-000

09169-06031-000

$2,97

Unit Price

CUSHION
CUSHION, RH

09320-06504-000 0932006504000

$7,97

Unit Price

CUSHION
CUSHION, MUFFLER

09321-10018-000 0932110018000

$7,97

Unit Price

CUSHION, FRAME COVER, L
CUSHION, LH COVER FRONT

47161-29F00-000 4716129F00000

$8,97

Unit Price

CUSHION(18X70X6)
CUSHION, RH COVER FRONT

71762-65G10-000 7176265G10000

$11,97

Unit Price

DISCONTINUE
TAPE SET, RH

68130-29F20-BYK 6813029F20BYK

Not available

DISCONTINUE
TAPE SET, RH

68130-29F20-CAH 6813029F20CAH

Not available

DISCONTINUE
TAPE SET, LH

68140-29F00-BYK 6814029F00BYK

Not available

DISCONTINUE
TAPE SET, LH

68140-29F00-CAH 6814029F00CAH

Not available

DISCONTINUE
TAPE, RH

68135-29F00-CNP 6813529F00CNP

Not available

DISCONTINUE
TAPE, RH

68135-29F00-CNS 6813529F00CNS

Not available

DISCONTINUE
TAPE, LH

68145-29F00-CNP 6814529F00CNP

Not available

DISCONTINUE
TAPE, LH

68145-29F00-CNS 6814529F00CNS

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
