CYLINDER

CRANKCASE FOR SUZUKI DR-Z 400 2011

CRANKCASE COVER

Item numbers

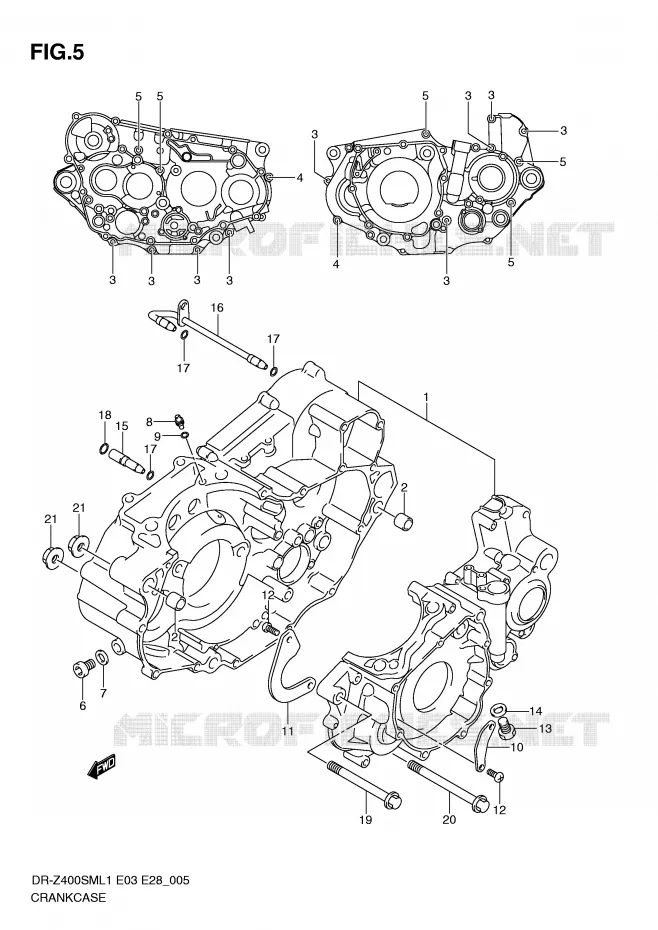

CRANKCASE Suzuki MOTO 400 DR-Z 2011 DR-Z400SML1(E3/E28)
1
2
3
3
3
3
3
3
3
3
3
4
4
5
5
5
5
5
6
7
8
9
10
11
12
12
13
14
15
16
17
17
17
18
19
20
21
21
1
11301-29854
CRANKCASE SET

11301-29853-000   1130129853000

1130129853000
Not available
2
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

3
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

4
BOLT

01547-0655A-000   015470655A000

015470655A000

Unit Price

5
BOLT

01547-0670A-000   015470670A000

015470670A000

Unit Price

6
PLUG,OIL GALL<br />PLUG
PLUG, OIL GALL
PLUG

09248-10010-000   0924810010000

0924810010000

Unit Price

7
CRNK DRAIN PLUG GASK<br />GASKET (10X14X3.6)
CRNK DRAIN PLUG GASK
GASKET (10X14X3.6)

09168-10002-000   0916810002000

0916810002000

Unit Price

8
JET, OIL GALLERY
JET, OIL GALLERY CYLINDER

09493-80005-000   0949380005000

0949380005000

Unit Price

9
O RING
O RING

09280-04004-000   0928004004000

0928004004000

Unit Price

10
SEPARATOR, CRANKCASE OIL NO.1
SEPARATOR, OIL NO.1

11323-29F00-000   1132329F00000

1132329F00000

Unit Price

11
SEPARATOR, CRANKCASE OIL NO.2
SEPARATOR, OIL NO.2

11324-29F00-000   1132429F00000

1132429F00000

Unit Price

12
BOLT, (6X12)
SCREW

09125-06122-000   0912506122000

0912506122000

Unit Price

13
PLUG, OIL DRAIN
PLUG

09247-12011-000   0924712011000

0924712011000

Unit Price

14
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000
Not available
15
PIPE, OIL INNER NO.1

11451-29F00-000   1145129F00000

1145129F00000

Unit Price

16
PIPE, T/M OIL INNER NO.2

11460-29F00-000   1146029F00000

1146029F00000

Unit Price

17
O-RING<br />O RING (D:1.9,ID:4.8)
O-RING
O RING (D:1.9, ID:4.8)

09280-05004-000   0928005004000

0928005004000

Unit Price

18
O RING (D:1.9, ID:6.8)

09280-07004-000   0928007004000

0928007004000

Unit Price

19
BOLT (10X100)

09103-10110-000   0910310110000

0910310110000

Unit Price

20
BOLT (10X115)

09103-10063-000   0910310063000

0910310063000

Unit Price

21
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
