TRANSMISSION

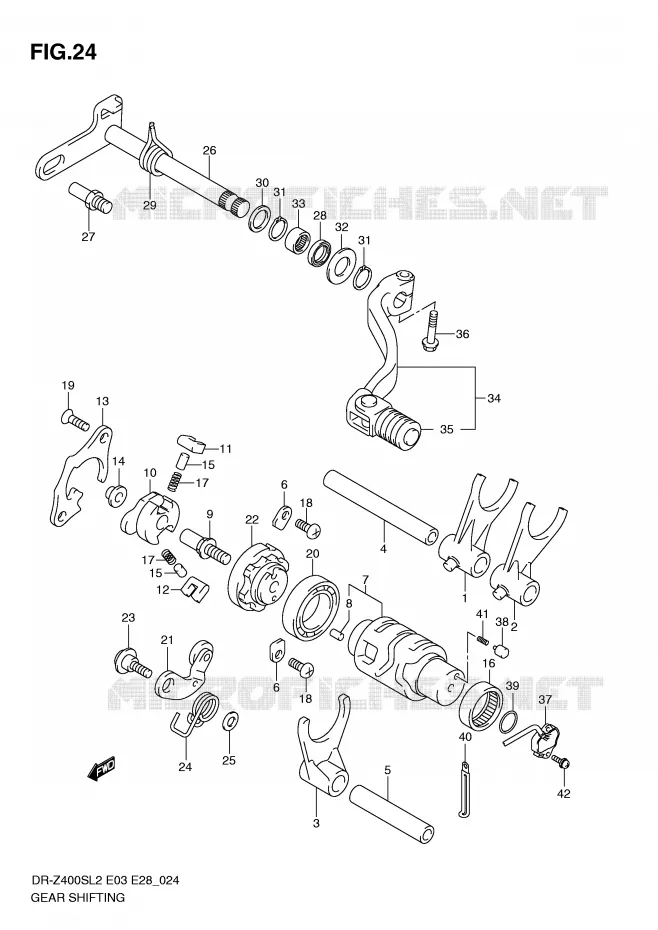

GEAR SHIFTING ASSY FOR SUZUKI DR-Z 400 2012

FUEL COCK

Item numbers

FORK, GEAR SHIFT NO.1

25211-28C01-000 2521128C01000

$80,97

Unit Price

FORK, GEAR SHIFT NO.2

25221-28C02-000 2522128C02000

$86,97

Unit Price

FORK, GEAR SHIFT NO.3

25231-28C02-000 2523128C02000

$78,97

Unit Price

SHAFT, GEAR SHIFT FORK(L:95)
SHAFT, GEAR SHIFT FORK NO.1

25411-37F20-000 2541137F20000

$20,97

Unit Price

SHAFT, GEAR SHIFT FORK(L:60)
SHAFT, GEAR SHIFT FORK NO.2

25421-27C01-000 2542127C01000

$17,97

Unit Price

RETAINER
RETAINER, SHIFT CAM BEARING

24741-21A00-000 2474121A00000

$4,97

Unit Price

CAM, GEAR SHIFT

25310-29F10-000 2531029F10000

$150,97

Unit Price

04221-04089-000 0422104089000

$2,97

Unit Price

PIN, SHIFT CAM DRIVEN GEAR
PIN, GEAR SHIFT CAM SHIFTER

25313-27C02-000 2531327C02000

$16,97

Unit Price

SHIFTER, GEAR SHIFT CAM

25322-36E00-000 2532236E00000

$48,97

Unit Price

PAWL, GEAR SHIFT NO.1

25323-34201-000 2532334201000

$11,97

Unit Price

PAWL, GEAR SHIFT NO.2

25324-34201-000 2532434201000

$11,97

Unit Price

LIFTER, GEAR SHIFT PAWL

25331-37E10-000 2533137E10000

$17,97

Unit Price

SPACER
SPACER (7X10X5)

09180-07014-000 0918007014000

$7,97

Unit Price

SHIFTING PAUL ROLLER
PIN (5X8)

09261-05003-000 0926105003000

$2,97

Unit Price

R BEARING 25X32X12
BEARING (25X32X12)

09263-25018-000 0926325018000

$26,97

Unit Price

K S PAWL SPRING
SPRING

09440-04003-000 0944004003000

$2,97

Unit Price

BOLT, (6X12)
SCREW (6X12)

09125-06122-000 0912506122000

$3,97

Unit Price

SCREW
SCREW (6X12)

09126-06011-000 0912606011000

$3,97

Unit Price

BEARING, RH
BEARING

08113-69050-000 0811369050000

$52,97

Unit Price

STOPPER, GEAR SHIFT CAM

25350-29F00-000 2535029F00000

$20,97

Unit Price

PLATE, GEAR SHIFT STOPPER
PLATE, SHIFT CAM STOPPER

25381-36E11-000 2538136E11000

$45,97

Unit Price

BOLT, CAM STOPPER ARM

25357-29F00-000 2535729F00000

$9,97

Unit Price

SPRING, SHIFT CAM STOPPER

25355-29F00-000 2535529F00000

$6,97

Unit Price

WASHER, THRUST
WASHER

08211-06121-000 0821106121000

$3,97

Unit Price

SHAFT, GEAR SHIFT

25510-29F00-000 2551029F00000

$87,97

Unit Price

STOPPER, SHIFT ARM
STOPPER, GEAR SHIFT ARM

25671-38B00-000 2567138B00000

$6,97

Unit Price

SEAL, OIL(14X22X7.3)
OIL SEAL (14X22X7.3)

09283-14005-000 0928314005000

$9,97

Unit Price

SPRING

09444-20004-000 0944420004000

$12,97

Unit Price

WASHER
SHIM (14X20X1)

09181-14139-000 0918114139000

$4,97

Unit Price

CIRCLIP

08331-3114A-000 083313114A000

$3,97

Unit Price

WASHER (14X29X1.5)

09160-14046-XC0 0916014046XC0

$7,97

Unit Price

BEARING, RR CUSHION
BEARING (14X20X12)

09263-14027-000 0926314027000

$19,97

Unit Price

LEVER ASSY, GEAR SHIFT

25600-05D03-000 2560005D03000

$98,97

Unit Price

RUBBER, GEAR SHIFT PEDAL

25652-03D00-000 2565203D00000

$7,97

Unit Price

BOLT

01547-0625A-000

01547-0625B-000

$3,97

Unit Price

BASE ASSY, GEAR SHIFT TERMINAL
BASE ASSY, GEAR SHIFT TERM

37730-20F10-000 3773020F10000

$138,97

Unit Price

K S PAWL ROLLER
PIN

09209-05011-000 0920905011000

$3,97

Unit Price

O RING
O RING (D:2.4, ID:26.2)

09280-26005-000 0928026005000

Not available

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

BOLT

07120-0516A-000

07120-0516B-000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
