CYLINDER HEAD COVER

CYLINDER HEAD FOR SUZUKI DR-Z 400 2012

CYLINDER

Item numbers

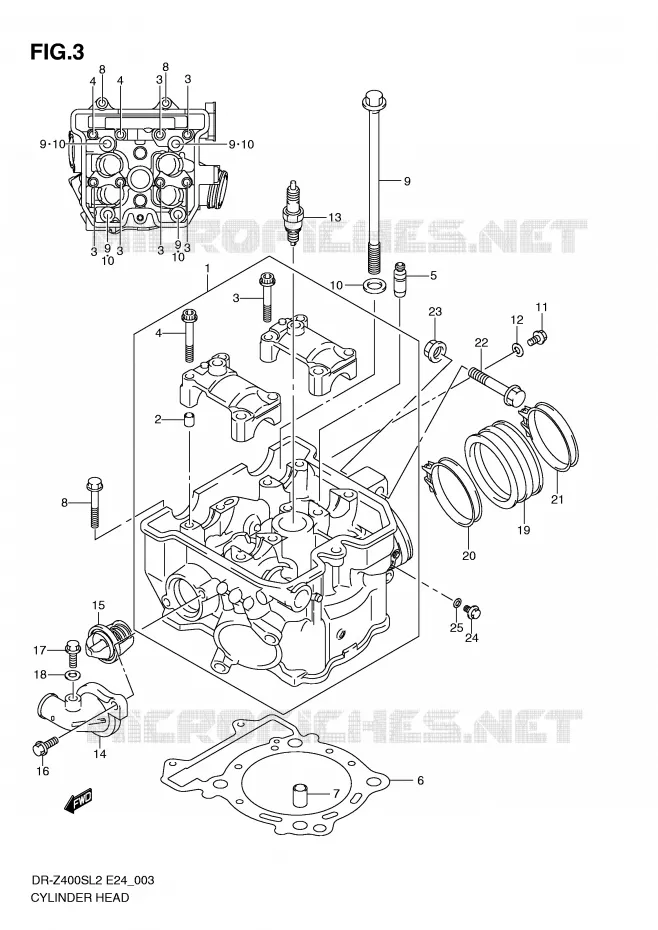

CYLINDER HEAD Suzuki MOTO 400 DR-Z 2012 DR-Z400SL2(E24)
1
2
3
3
3
3
3
3
3
4
4
4
5
6
7
8
8
8
9
9
9
9
9
10
10
10
10
10
11
12
13
13
13
13
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
1
HEAD ASSY, CYLINDER

11100-29F21-000   1110029F21000

1110029F21000

Unit Price

2
PIN(8X11)<br />PIN
PIN(8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

3
BOLT
BOLT

07120-0640B-000   071200640B000

071200640B000

Unit Price

4
BOLT
BOLT

07120-0645B-000   071200645B000

071200645B000

Unit Price

5
GUIDE, VALVE
GUIDE, VALVE (0S:0.3)

11115-20E70-000   1111520E70000

1111520E70000

Unit Price

6
GASKET, CYLINDER HEAD

11141-29F01-000   1114129F01000

1114129F01000

Unit Price

7
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

8
BOLT, M6X39
BOLT (6X39)

09103-06504-000   0910306504000

0910306504000

Unit Price

9
BOLT, M10X175
BOLT (10X175)

09103-10276-000   0910310276000

0910310276000

Unit Price

10
WASHER (10.5X19X2)
WASHER (10.5X19X2)

09160-10082-000   0916010082000

0916010082000

Unit Price

11
BOLT
BOLT

01550-0610A-000  

01550-0610B-000
 015500610A000

Unit Price

12
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
13
CR8E, NGK<br />SPARK PLUG (NGK,CR8E)
CR8E, NGK
SPARK PLUG (NGK, CR8E)

09482-00456-000   0948200456000

0948200456000

Unit Price

13
CR9E, NGK<br />SPARK PLUG (NGK,CR9E)
CR9E, NGK
SPARK PLUG (NGK, CR9E)

09482-00458-000   0948200458000

0948200458000

Unit Price

13
CR10E, NGK<br />SPARK PLUG (NGK,CR10E)
CR10E, NGK
SPARK PLUG (NGK, CR10E)

09482-00460-000   0948200460000

0948200460000

Unit Price

13
CR7E, NGK

09482-00515-000  

09482-00516-000
 0948200515000

Unit Price

14
COVER, THERMOSTAT

17661-29F10-000   1766129F10000

1766129F10000

Unit Price

15
THERMOSTAT, WATER

17670-33400-000  

17670-33401-000
 1767033400000

Unit Price

16
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

17
UNION BOLT,AIR VENT<br />BOLT, AIR RELEASE
UNION BOLT, AIR VENT
BOLT, AIR RELEASE

17568-50F00-000   1756850F00000

1756850F00000

Unit Price

18
GASKET(6.4X11.5X0.84)<br />GASKET (6.4X11.5X0.8)
GASKET(6.4X11.5X0.84)
GASKET (6.4X11.5X0.8)

09168-06026-000   0916806026000

0916806026000

Unit Price

19
PIPE, INTAKE

13111-29F10-000  

13111-29F11-000
 1311129F10000

Unit Price

20
CLAMP

09402-58208-000   0940258208000

0940258208000

Unit Price

21
CLAMP
CLAMP

09402-52208-000   0940252208000

0940252208000

Unit Price

22
BOLT (10X50)

09103-10235-000   0910310235000

0910310235000

Unit Price

23
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

24
BOLT (8X9.5)

09103-08421-000   0910308421000

0910308421000

Unit Price

25
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
