SHOCK ABSORBER LINKAGE

REAR WHEEL FOR SUZUKI DR-Z 400 2012

REAR CALIPER

Item numbers

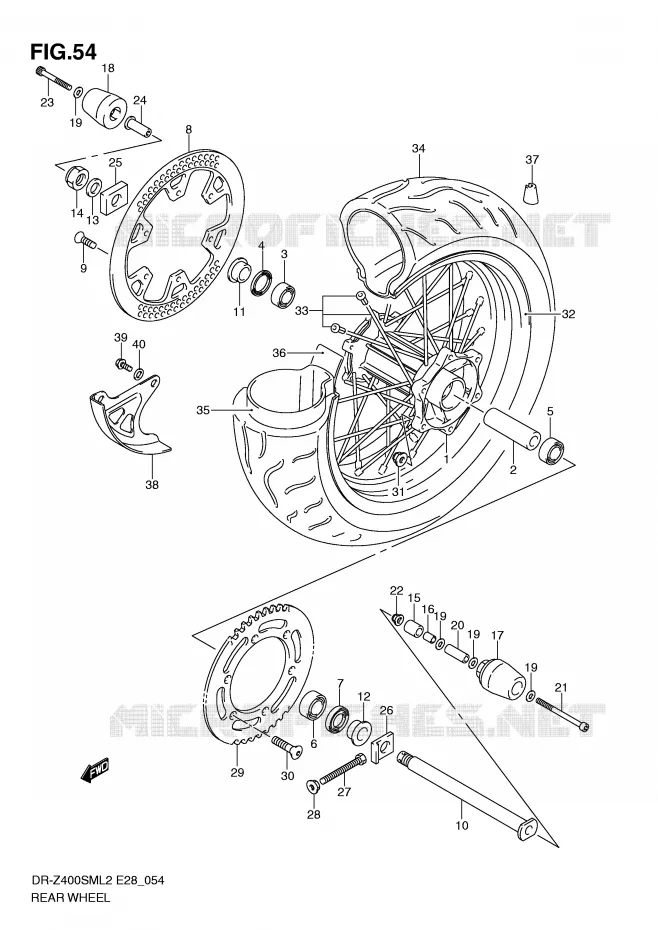

REAR WHEEL Suzuki MOTO 400 DR-Z 2012 DR-Z400SML2(E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
37
38
39
40
1
HUB, RR WHEEL
HUB, REAR WHEEL

64111-29F10-000   6411129F10000

6411129F10000

Unit Price

2
SPACER, RR HUB BEARING
SPACER, BEARING

64731-29F00-000   6473129F00000

6473129F00000

Unit Price

3
BEARING

08133-60047-000   0813360047000

0813360047000

Unit Price

4
SEAL(29X42X6)

64841-28E00-000  

64841-28E01-000
 6484128E00000

Unit Price

5
BEARING

08133-60047-000   0813360047000

0813360047000

Unit Price

6
BALL BEARING
BALL BEARING

08123-62047-000  

08123-6204B-000
 0812362047000

Unit Price

7
SEAL
OIL SEAL (29X47X6)

09283-29006-000   0928329006000

0928329006000

Unit Price

8
DISC, REAR BRAKE

69211-29F00-000   6921129F00000

6921129F00000

Unit Price

9
SCREW
SCREW (6X15.5)

09120-06014-000   0912006014000

0912006014000

Unit Price

10
AXLE, RR
AXLE, REAR

64711-29F40-000   6471129F40000

6471129F40000

Unit Price

11
SPACER, RR AXLE
SPACER, RH

64751-28E20-000   6475128E20000

6475128E20000

Unit Price

12
SPACER, RR AXLE
SPACER, LH

64751-28E20-000   6475128E20000

6475128E20000

Unit Price

13
WASHER
WASHER (19X32X3.2)

09160-19022-000   0916019022000

0916019022000

Unit Price

14
NUT

08319-2118A-000   083192118A000

083192118A000

Unit Price

15
EXPANDER, FR AXLE SLIDER, R
EXPANDER, AXLE SLIDER

54744-29F00-000   5474429F00000

5474429F00000

Unit Price

16
SPACER
SPACER (5.5X8X10.5)

09180-05048-000   0918005048000

0918005048000

Unit Price

17
SLIDER, RR AXLE, L

64755-29F00-000   6475529F00000

6475529F00000

Unit Price

18
SLIDER, FR AXLE, L
SLIDER, AXLE

54755-29F00-000   5475529F00000

5475529F00000

Unit Price

19
WASHER
WASHER (5.5X12X0.8)

09160-05029-000   0916005029000

0916005029000

Unit Price

20
SPACER
SPACER (5.5X9.5X26)

09180-05060-000   0918005060000

0918005060000

Unit Price

21
BOLT (5X65)

09106-05021-000   0910605021000

0910605021000

Unit Price

22
NUT

08316-2005B-000   083162005B000

083162005B000

Unit Price

23
BOLT

07130-0540A-000   071300540A000

071300540A000

Unit Price

24
NUT

09159-05050-000   0915905050000

0915905050000

Unit Price

25
ADJUSTER, CHAIN, R
ADJUSTER, CHAIN RH

61445-29F00-000   6144529F00000

6144529F00000

Unit Price

26
ADJUSTER, CHAIN, L
ADJUSTER, CHAIN LH

61446-29F00-000   6144629F00000

6144629F00000

Unit Price

27
BOLT<br />BOLT (8X50)
BOLT
BOLT (8X50)

09100-08287-000   0910008287000

0910008287000

Unit Price

28
NUT

09159-08034-000   0915908034000

0915908034000

Unit Price

29
SPROCKET, RR(NT:41)
SPROCKET, REAR (NT:41-520)

64511-14E00-000   6451114E00000

6451114E00000

Unit Price

30
SCREW<br />SCREW (8X30.5)
SCREW
SCREW (8X30.5)

09120-08010-000   0912008010000

0912008010000

Unit Price

31
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

32
RIM, RR WHEEL(17XMT4.50 AL)(BLK
RIM, RR WHEEL (17XCXMT4.50 AL)

65311-29F30-000   6531129F30000

6531129F30000

Unit Price

32
65311-37L10-Q19
RIM, RR WHEEL (17XCXMT4.50 AL)

65311-29F60-000   6531129F60000

6531129F60000
Not available
33
SPOKE SET, RR WHEEL
SPOKE ASSY, REAR WHEEL

65320-29F30-000   6532029F30000

6532029F30000

Unit Price

34
65110-29FA1
TIRE, REAR, 140/70R 17M/C 66H

65110-29FA0-000   6511029FA0000

6511029FA0000
Not available
35
TUBE ASSY, WHEEL INNER

65200-29FA0-000   6520029FA0000

6520029FA0000

Unit Price

36
PROTECTOR, WHL INR TUBE
PROTECTOR, INNER TUBE

65261-29FA0-000   6526129FA0000

6526129FA0000

Unit Price

37
BALANCER, WHEEL(30G)

55412-41F00-000  

55413-41F00-000
 5541241F00000

Unit Price

38
COVER, REAR DISC
COVER, REAR BRAKE

69231-37F12-000   6923137F12000

6923137F12000

Unit Price

39
BOLT, EXHAUST VALVE S
BOLT (6X10)

09103-06256-000   0910306256000

0910306256000

Unit Price

40
WASHER

08322-01067-000  

08322-0106A-000
 0832201067000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
