WATER PUMP

RADIATOR FOR SUZUKI DR-Z 400 2013

ANTI POLLUTION SYSTEM

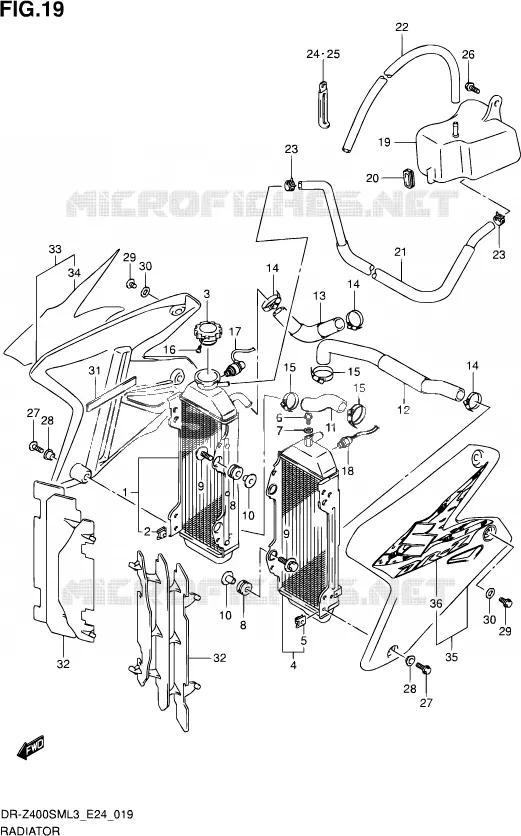

RADIATOR Suzuki MOTO 400 DR-Z 2013 DR-Z400SM L3 (E24)
1
RADIATOR, WATER, R
RADIATOR, RH

17710-29F40-000   1771029F40000

1771029F40000

Unit Price

2
NUT<br />.NUT, RADIATOR
NUT
.NUT, RADIATOR

09148-06015-000   0914806015000

0914806015000

Unit Price

3
CAP, RADIATOR (1.1)
CAP, RADIATOR (1.1)

17730-19D11-000   1773019D11000

1773019D11000

Unit Price

4
RADIATOR, WATER, L
RADIATOR, LH

17720-29F40-000   1772029F40000

1772029F40000

Unit Price

5
NUT<br />.NUT, RADIATOR
NUT
.NUT, RADIATOR

09148-06015-000   0914806015000

0914806015000

Unit Price

6
UNION BOLT,AIR VENT<br />BOLT, AIR RELEASE
UNION BOLT, AIR VENT
BOLT, AIR RELEASE

17568-50F00-000   1756850F00000

1756850F00000

Unit Price

7
GASKET(6.4X11.5X0.84)<br />GASKET (6.4X11.5X0.8)
GASKET(6.4X11.5X0.84)
GASKET (6.4X11.5X0.8)

09168-06026-000   0916806026000

0916806026000

Unit Price

8
CUSHION, RADIATOR LWR
CUSHION, SUPPORT

17787-19A00-000   1778719A00000

1778719A00000

Unit Price

9
BOLT (6X25)
BOLT (6X25)

09116-06147-000   0911606147000

0911606147000

Unit Price

10
SPACER
SPACER (6.5X10.5X14.1)

09180-06243-000   0918006243000

0918006243000

Unit Price

11
HOSE, RADIATOR INLET
HOSE, INLET

17851-29F10-000   1785129F10000

1785129F10000

Unit Price

12
HOSE, RADIATOR OUTLET
HOSE, OUTLET

17852-29F30-000   1785229F30000

1785229F30000

Unit Price

13
HOSE, RADIATOR JOINT
HOSE, JOINT

17853-29F10-000   1785329F10000

1785329F10000

Unit Price

14
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

15
CLAMP

09402-32512-000   0940232512000

0940232512000

Unit Price

16
SCREW, RADIATOR CAP
SCREW, RADIATOR CAP

17733-03D10-000   1773303D10000

1773303D10000

Unit Price

17
SWITCH ASSY, WATER TEMP

34850-03D00-000   3485003D00000

3485003D00000

Unit Price

18
SWITCH, FAN

17680-24A30-000   1768024A30000

1768024A30000

Unit Price

19
TANK, RESERVOIR

17911-29F11-000   1791129F11000

1791129F11000

Unit Price

20
CUSHION, RESERVOIR TANK

17913-29F00-000   1791329F00000

1791329F00000

Unit Price

21
HOSE, RESERVOIR TANK INLET
HOSE, INLET

17981-29F01-000   1798129F01000

1798129F01000

Unit Price

22
HOSE (5X9X2000)
HOSE (5X9X2000)

09352-50901-00B   093525090100B

093525090100B

Unit Price

23
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
24
CLAMP(L:45 T:0.6)
CLAMP(L:45 T:0.6)

09404-08205-000  

09404-08211-000
 0940408205000

Unit Price

25
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

26
BOLT
BOLT

01550-0612B-000   015500612B000

015500612B000

Unit Price

27
SCREW, 6X16
BOLT (6X16)

09103-06274-000   0910306274000

0910306274000

Unit Price

28
WASHER

09169-06053-000   0916906053000

0916906053000

Unit Price

29
SCREW, 6X8
BOLT (6X8)

09103-06275-000   0910306275000

0910306275000

Unit Price

30
WASHER (6.5X14X1.6)
WASHER (6.5X14X1.6)

09160-06125-000   0916006125000

0916006125000

Unit Price

31
CUSHION,TOOL HOLDER<br />CUSHION, RADIATOR COVER
CUSHION, TOOL HOLDER
CUSHION, RADIATOR COVER

47451-38A01-000   4745138A01000

4745138A01000

Unit Price

32
LOUVER, RADIATOR

17831-37E11-000   1783137E11000

1783137E11000

Unit Price

33
COVER, RADIATOR, R(BLACK)
COVER, RADIATOR RH (BLACK)

17760-29FJ0-019   1776029FJ0019

1776029FJ0019

Unit Price

33
COVER, RADIATOR, R(WHITE)
COVER, RADIATOR RH (WHITE)

17760-29FJ0-30H   1776029FJ030H

1776029FJ030H

Unit Price

34
DISCONTINUE
.TAPE, RADIATOR COVER RH

68665-29FJ0-HMU   6866529FJ0HMU

6866529FJ0HMU
Not available
34
.TAPE, RADIATOR COVER RH

68665-29FJ0-HMV   6866529FJ0HMV

6866529FJ0HMV
Not available
35
COVER, RADIATOR, L(BLACK)
COVER, RADIATOR LH (BLACK)

17770-29FJ0-019   1777029FJ0019

1777029FJ0019

Unit Price

35
COVER, RADIATOR, L(WHITE)
COVER, RADIATOR LH (WHITE)

17770-29FJ0-30H   1777029FJ030H

1777029FJ030H

Unit Price

36
TAPE, RADIATOR COVER, L
.TAPE, RADIATOR COVER LH

68675-29FJ0-HMU   6867529FJ0HMU

6867529FJ0HMU

Unit Price

36
TAPE, RADIATORC
.TAPE, RADIATOR COVER LH

68675-29FJ0-HMV   6867529FJ0HMV

6867529FJ0HMV

Unit Price
