Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

WATER PUMP

RADIATOR FOR SUZUKI DR-Z 400 2015

ANTI POLLUTION SYSTEM

Item numbers

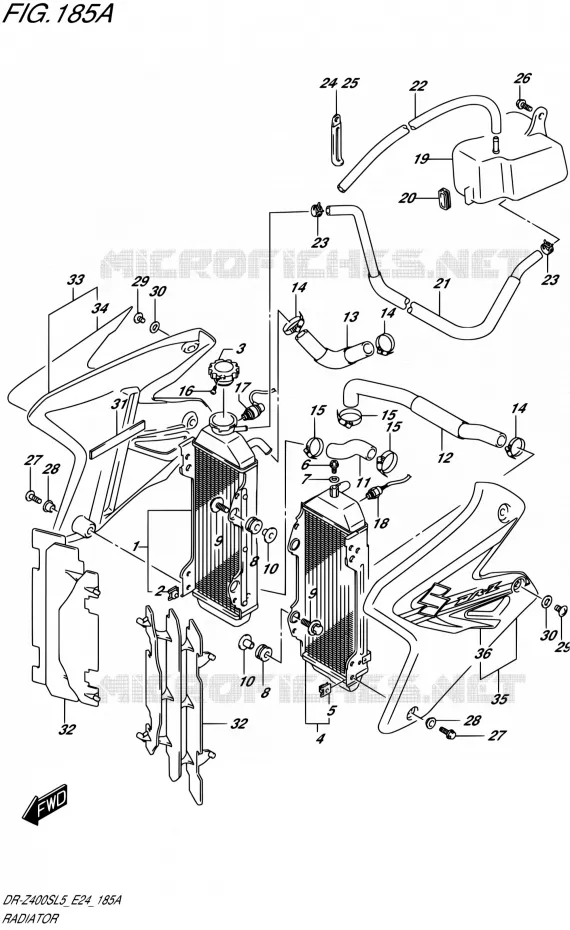

RADIATOR Suzuki MOTO 400 DR-Z 2015 DR-Z400S L5 (E24)
1
2
3
4
5
6
7
8
8
9
9
10
10
11
12
13
14
14
14
15
15
15
16
17
18
19
20
21
22
23
23
24
25
26
27
27
28
28
29
29
30
30
31
32
32
33
34
35
36
1
RADIATOR, WATER, R
RADIATOR, WATER RH

17710-29F40-000   1771029F40000

1771029F40000

Unit Price

2
.NUT
.NUT

09148-06015-000   0914806015000

0914806015000

Unit Price

3
CAP, RADIATOR (1.1)
CAP, RADIATOR (1.1)

17730-19D11-000   1773019D11000

1773019D11000

Unit Price

4
RADIATOR, WATER, L
RADIATOR, WATER LH

17720-29F40-000   1772029F40000

1772029F40000

Unit Price

5
.NUT
.NUT

09148-06015-000   0914806015000

0914806015000

Unit Price

6
UNION BOLT,AIR VENT<br />BOLT, AIR RELEASE
UNION BOLT, AIR VENT
BOLT, AIR RELEASE

17568-50F00-000   1756850F00000

1756850F00000

Unit Price

7
GASKET(6.4X11.5X0.84)<br />GASKET (6.4X11.5X0.8)
GASKET(6.4X11.5X0.84)
GASKET (6.4X11.5X0.8)

09168-06026-000   0916806026000

0916806026000

Unit Price

8
CUSHION, RADIATOR LWR
CUSHION, RADIATOR SUPPORT

17787-19A00-000   1778719A00000

1778719A00000

Unit Price

9
BOLT (6X25)
BOLT (6X25)

09116-06147-000   0911606147000

0911606147000

Unit Price

10
SPACER
SPACER (6.5X10.5X14.1)

09180-06243-000   0918006243000

0918006243000

Unit Price

11
HOSE, RADIATOR INLET

17851-29F10-000   1785129F10000

1785129F10000

Unit Price

12
HOSE, RADIATOR OUTLET

17852-29F30-000   1785229F30000

1785229F30000

Unit Price

13
HOSE, RADIATOR JOINT

17853-29F10-000   1785329F10000

1785329F10000

Unit Price

14
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

15
CLAMP

09402-32512-000   0940232512000

0940232512000

Unit Price

16
SCREW, RADIATOR CAP
SCREW, RADIATOR CAP

17733-03D10-000   1773303D10000

1773303D10000

Unit Price

17
SWITCH ASSY, WATER TEMP

34850-03D00-000   3485003D00000

3485003D00000

Unit Price

18
SWITCH, FAN

17680-24A30-000   1768024A30000

1768024A30000

Unit Price

19
TANK, RESERVOIR

17911-29F11-000   1791129F11000

1791129F11000

Unit Price

20
CUSHION, RESERVOIR TANK

17913-29F00-000   1791329F00000

1791329F00000

Unit Price

21
HOSE, RESERVOIR TANK INLET

17981-29F01-000   1798129F01000

1798129F01000

Unit Price

22
HOSE (5X9X2000)
HOSE (5X9X2000)

09352-50901-00B   093525090100B

093525090100B

Unit Price

23
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
24
CLAMP(L:45 T:0.6)
CLAMP(L:45 T:0.6)

09404-08205-000  

09404-08211-000
 0940408205000

Unit Price

25
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

26
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

27
SCREW, 6X16
BOLT (6X16)

09103-06274-000   0910306274000

0910306274000

Unit Price

28
WASHER

09169-06053-000   0916906053000

0916906053000

Unit Price

29
SCREW, 6X8
BOLT (6X8)

09103-06275-000   0910306275000

0910306275000

Unit Price

30
WASHER (6.5X14X1.6)
WASHER (6.5X14X1.6)

09160-06125-000   0916006125000

0916006125000

Unit Price

31
CUSHION,TOOL HOLDER<br />CUSHION, RADIATOR COVER
CUSHION, TOOL HOLDER
CUSHION, RADIATOR COVER

47451-38A01-000   4745138A01000

4745138A01000

Unit Price

32
LOUVER, RADIATOR

17831-37E11-000   1783137E11000

1783137E11000

Unit Price

33
DISCONTINUE
COVER, RADIATOR RH (GRAY)

17760-29FU0-YUD   1776029FU0YUD

1776029FU0YUD
Not available
34
.TAPE, RADIATOR COVER RH

68665-29FU0-000   6866529FU0000

6866529FU0000
Not available
35
COVER COMP, RADIATOR, L
COVER, RADIATOR LH (GRAY)

17770-29FU0-YUD   1777029FU0YUD

1777029FU0YUD

Unit Price

36
.TAPE, RADIATOR COVER LH

68675-29FU0-000   6867529FU0000

6867529FU0000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
