SWINGARM

FRONT FORK FOR SUZUKI DR-Z 400 2015

STEERING COLUMN

Item numbers

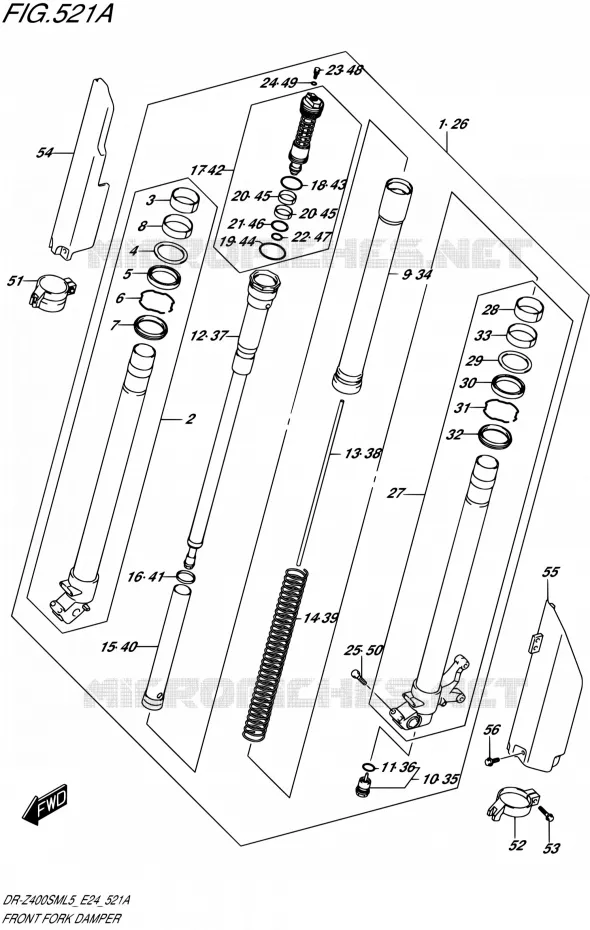

FRONT FORK Suzuki MOTO 400 DR-Z 2015 DR-Z400SM L5 (E24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
50
51
52
53
54
55
56
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-29F70-000   5110329F70000

5110329F70000

Unit Price

2
TUBE, INNER, R
.TUBE, INNER

51110-29F70-000   5111029F70000

5111029F70000

Unit Price

3
..BUSH, GUIDE

51167-36F00-000   5116736F00000

5116736F00000

Unit Price

4
..SPACER, SEAL

51158-36F00-000   5115836F00000

5115836F00000

Unit Price

5
SEAL, OIL
..OIL SEAL

51153-37F80-000   5115337F80000

5115337F80000

Unit Price

6
RING, OIL SEAL STOPPER
..RING, STOPPER

51156-27C40-000   5115627C40000

5115627C40000

Unit Price

7
..SEAL, DUST

51173-37F80-000   5117337F80000

5117337F80000

Unit Price

8
..BUSH, SLIDE

51121-36F00-000   5112136F00000

5112136F00000

Unit Price

9
.TUBE, OUTER

51130-29F70-000   5113029F70000

5113029F70000

Unit Price

10
BOLT, CTR
.BOLT, CENTER

51170-37F70-000   5117037F70000

5117037F70000

Unit Price

11
..O RING

51177-36E20-000   5117736E20000

5117736E20000

Unit Price

12
DAMPER
.ROD, FRONT DAMPER

51190-29F70-000   5119029F70000

5119029F70000

Unit Price

13
.ROD, PUSH

51191-29F70-000   5119129F70000

5119129F70000

Unit Price

14
SPRING, FR
.SPRING, FRONT

51171-29F70-000   5117129F70000

5117129F70000

Unit Price

15
.COLLAR, SPRING

51198-37F70-000   5119837F70000

5119837F70000

Unit Price

16
SPRING SEAT
.SEAT, SPRING

51178-29F70-000   5117829F70000

5117829F70000

Unit Price

17
.BOLT, FORK

51351-29F70-000   5135129F70000

5135129F70000

Unit Price

18
..O RING

51117-37F80-000   5111737F80000

5111737F80000

Unit Price

19
..O RING

51118-37F80-000   5111837F80000

5111837F80000

Unit Price

20
BUSH, FORK BOLT SLIDE
..BUSH

51123-28E30-000   5112328E30000

5112328E30000

Unit Price

21
..O RING

51174-36E40-000   5117436E40000

5117436E40000

Unit Price

22
..O RING

51175-36E20-000   5117536E20000

5117536E20000

Unit Price

23
.BOLT, PLUG

51357-36F20-000   5135736F20000

5135736F20000

Unit Price

24
.O RING, PLUG

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

25
.BOLT

51166-35F00-000   5116635F00000

5116635F00000

Unit Price

26
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-29F70-000   5110429F70000

5110429F70000

Unit Price

27
TUBE, INNER, L
.TUBE, INNER

51120-29F70-000   5112029F70000

5112029F70000

Unit Price

28
..BUSH, GUIDE

51167-36F00-000   5116736F00000

5116736F00000

Unit Price

29
..SPACER, SEAL

51158-36F00-000   5115836F00000

5115836F00000

Unit Price

30
SEAL, OIL
..OIL SEAL

51153-37F80-000   5115337F80000

5115337F80000

Unit Price

31
RING, OIL SEAL STOPPER
..RING, STOPPER

51156-27C40-000   5115627C40000

5115627C40000

Unit Price

32
..SEAL, DUST

51173-37F80-000   5117337F80000

5117337F80000

Unit Price

33
..BUSH, SLIDE

51121-36F00-000   5112136F00000

5112136F00000

Unit Price

34
.TUBE, OUTER

51130-29F70-000   5113029F70000

5113029F70000

Unit Price

35
BOLT, CTR
.BOLT, CENTER

51170-37F70-000   5117037F70000

5117037F70000

Unit Price

36
..O RING

51177-36E20-000   5117736E20000

5117736E20000

Unit Price

37
DAMPER
.ROD, FRONT DAMPER

51190-29F70-000   5119029F70000

5119029F70000

Unit Price

38
.ROD, PUSH

51191-29F70-000   5119129F70000

5119129F70000

Unit Price

39
SPRING, FR
.SPRING, FRONT

51171-29F70-000   5117129F70000

5117129F70000

Unit Price

40
.COLLAR, SPRING

51198-37F70-000   5119837F70000

5119837F70000

Unit Price

41
SPRING SEAT
.SEAT, SPRING

51178-29F70-000   5117829F70000

5117829F70000

Unit Price

42
.BOLT, FORK

51351-29F70-000   5135129F70000

5135129F70000

Unit Price

43
..O RING

51117-37F80-000   5111737F80000

5111737F80000

Unit Price

44
..O RING

51118-37F80-000   5111837F80000

5111837F80000

Unit Price

45
BUSH, FORK BOLT SLIDE
..BUSH

51123-28E30-000   5112328E30000

5112328E30000

Unit Price

46
..O RING

51174-36E40-000   5117436E40000

5117436E40000

Unit Price

47
..O RING

51175-36E20-000   5117536E20000

5117536E20000

Unit Price

48
.BOLT, PLUG

51357-36F20-000   5135736F20000

5135736F20000

Unit Price

49
O RING, PLUG
.O RING

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

50
.BOLT

51166-35F00-000   5116635F00000

5116635F00000

Unit Price

51
GUIDE, PROTECTOR, R
GUIDE, PROTECTOR RH

51220-36E61-000   5122036E61000

5122036E61000

Unit Price

52
GUIDE, PROTECTOR, L
GUIDE, PROTECTOR LH

51210-36E61-000   5121036E61000

5121036E61000

Unit Price

53
BOLT
BOLT

01547-06207-000   0154706207000

0154706207000

Unit Price

54
PROTECTOR, FR FORK, R
PROTECTOR RH (BLACK)

51501-29F70-019   5150129F70019

5150129F70019

Unit Price

55
PROTECTOR, FR FORK, L
PROTECTOR LH (BLACK)

51511-29F70-019   5151129F70019

5151129F70019

Unit Price

56
BOLT, EXHAUST VALVE S
BOLT (6X10)

09103-06256-000   0910306256000

0910306256000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
