Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL TANK

FRAME FOR SUZUKI DR-Z 400 2017

REAR FAIRING

Item numbers

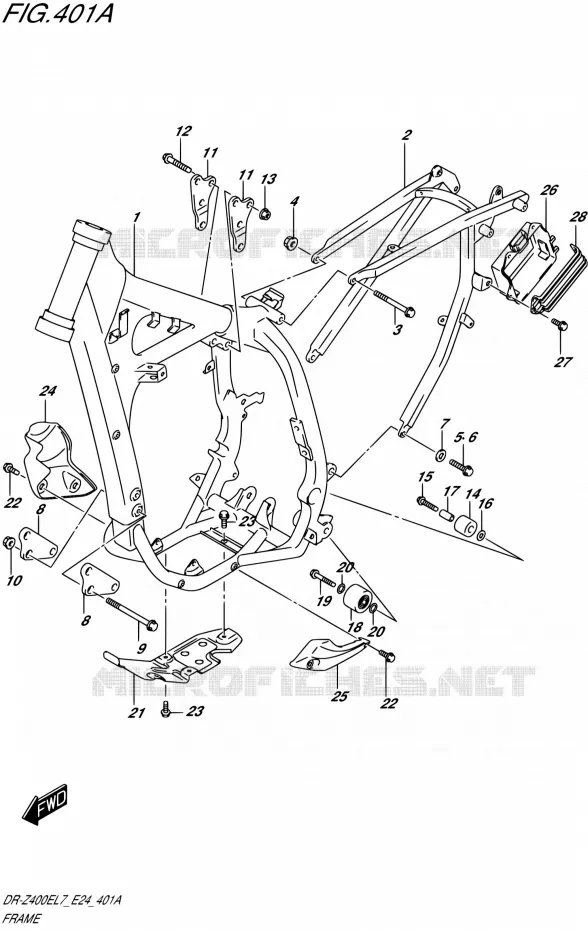

FRAME Suzuki MOTO 400 DR-Z 2017 DR-Z400E L7 (E24)
1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
23
24
25
26
27
28
1
FRAME (GRAY)

41100-29F70-YPT   4110029F70YPT

4110029F70YPT
Not available
2
RAIL, SEAT

41200-29F21-000   4120029F21000

4120029F21000
Not available
3
BOLT<br />BOLT (8X115)
BOLT
BOLT (8X115)

09103-08098-000   0910308098000

0910308098000

Unit Price

4
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

5
BOLT (8X20)

09103-08364-000   0910308364000

0910308364000

Unit Price

6
BOLT<br />BOLT (8X18)
BOLT
BOLT (8X18)

09104-08035-000   0910408035000

0910408035000

Unit Price

7
WASHER,8.5X18X2.0<br />WASHER (8.5X18X2)
WASHER, 8.5X18X2.0
WASHER (8.5X18X2)

09160-08120-000   0916008120000

0916008120000

Unit Price

8
PLATE, ENG MTG FRONT
PLATE, ENGINE MOUNT FRONT

41911-29F20-000   4191129F20000

4191129F20000

Unit Price

9
BOLT, ENG MTG, FRONT
BOLT (8X90)

09103-08550-000   0910308550000

0910308550000

Unit Price

10
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

11
PLATE, HEAD MTG RR
PLATE, ENGINE MOUNT REAR

41993-29F10-000   4199329F10000

4199329F10000

Unit Price

12
BOLT

09103-08081-000  

01550-08507-000
 0910308081000

Unit Price

13
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

14
ROLLER, CHAIN CONTROL UPR
ROLLER, CHAIN UPPER

43911-13E10-000   4391113E10000

4391113E10000

Unit Price

15
BOLT, CHAIN ROLL *S1
BOLT (8X41)

09103-08083-000   0910308083000

0910308083000

Unit Price

16
WASHER THRUST<br />WASHER
WASHER THRUST
WASHER

08211-08201-000   0821108201000

0821108201000

Unit Price

17
SPACER
SPACER (8.6X12.2X26.5)

09180-08215-000   0918008215000

0918008215000

Unit Price

18
ROLLER, CHAIN
ROLLER, CHAIN LOWER

43910-27C11-000   4391027C11000

4391027C11000

Unit Price

19
BOLT, CHAIN ROLL *S1
BOLT (8X41)

09103-08083-000   0910308083000

0910308083000

Unit Price

20
WASHER
SHIM (8X12X1)

09181-08111-000   0918108111000

0918108111000

Unit Price

21
PROTECTOR, ENGINE

42510-29F00-000   4251029F00000

4251029F00000

Unit Price

22
BOLT
BOLT (8X16.5)

09111-08087-000   0911108087000

0911108087000

Unit Price

23
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

24
DISCONTINUE

42521-29F00-000  

4252129F00000
Not available
25
DISCONTINUE

42531-29F00-000  

4253129F00000
Not available
26
HOLDER, BATTERY

41541-29F00-000   4154129F00000

4154129F00000

Unit Price

27
BOLT
BOLT (6X17.8)

09111-06072-000   0911106072000

0911106072000

Unit Price

28
BAND, BATTERY HOLDER
BAND

41561-29F00-000   4156129F00000

4156129F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
