* COLOR CHART *

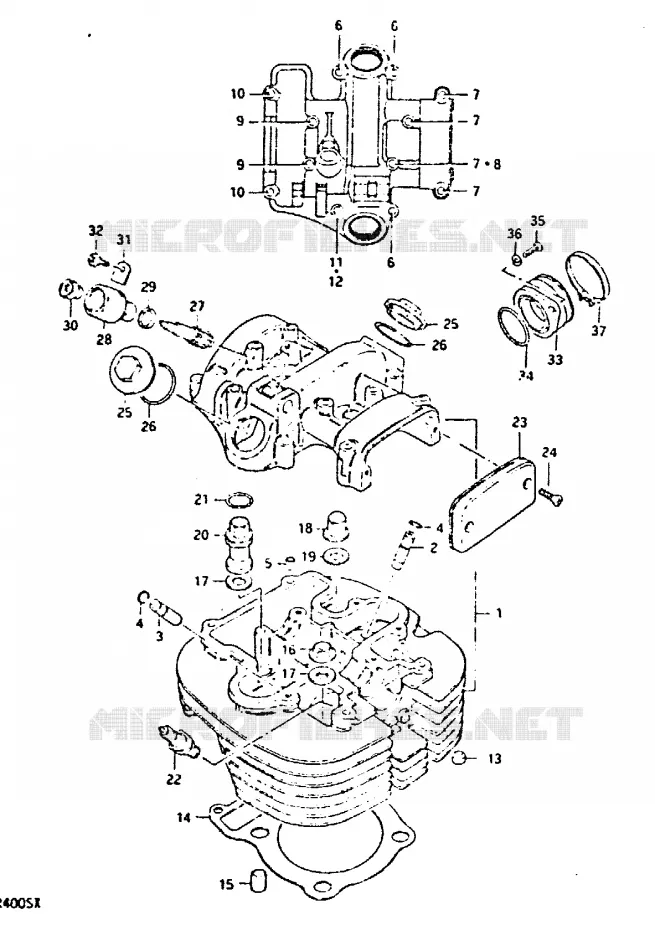

CYLINDER HEAD FOR SUZUKI DR 400 1981

CYLINDER * ENGINE GASKET SET : SEE FIG. 71 (J-8).

DISCONTINUED

11100-37830-000 1110037830000

Not available

DISCONTINUED

11100-37831-000 1110037831000

Not available

GUIDE, INTAKE VALVE

11115-45740-000 1111545740000

$51,97

Unit Price

DISCONTINUE
GUIDE, EXHAUST VALVE

11116-45740-000 1111645740000

Not available

RING, SNAP
RING, VALVE GUIDE

09381-10003-000 0938110003000

$6,97

Unit Price

PIN(8X11)
PIN

09206-08001-000 0920608001000

$2,97

Unit Price

BOLT

01517-06358-000

01550-06357-000

$4,97

Unit Price

BOLT

01517-06508-000

01550-06503-000

$3,97

Unit Price

BOLT (6*55)

01517-06558-000 0151706558000

Not available

BOLT

01517-06658-000

01550-06657-000

$6,97

Unit Price

BOLT CYL HEAD COVER
BOLT (6*125)

09103-06033-000 0910306033000

$6,97

Unit Price

DISCONTINUED

09103-06036-000 0910306036000

Not available

BOLT

01517-06608-000

01550-0660A-000

$4,97

Unit Price

WASHER

09160-06009-000 0916006009000

Not available

PAD, CYLINDER RUBBER(N1)

11252-28000-000

11252-13630-000

$4,97

Unit Price

DISCONTINUE
GASKET

11141-37101-000 1114137101000

Not available

09206-13001-000

04211-13189-000

$3,97

Unit Price

NUT

08316-16108-000

08316-1010B-000

$4,97

Unit Price

NUT

09159-10016-000 0915910016000

$3,97

Unit Price

WASHER

09160-10039-000 0916010039000

$3,97

Unit Price

CYLINDER HEAD NUT
NUT

09159-10026-000 0915910026000

$9,97

Unit Price

GASKET

09168-10019-000 0916810019000

Not available

SEAL NUT

11145-32400-000 1114532400000

Not available

SEAL NUT O RING
O RING

09280-18004-000 0928018004000

$8,97

Unit Price

COVER, CONTACT BREAKER

11174-32410-000 1117432410000

Not available

.SCREW

02132-05168-000 0213205168000

Not available

CAP, INSPECTION

11175-32400-000

11175-42A00-000

$18,97

Unit Price

O RING, D:3 ID 29.5
O RING

09280-30001-000 0928030001000

$2,97

Unit Price

DISCONTINUED

26431-47002-000 2643147002000

Not available

SLEEVE

26441-45000-000 2644145000000

Not available

BAND, DRIVEN GEAR SEAL
SEAL BAND

26451-45000-000 2645145000000

$7,97

Unit Price

TACHO DRVN OIL SEAL
OIL SEAL

09289-05002-000 0928905002000

$16,97

Unit Price

PLATE, TACH DRIVE GEAR SLEEVE
PLATE

26449-33000-000 2644933000000

$7,97

Unit Price

LOCK PLATE SCREW
SCREW

09128-05101-000 0912805101000

$1,97

Unit Price

DISCONTINUE
PIPE, INTAKE

13110-32400-000

Not available

O RING

09280-40003-000

09280-40020-000

$7,97

Unit Price

.SCREW

02112-06168-000 0211206168000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

CLAMP

09402-54303-000 0940254303000

$6,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki of DR. Let us know if you have any questions.
