Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

MASTER CYLINDER

FRONT BRAKE HOSE (MODEL X) FOR SUZUKI GSX 400 1980

FRONT BRAKE HOSE (MODEL Z)

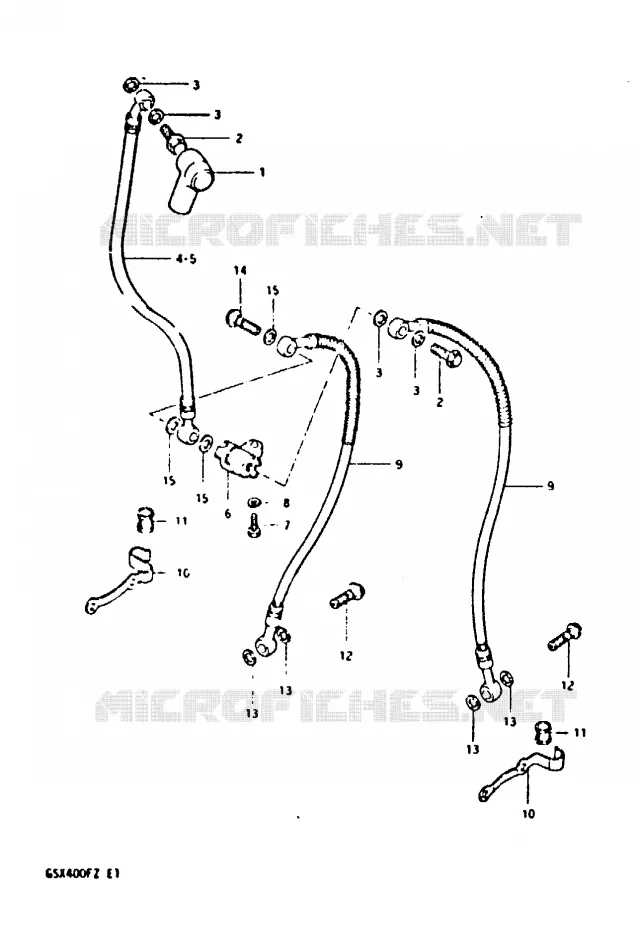

FRONT BRAKE HOSE (MODEL X) Suzuki MOTO 400 GSX 1980 GSX400FT
1
BOOT, MASTER CYLINDER
BOOT, MASTER CYLINDER

59711-49001-000   5971149001000

5971149001000

Unit Price

2
UNION

09360-10007-000  

09360-10061-000
 0936010007000

Unit Price

3
WASHER FIG.84 (J-15) : GSX1100Z/D/XD

09161-10005-000   0916110005000

0916110005000
Not available
4
HOSE, BRAKE NO.1 (FOR NEUTRAL HANDLEBAR)

59480-33201-000   5948033201000

5948033201000
Not available
5
HOSE, BRAKE NO.1 (FOR FLAT HANDLEBAR)

59480-45622-000   5948045622000

5948045622000
Not available
6
JOINT, BRAKE HOSE

59491-45000-000   5949145000000

5949145000000
Not available
7
BOLT, ADJUSTER

01107-06208-000   0110706208000

0110706208000
Not available
8
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
9
DISCONTINUE
HOSE, BRAKE NO.2

59240-44001-000   5924044001000

5924044001000
Not available
10
DISCONTINUE
CLAMP

59268-49001-000   5926849001000

5926849001000
Not available
11
DISCONTINUE<br />BUSHING
DISCONTINUE
BUSHING

59244-49000-000   5924449000000

5924449000000
Not available
12
UNION

09360-10007-000  

09360-10061-000
 0936010007000

Unit Price

13
WASHER FIG.84 (J-15) : GSX1100Z/D/XD

09161-10005-000   0916110005000

0916110005000
Not available
14
BOLT, BRAKE FLUID

09360-10008-000  

09360-10018-000
 0936010008000

Unit Price

15
WASHER FIG.84 (J-15) : GSX1100Z/D/XD

09161-10005-000   0916110005000

0916110005000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT BRAKE HOSE (MODEL X) of your Suzuki GSX 400 FT of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 400 GSX 1980

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 GSX 1980

Select your Suzuki 1980 model

400 GSX 1980 GSX400FT

GSX 400 FT

Suzuki GSX

Displacement: 400 cc
Year: 1980
Model code GSX400FT
