Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME FOR SUZUKI GSX 400 1980

FOOTREST

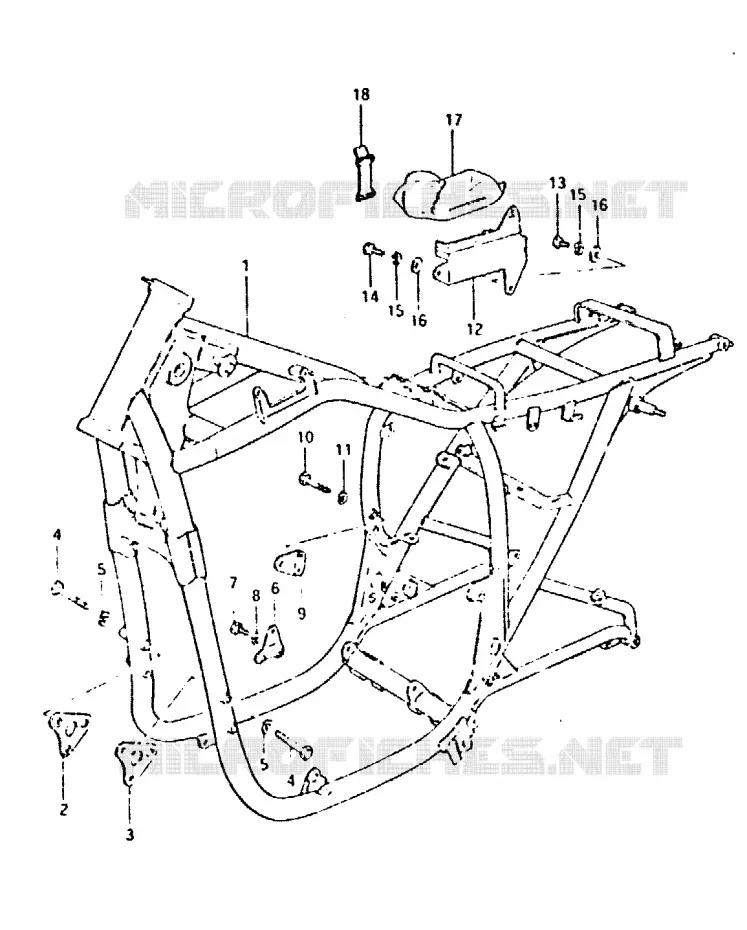

FRAME Suzuki MOTO 400 GSX 1980 GSX400LX(T/X)
1
DISCONTINUED

41100-44210-019   4110044210019

4110044210019
Not available
2
PLATE, NO. 1 RH (BLACK)

41930-44000-019   4193044000019

4193044000019
Not available
3
PLATE, NO. 1 LH (BLACK)

41940-44000-019   4194044000019

4194044000019
Not available
4
BOLT

01107-08608-000  

01500-0860B-000
 0110708608000

Unit Price

5
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

6
PLATE, NO. 2 RH (BLACK)

41920-44100-019   4192044100019

4192044100019
Not available
7
BOLT, UPPER

01107-08168-000   0110708168000

0110708168000
Not available
8
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

9
PLATE, NO. 4 RH (BLACK)

41910-44000-019   4191044000019

4191044000019
Not available
10
BOLT

01107-08458-000  

01500-08453-000
 0110708458000

Unit Price

11
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

12
DISCONTINUE
HOLDER, TOOL

41551-44100-000   4155144100000

4155144100000
Not available
13
SCREW

02112-06128-000  

02112-06127-000
 0211206128000

Unit Price

14
.SCREW

02112-06168-000   0211206168000

0211206168000
Not available
15
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
16
WASHER

08322-21068-000   0832221068000

0832221068000
Not available
18
BAND
BAND

09462-00072-000  

09462-00094-000
 0946200072000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki GSX 400 L of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 400 GSX 1980

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 GSX 1980

Select your Suzuki 1980 model

400 GSX 1980 GSX400LX(T/X)

GSX 400 L

Suzuki GSX

Displacement: 400 cc
Year: 1980
Model code GSX400LX(T / X)
