FRAME FOR SUZUKI GSX 400 1981

FOOTREST

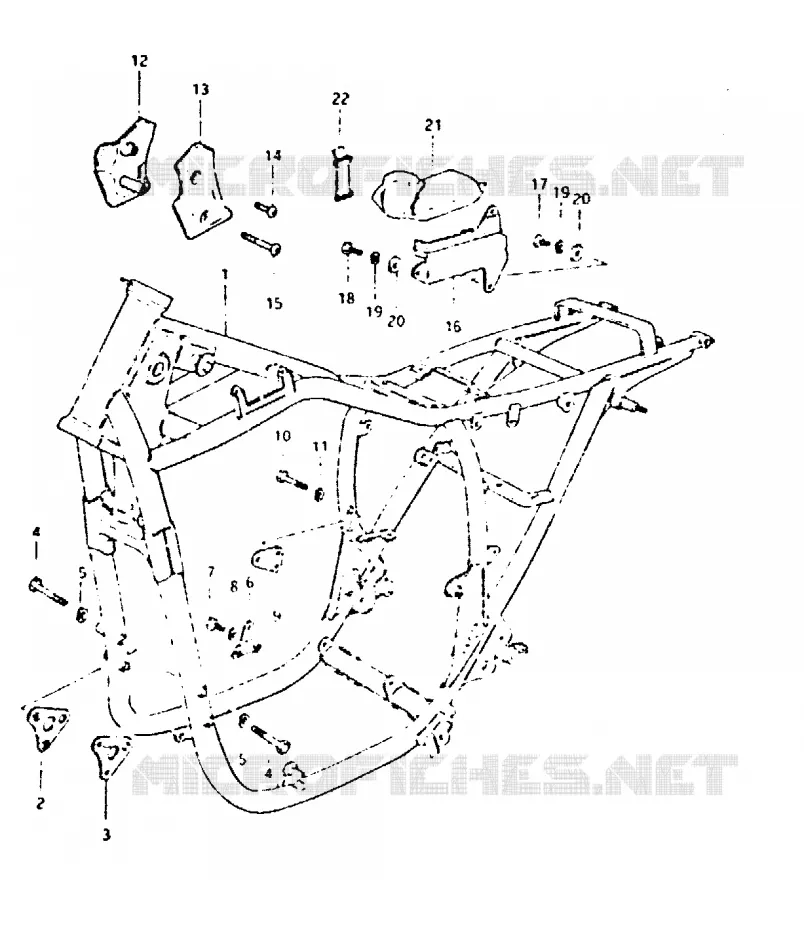

FRAME Suzuki MOTO 400 GSX 1981 GSX400TX
1
DISCONTINUED

41100-44300-019   4110044300019

4110044300019
Not available
2
PLATE, NO. 1 RH (BLACK)

41930-44000-019   4193044000019

4193044000019
Not available
3
PLATE, NO. 1 LH (BLACK)

41940-44000-019   4194044000019

4194044000019
Not available
4
BOLT

01107-08608-000  

01500-0860B-000
 0110708608000

Unit Price

5
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

6
PLATE, NO. 2 RH (BLACK)

41920-44100-019   4192044100019

4192044100019
Not available
7
BOLT, UPPER

01107-08168-000   0110708168000

0110708168000
Not available
8
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

9
PLATE, NO. 4 RH (BLACK)

41910-44000-019   4191044000019

4191044000019
Not available
10
BOLT

01107-08458-000  

01500-08453-000
 0110708458000

Unit Price

11
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

12
COVER, FRAME HEAD RH

51876-44300-000   5187644300000

5187644300000
Not available
13
COVER, FRAME HEAD LH

51886-44300-000   5188644300000

5188644300000
Not available
14
5X20 CROSS SCREW

02142-05208-000   0214205208000

0214205208000
Not available
15
DISCONTINUED

02142-05458-000   0214205458000

0214205458000
Not available
16
DISCONTINUE
HOLDER, TOOL

41551-44100-000   4155144100000

4155144100000
Not available
17
SCREW

02112-06128-000  

02112-06127-000
 0211206128000

Unit Price

18
SCREW

02112-06208-000  

02112-06207-000
 0211206208000

Unit Price

19
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
20
WASHER

08322-21068-000   0832221068000

0832221068000
Not available
21
DISCONTINUE

09800-06800-000  

0980006800000
Not available
22
BAND
BAND

09462-00072-000  

09462-00094-000
 0946200072000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki GSX 400 T of GSX. Let us know if you have any questions.
