Displacement

Model

Year

Finish line

Parts catalogue

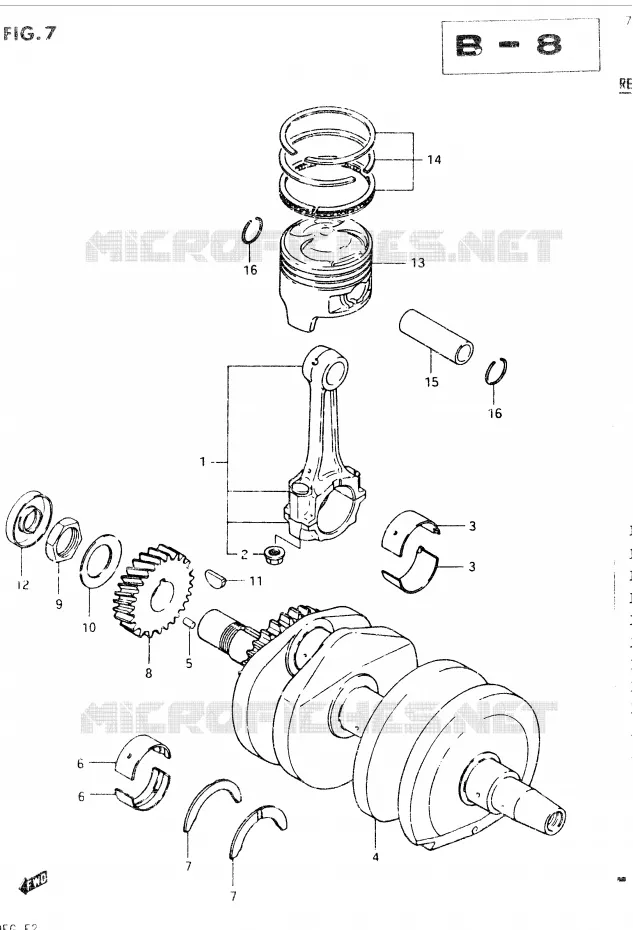

Parts diagram

OIL FILTER - OIL PUMP

CRANKSHAFT FOR SUZUKI GSX 400 1984

CRANKSHAFT BALANCER

CONNECTING ROD ASSY

12160-44100-000

12160-44101-000

$195,97

Unit Price

NUT

09159-08033-000 0915908033000

$4,97

Unit Price

BEARING, CRANK PIN (US:0.25)

12164-44100-025 1216444100025

$23,97

Unit Price

BEARING, CRANK PIN (US:0.5)

12164-44100-050 1216444100050

$23,97

Unit Price

BEARING, CRANK PIN

12164-44110-010

12164-01D01-0A0

$23,97

Unit Price

BEARING, CRANK PIN

12164-44110-020

12164-01D01-0B0

$22,97

Unit Price

BEARING, CRANK PIN

12164-44110-030

12164-01D01-0C0

$23,97

Unit Price

BEARING, CRANK PIN (YELLOW)

12164-44110-040 1216444110040

Not available

DISCONTINUED

12220-44102-000 1222044102000

Not available

ROLLER

06211-03052-000

04221-03059-000

$2,97

Unit Price

BEARING, CRANKSHAFT(GREEN)

12229-44100-010

12229-01D01-0A0

$17,97

Unit Price

BEARING, CRANKSHAFT(BLACK)

12229-44100-020

12229-01D01-0B0

$19,97

Unit Price

BEARING, CRANKSHAFT(BRAWN)

12229-44100-030

12229-01D01-0C0

$20,97

Unit Price

BEARING, CRANKSHAFT(YELLOW)

12229-44100-040

12229-01D01-0D0

$20,97

Unit Price

BEARING, CRANKSHAFT (US:0.25)

12229-44100-025 1222944100025

Not available

BEARING, CRANKSHAFT (US:0.5)

12229-44100-050 1222944100050

Not available

BEARING, CRANK THRUST
BEARING, THRUST

12228-44106-000 1222844106000

$16,97

Unit Price

GEAR, PRIMARY DRIVE NO.28
GEAR, PRIMARY DRIVE (NT:28)

21111-44100-000 2111144100000

$77,97

Unit Price

NUT

09140-24007-000 0914024007000

$6,97

Unit Price

WASHER

09164-25001-000 0916425001000

Not available

5MM WOODRUFF KEY
KEY

08341-31059-000 0834131059000

$4,97

Unit Price

OIL SEAL, CRANKSHAFT
OIL SEAL, RH

09283-22015-000 0928322015000

$17,97

Unit Price

PISTON (STD)

12111-44202-000 1211144202000

Not available

DISCONTINUE

12111-44202-050

Not available

PISTON (OS:1.0)

12111-44202-100 1211144202100

Not available

DISCONTINUE
PISTON RING SET (STD)

12140-31311-000 1214031311000

Not available

DISCONTINUED

12140-31311-050 1214031311050

Not available

PISTON RING SET (OS:1.0)

12140-31311-100 1214031311100

Not available

DISCONTINUE

12151-44201-000

Not available

PISTON PIN CIRCLIP
CIRCLIP

09381-18002-000 0938118002000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of GSX. Let us know if you have any questions.
