Finish line

Parts catalogue

Parts diagram

STARTER MOTOR

GENERATOR FOR SUZUKI GSX 400 1986

BATTERY

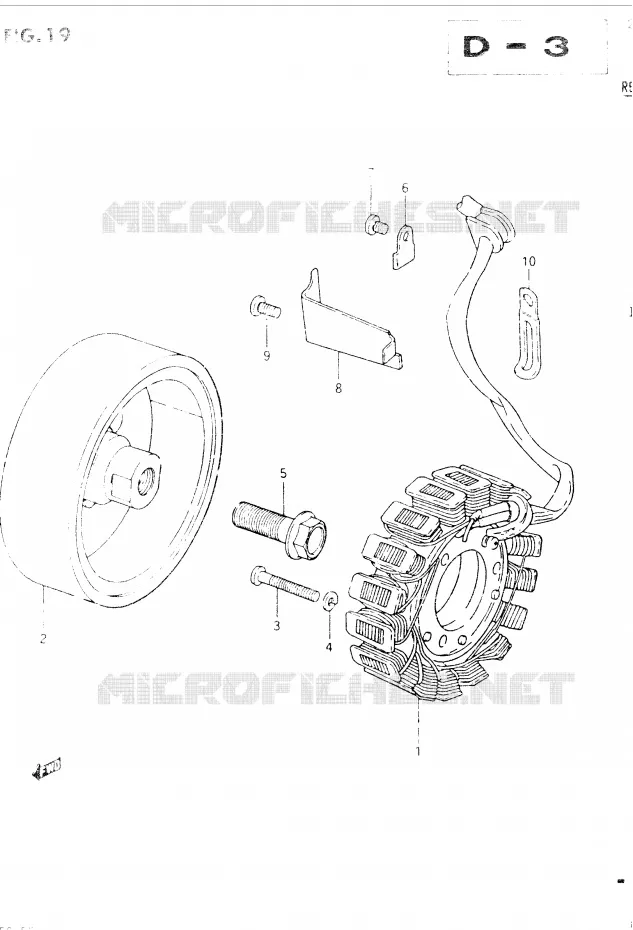

GENERATOR Suzuki MOTO 400 GSX 1986 GSX400EG(E2)
1
DISCONTINUE
STATOR

31401-47030-000   3140147030000

3140147030000
Not available
2
ROTOR

31402-47030-000   3140247030000

3140247030000
Not available
3
SCREW

02112-05308-000  

02112-0530A-000
 0211205308000

Unit Price

4
WASHER, LOCK

08321-21057-000  

08321-0105A-000
 0832121057000

Unit Price

5
BOLT(12X40)<br />BOLT
BOLT(12X40)
BOLT

09103-12004-000   0910312004000

0910312004000

Unit Price

6
CLAMP,GENERATOR LEAD WIRE<br />CLAMP
CLAMP, GENERATOR LEAD WIRE
CLAMP

31497-45000-000   3149745000000

3149745000000

Unit Price

7
SCREW, INTAKE PORT

02112-05088-000   0211205088000

0211205088000
Not available
8
CLAMP, GENERATOR LEAD WIRE
CLAMP

31498-45000-000   3149845000000

3149845000000

Unit Price

9
SCREW FIG.28 (E-5) : GSX1100ESD

02112-06108-000   0211206108000

0211206108000
Not available
10
CLAMP(L:65)

09404-06401-000  

09404-06039-000
 0940406401000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GENERATOR of your Suzuki of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 400 GSX 1986

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 GSX 1986

Select your Suzuki 1986 model

400 GSX 1986 GSX400EG(E2)

Suzuki GSX

Displacement: 400 cc
Year: 1986
Model code GSX400EG(E2)
