CARBURETOR FOR SUZUKI GSX 400 1996

AIR FILTER

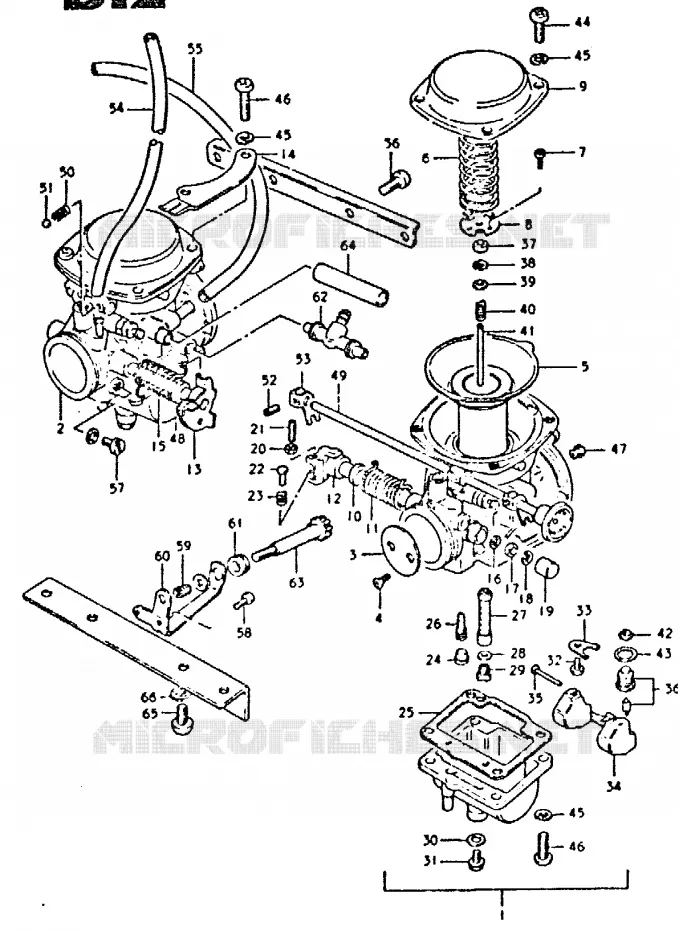

CARBURETOR Suzuki MOTO 400 GSX 1996 GSX400ST(T/X)
1
CARBURETOR, LH

13201-44201-000   1320144201000

1320144201000
Not available
2
CARBURETOR, RH

13202-44201-000   1320244201000

1320244201000
Not available
3
VALVE, THROTTLE (135)

13551-44080-000   1355144080000

1355144080000
Not available
4
SCREW
SCREW

13604-44080-000   1360444080000

1360444080000

Unit Price

5
DIAPHRAGM

13600-44200-000   1360044200000

1360044200000
Not available
6
SPRING

13503-44200-000   1350344200000

1350344200000
Not available
7
.SCREW

02112-03088-000   0211203088000

0211203088000
Not available
8
PLATE

13581-44200-000   1358144200000

1358144200000
Not available
9
DISCONTINUED

13502-44080-000   1350244080000

1350244080000
Not available
10
RING

13387-44200-000   1338744200000

1338744200000
Not available
11
SPRING

13573-44200-000   1357344200000

1357344200000
Not available
12
SHAFT

13550-44200-000   1355044200000

1355044200000
Not available
12
SHAFT

13550-44210-000   1355044210000

1355044210000
Not available
13
SHAFT

13550-44220-000   1355044220000

1355044220000
Not available
14
BRACKET

13621-44200-000   1362144200000

1362144200000
Not available
15
SPRING

13573-44210-000   1357344210000

1357344210000
Not available
16
SEAL,THRO SHAFT
SEAL, THRO SHAFT

13651-51010-000  

13651-51011-000
 1365151010000

Unit Price

17
GASKET,THROTTLE SHAFT<br />GASKET
GASKET, THROTTLE SHAFT
GASKET

13557-47070-000   1355747070000

1355747070000

Unit Price

18
E RING
E RING

13617-44080-000   1361744080000

1361744080000

Unit Price

19
CAP
CAP

13578-47070-000   1357847070000

1357847070000

Unit Price

19
CARBURETOR ASSY

13200-44202-000   1320044202000

1320044202000
Not available
20
NUT
NUT

13607-47070-000   1360747070000

1360747070000

Unit Price

21
DISCONTINUE
SCREW

13605-47070-000   1360547070000

1360547070000
Not available
22
PIN

13563-44110-000   1356344110000

1356344110000
Not available
23
SPRING

13268-44110-000   1326844110000

1326844110000
Not available
24
PLUG,NEEDLE JET<br />PLUG
PLUG, NEEDLE JET
PLUG

13357-44080-000   1335744080000

1335744080000

Unit Price

25
GASKET, FLOAT CHAMBER

13251-44080-000  

13251-44081-H17
 1325144080000

Unit Price

26
JET, PILOT (42.5)

09492-42005-000   0949242005000

0949242005000
Not available
27
DISCONTINUE
JET, NEEDLE (P-1)

09494-00312-000   0949400312000

0949400312000
Not available
28
WASHER

13332-44080-000  

13382-03110-000
 1333244080000

Unit Price

29
DISCONTINUED

09491-23004-000   0949123004000

0949123004000
Not available
30
GASKET
GASKET

13246-44080-000   1324644080000

1324644080000

Unit Price

31
PLUG,DRAIN<br />SCREW, GUIDE
PLUG, DRAIN
SCREW, GUIDE

13247-44080-000   1324744080000

1324744080000

Unit Price

32
SCREW

02112-04068-000  

02112-0406B-000
 0211204068000

Unit Price

33
PLATE
PLATE

13373-39110-000   1337339110000

1337339110000

Unit Price

34
FLOAT

13250-44080-000   1325044080000

1325044080000

Unit Price

35
PIN,FLOAT<br />PIN
PIN, FLOAT
PIN

13254-92311-000   1325492311000

1325492311000

Unit Price

36
..VALVE, NEEDLE

13370-44080-000   1337044080000

1337044080000
Not available
37
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

38
CLIP<br />E RING
CLIP
E RING

13394-10010-000   1339410010000

1339410010000

Unit Price

39
PIN, FLOAT
GASKET

13254-20010-000   1325420010000

1325420010000

Unit Price

40
SPRING,NEEDLE JET<br />SPRING
SPRING, NEEDLE JET
SPRING

13388-47010-000   1338847010000

1338847010000

Unit Price

41
NEEDLE, JET (5D69-4)

13383-44200-000   1338344200000

1338344200000
Not available
42
..FILTER

13376-44080-000   1337644080000

1337644080000
Not available
43
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

44
..SCREW

02111-05158-000   0211105158000

0211105158000
Not available
45
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

46
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

47
DISCONTINUE
REORDER ROBINSONS MOTORS

09493-25001-000   0949325001000

0949325001000
Not available
48
RING

13387-44210-000   1338744210000

1338744210000
Not available
49
SHAFT

13550-44200-000   1355044200000

1355044200000
Not available
50
SPRING
SPRING

13434-43010-000   1343443010000

1343443010000

Unit Price

51
BALL,CARBURETOR<br />STEEL BALL
BALL, CARBURETOR
STEEL BALL

13596-93010-000   1359693010000

1359693010000

Unit Price

52
DISCONTINUE
SCREW

13605-47070-000   1360547070000

1360547070000
Not available
53
LEVER
LEVER

13422-44080-000   1342244080000

1342244080000
Not available
54
.HOSE

13687-18656-000   1368718656000

1368718656000
Not available
55
DISCONTINUED

13687-44200-000   1368744200000

1368744200000
Not available
56
SCREW

02112-05128-000  

02112-05127-000
 0211205128000

Unit Price

57
SCREW

13605-44200-000   1360544200000

1360544200000
Not available
58
SCREW, INTAKE PORT

02112-05088-000   0211205088000

0211205088000
Not available
59
SPRING, THROTTLE SCREW

13271-44220-000  

13268-37420-000
 1327144220000

Unit Price

59
SPRING
SPRING

13271-93011-000   1327193011000

1327193011000

Unit Price

60
BRACKET

13621-44210-000   1362144210000

1362144210000
Not available
61
CAP
CAP

13681-16601-000   1368116601000

1368116601000

Unit Price

62
NIPPLE

13685-11400-000   1368511400000

1368511400000
Not available
63
DISCONTINUE
ADJUSTER

13267-47070-000   1326747070000

1326747070000
Not available
64
HOSE

13687-44210-000   1368744210000

1368744210000
Not available
65
SCREW

02112-06128-000  

02112-06127-000
 0211206128000

Unit Price

66
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of GSX. Let us know if you have any questions.
